MSI X670E GAMING PLUS WIFI Motherboard ATX AMD AM5 Ryzen 9000 8000 7000 DDR5

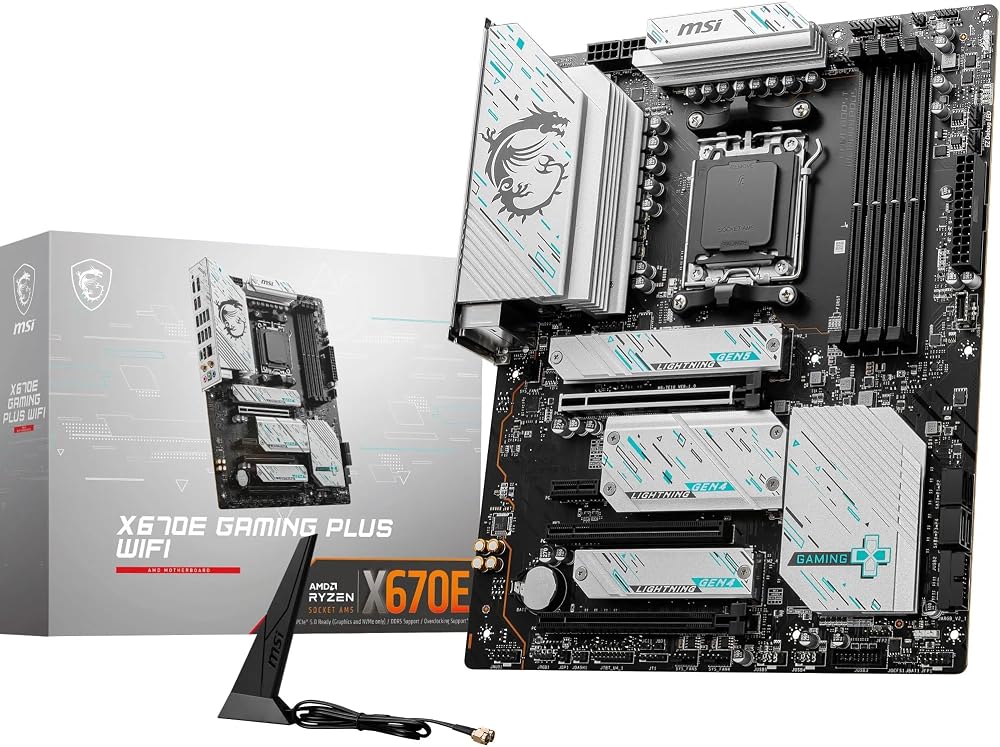

MSI X670E GAMING PLUS WIFI Motherboard

The MSI X670E GAMING PLUS WIFI motherboard is designed for high-performance gaming and content creation, supporting the latest AMD Ryzen processors.

Key Features

• Ryzen 9000 Ready: Built for AMD Ryzen 9000, 8000, and 7000 series processors on the AM5 socket.
• High Performance VRM: Features a 14+2 Duet Rail VRM with 80A SPS for stable power delivery and enhanced CPU performance.
• Integrated Cooling: Equipped with 7W/mK MOSFET thermal pads, an extended heatsink, chipset heatsink, M.2 Shield Frozr, and a dedicated pump-fan cooling header.
• 6-Layer PCB: Server-grade 6-layer PCB with 2 oz. thickened copper for improved thermal performance and reliability.
• DDR5 Memory Boost: Supports DDR5 DIMM slots with isolated circuitry for overclocking, achieving speeds of 7800+ MHz (OC).
• PCIe 5.0 Support: Primary PCIe x16 slot supports PCIe 5.0 with Steel Armor for enhanced durability and up to 128Gbps bandwidth. Secondary PCIe x16 slots support PCIe 4.0.
• Quad M.2 Connectors: Includes 1 x M.2 Gen5 (128Gbps) and 3 x M.2 Gen4 (64Gbps) slots to prevent thermal throttling with high-speed SSDs.
• Wi-Fi 6E Connectivity: Integrated AMD Wi-Fi 6E module with Bluetooth 5.3 for fast wireless networking.
• 2.5Gbps LAN: High-speed wired network connectivity.
• Rich I/O Ports: Includes USB 3.2 Gen 2x2 Type-C (20Gbps), HDMI 2.1, DisplayPort 1.4, and 7.1 HD Audio with Audio Boost.

Specifications

• Chipset: AMD X670
• Socket: AM5
• CPU Support: AMD Ryzen 9000 / 8000 / 7000 Series Processors
• VRM: 14+2 Duet Rail VRM with 80A SPS
• Memory Slots: 4 x DDR5 DIMM
• Max Memory Speed: 7800+ MHz (OC)
• PCIe Slots: 1 x PCIe 5.0 x16, PCIe 4.0 x16 slots
• M.2 Slots: 1 x M.2 Gen5, 3 x M.2 Gen4
• Networking: AMD Wi-Fi 6E, Bluetooth 5.3, 2.5Gbps LAN
• Rear Ports: USB 3.2 Gen 2x2 Type-C, HDMI 2.1, DisplayPort 1.4, 7.1 HD Audio
