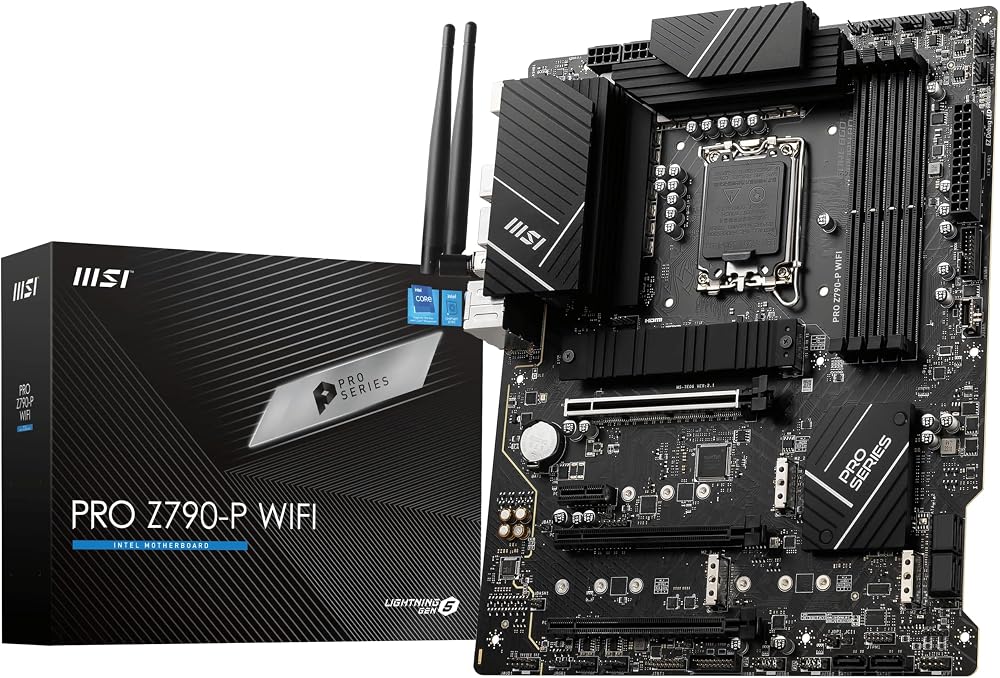

MSI PRO Z790-P WIFI Motherboard ATX LGA1700 14th/13th/12th Gen DDR5 PCIe 5.0

Key Features

• Brand: MSI
• Model: PRO Z790-P WIFI
• Form Factor: ATX
• CPU Socket: LGA 1700
• CPU Support: Intel 14th, 13th & 12th Gen Core Processors
• VRM & Power: 14 Duet Rail Power System (55A, DrMOS) with Core Boost
• Memory: DDR5, Memory Boost with overclocking up to 7000+ MHz (1DPC 1R)
• PCIe: PCIe 5.0 x16 primary slot with PCIe 4.0 x16 secondary
• Storage: 4 x M.2 Gen4 x4 slots with Shield Frozr
• Cooling: Extended VRM heatsink, 7W/mK MOSFET pads, chipset heatsink
• Networking: Intel Wi-Fi 6E, Bluetooth 5.2, 2.5Gbps LAN
• Rear I/O: USB 3.2 Gen 2x2 Type-C, HDMI 2.1, DisplayPort 1.4, 7.1 audio

Overview

The MSI PRO Z790-P WIFI is designed for high-performance gaming and creator systems using Intel 14th, 13th, and 12th Gen Core processors. It features a robust 14 Duet Rail Power System with 55A DrMOS for stable power delivery, enhanced cooling, and extensive PCIe Gen 5.0 support. With four DDR5 memory slots and advanced M.2 storage, this motherboard supports extreme overclocking and rapid data access. Integrated Wi-Fi 6E and 2.5G LAN provide fast wired and wireless connectivity, complemented by premium rear I/O options.

Specifications

• Chipset: Intel Z790
• Memory: 4 x DDR5 DIMM slots, Memory Boost, up to 7000+ MHz (OC)
• Expansion Slots: 1 x PCIe 5.0 x16 (primary, Steel Armor), 1 x PCIe 4.0 x16
• M.2: 4 x M.2 Gen4 slots with Shield Frozr
• Networking: Intel Wi-Fi 6E, Bluetooth 5.2, 2.5G LAN
• Rear I/O: USB 3.2 Gen 2x2 Type-C, HDMI 2.1, DisplayPort 1.4, audio
• Cooling: VRM cooling with 7W/mK pads, extended heatsink
