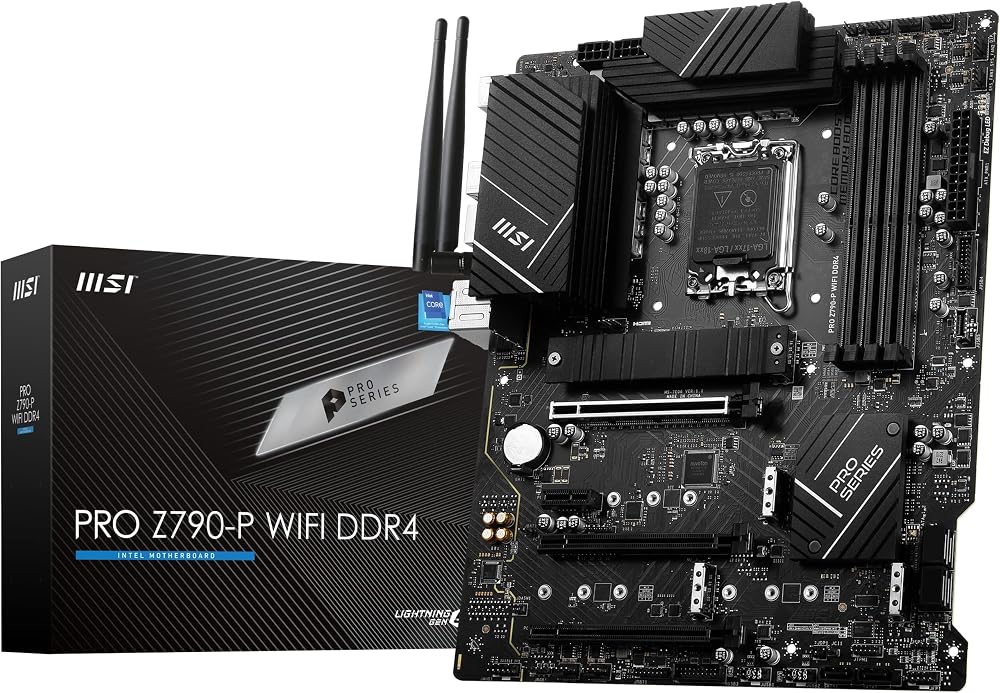

MSI PRO Z790-P WiFi DDR4 LGA 1700 12th 13th Gen Intel PCIe 5.0 Motherboard

The MSI PRO Z790-P WiFi DDR4 motherboard is designed for high-performance computing, supporting Intel processors from the 12th and 13th generations with an LGA 1700 socket. This board is built for stability and efficiency, featuring robust power delivery, advanced cooling, and comprehensive connectivity for demanding users.

Key Features

• Intel Processor Support: Ready for 12th and 13th Generation Intel processors with an LGA 1700 socket, featuring a direct 16+1+1 phase VRM with 105A smart power stage and Core Boost architecture for multi-core overclocking.
• Efficient Cooling: Features VRM cooling with 7W/mK MOSFET thermal pads, additional throttle pads, an enlarged chipset heat sink, and a magnetic, screwless M.2 Shield Frozr design for optimal thermal management.
• DDR4 Memory: Equipped with 4 x DDR4 DIMM slots and insulated memory boost circuit for overclocking, supporting speeds up to 6666+MHz/OC (1DPC 1R).
• PCIe Expansion: Includes 1x PCIe 5.0 x16 SMT slot (128 Gbits) and PCIe 4.0 x16 slots, supporting the latest GPUs and AMD CrossFire technology.
• Advanced Storage: Features 1x M.2 Gen5 slot for ultra-fast SSDs and 4x M.2 Gen4 x4 64 GB slots (supports Intel Optane) with double-sided Shield Frozr to protect SSDs from thermal throttling.
• Connectivity: Integrated Intel Wi-Fi 6E, Bluetooth 5.2, and Intel 2.5Gbits LAN. Ports include 4x USB 3.2 Gen2 Type-A, 2x USB 3.2 Gen2 Type-C, and 7.1 HD Audio with Audio Boost 5 HD (supports S/PDIF).
