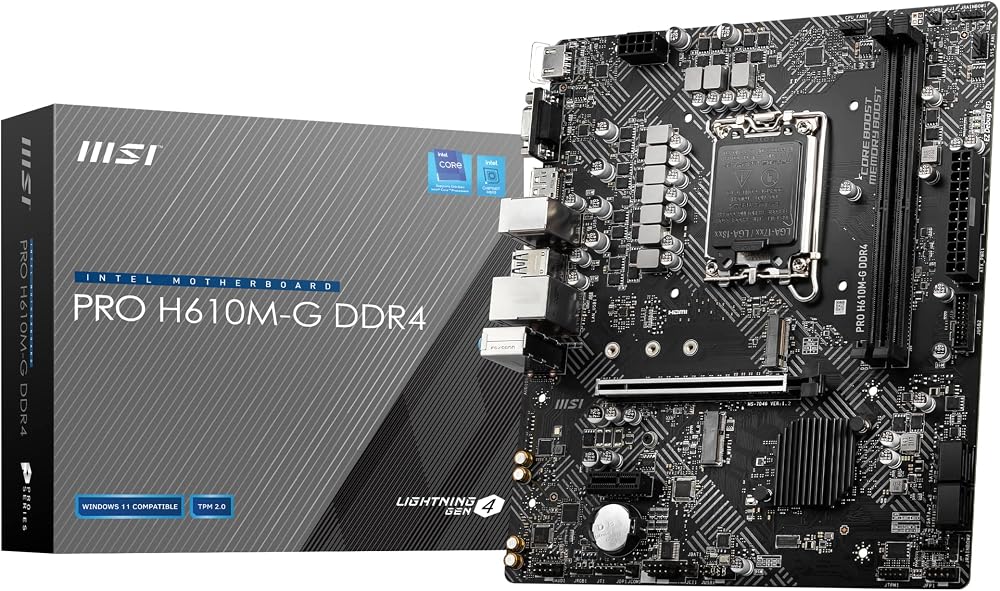

MSI PRO H610M-G DDR4 Micro-ATX Motherboard LGA1700 12th Gen 2xDDR4

Key Features

• Brand: MSI
• Model: PRO H610M-G DDR4
• Form Factor: Micro-ATX
• Socket: LGA 1700 (Intel 12th Gen Core Ready)
• Memory: 2 x DDR4 DIMM slots, up to 3200 MHz
• Expansion: 1 x PCIe 4.0 x16 slot with Steel Armor
• Storage: 1 x M.2 Gen3 x4 (32 Gb/s)
• Networking: Intel I219-V 1G LAN
• Display: HDMI 2.1 & DP 1.4 outputs (requires CPU with integrated graphics)
• USB & Audio: 4 x USB 3.2 Gen 1 Type-A, 7.1 Channel HD Audio with Audio Boost

Overview

The MSI PRO H610M-G DDR4 is a compact, reliability-focused motherboard designed for 12th Gen Intel Core processors. It features Core Boost VRM for stability, smart cooling with active Frozr AI cooling, and a passive chipset heatsink for efficient thermal management. Built for mainstream builds requiring a solid balance of performance and expandability in a micro-ATX form factor.

Specifications

• Chipset: Intel H610
• RAM: 2 x DDR4 DIMM, 3200 MHz supported
• PCIe: 1 x PCIe 4.0 x16
• Storage: 1 x M.2 Gen3 x4, 32 Gb/s
• LAN: Intel I219-V 1G
• Video Outputs: HDMI 2.1, DisplayPort 1.4
• USB: 4 x USB 3.2 Gen 1 Type-A
• Audio: 7.1 CH HD Audio with Audio Boost

Note: HDMI and DP support requires CPU with integrated graphics.
