MSI PRO H610M-E Motherboard Micro-ATX LGA 1700 DDR5 PCIe 4.0 M.2 Gen3

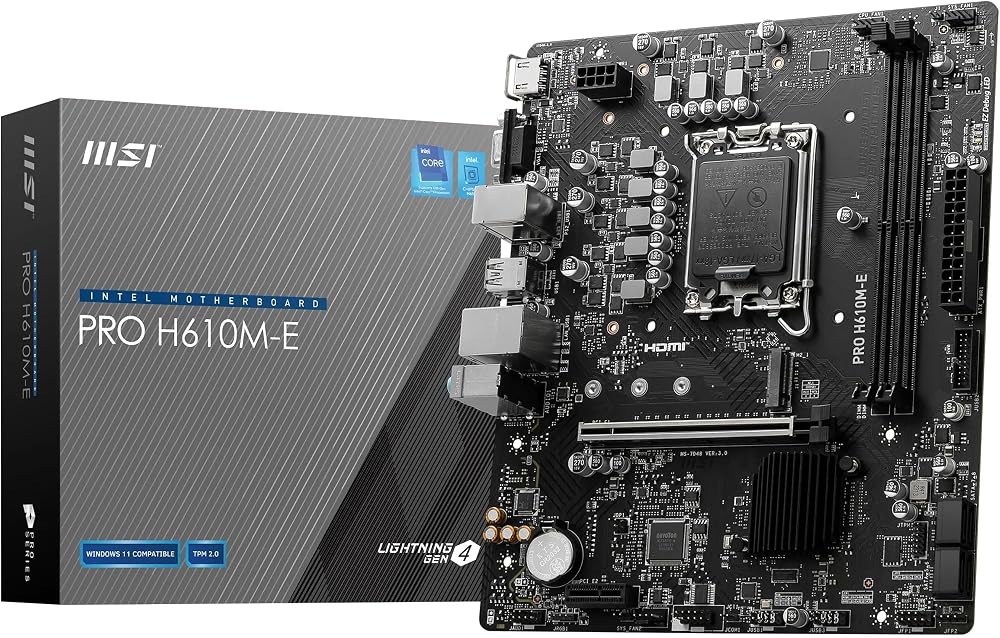

MSI PRO H610M-E Motherboard

This compact Micro-ATX motherboard is designed for Intel 12th and 13th Gen Core processors. It features the Intel H610 chipset with an LGA 1700 socket and utilizes MSI Core Boost technology for enhanced stability and performance.

Key Features

• Processor Support: Intel 12th & 13th Gen Core Processors (LGA 1700 socket)
• Chipset: Intel H610
• Form Factor: Micro-ATX
• Memory: 2 x DDR5 DIMM slots supporting Memory Boost up to 5600MHz (OC)
• Expansion Slots: 1 x PCIe 4.0 x16 slot with Steel Armor
• Storage: 1 x M.2 Gen3 x4 slot (32Gb/s) for NVMe SSDs
• Cooling: Passive chipset heatsink and Frozr AI cooling for automatic fan adjustments based on CPU & GPU temperatures
• Networking: 1Gbps LAN controller
• Rear Ports: USB 3.2 Gen 1 Type-A (5Gbps), HDMI 1.4, VGA, 7.1 HD Audio with Audio Boost

Performance and Connectivity

Experience improved system stability with MSI Core Boost. The motherboard supports DDR5 memory with isolated circuitry for overclocking capabilities. The primary PCIe x16 slot supports PCIe 4.0 for high-speed graphics cards. Maximize your storage performance with the M.2 Gen3 slot, significantly reducing loading times for your NVMe SSDs. Connectivity is robust with 1Gbps LAN, USB 3.2 Gen 1 ports, and integrated display outputs including HDMI 1.4 and VGA.
