MSI MPG Z890 CARBON WIFI Motherboard ATX LGA 1851 Intel Core Ultra DDR5 PCIe

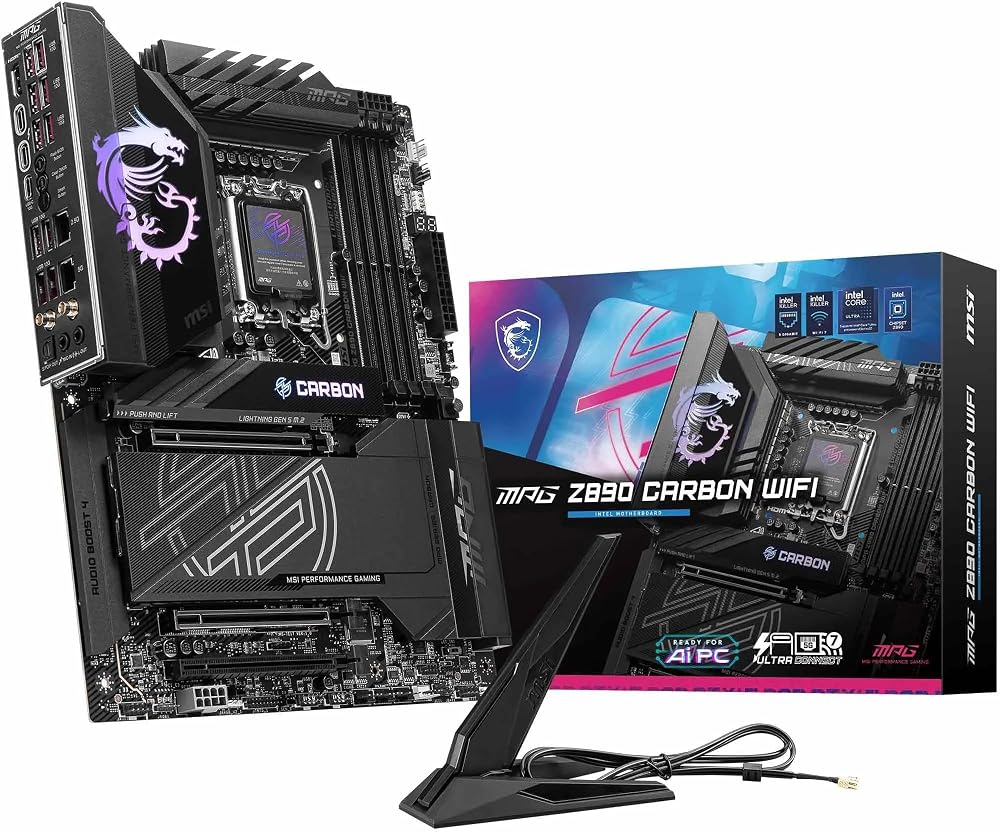

MSI MPG Z890 CARBON WIFI Motherboard

The MSI MPG Z890 CARBON WIFI motherboard is designed for high-performance computing, supporting the latest Intel Core Ultra Processors (Series 2) with the LGA 1851 socket. It features a robust 20+10+1+2 phase power design with 110A SPS VRMs for stable power delivery and Core Boost architecture.

Key Features

• ULTRA POWER+: Direct 20 Phases (110A, SPS) VRM for Intel Z890 chipset.
• FROZR GUARD Cooling: Premium cooling solutions including 7W/mK MOSFET thermal pads, extra choke thermal pads, Extended Heatsink with Heat-pipe, chipset heatsink, and double-sided EZ M.2 Shield Frozr II. Includes a Combo-fan header (3A).
• DDR5 Memory Boost: 4 x DDR5 DIMM SMT slots supporting extreme overclocking speeds up to 9200+ MT/s (OC) (1DPC 1R).
• PCIe 5.0 Support: 2 x PCIe 5.0 x16 SMT slots offering up to 128 GB/s bandwidth with Steel Armor II for cutting-edge graphics cards. Also includes PCIe 4.0 x16 slots.
• Quintuple M.2 Connectors: 1 x M.2 Gen5 x4 (128Gbps) slot and 4 x M.2 Gen4 x4 (64Gbps) slots, all equipped with double-sided Shield Frozr to prevent thermal throttling. Features EZ M.2 Shield Frozr II with EZ M.2 Clip II for easy installation.
• Ultra Connect: Full-speed Wi-Fi 7 module with Bluetooth 5.4, 5G LAN, and 2.5G LAN for high-speed networking.
• Extensive Rear Ports: Includes Thunderbolt 4 Type-C (40Gbps) with display output and high-performance 7.1 USB Audio with Audio Boost 4 (supports S/PDIF output).

Specifications

• Chipset: Intel Z890
• Socket: LGA 1851
• Processor Support: Intel Core Ultra Processors (Series 2)
• Memory Type: DDR5
• Memory Speed: 9200+ MT/s (OC)
• Expansion Slots: 2 x PCIe 5.0 x16, 1 x PCIe 4.0 x16
• Storage Connectors: 1 x M.2 Gen5 x4, 4 x M.2 Gen4 x4
• Networking: Wi-Fi 7, Bluetooth 5.4, 5G LAN, 2.5G LAN
• Rear I/O: Thunderbolt 4 Type-C (40Gbps), USB Audio
