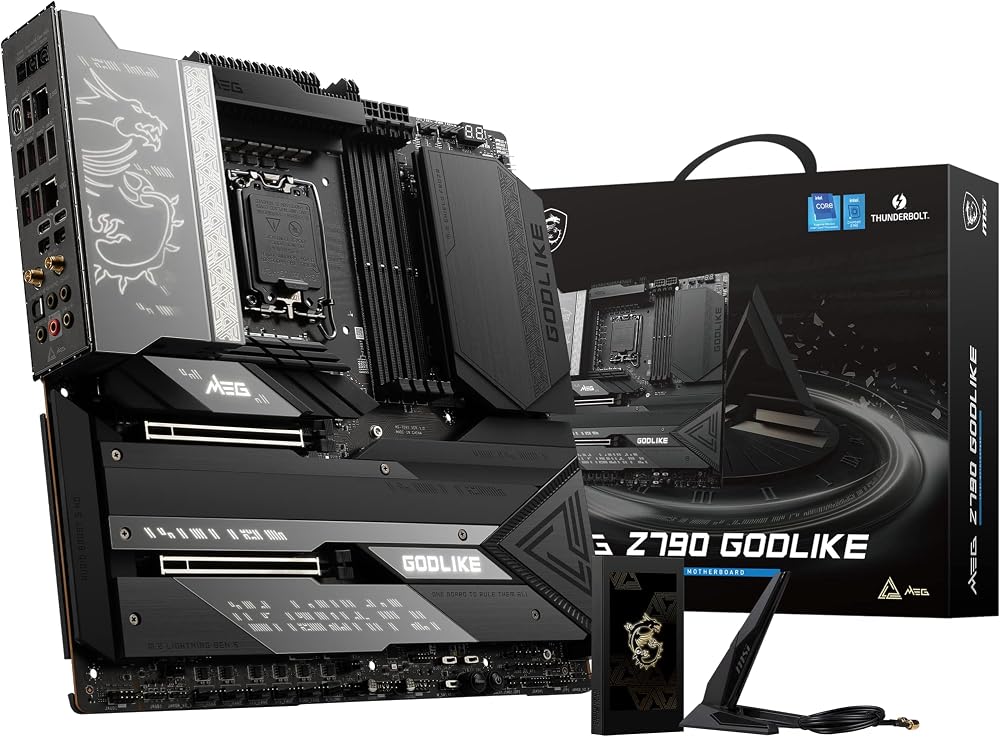

MSI MEG Z790 GODLIKE Motherboard E-ATX LGA 1700 DDR5 PCIe 5.0 Wi-Fi 6E

MSI MEG Z790 GODLIKE Motherboard Overview

Experience extreme performance with the MSI MEG Z790 GODLIKE motherboard. Engineered for Intel Core 12th, 13th, and 14th Gen processors with the LGA 1700 socket, this E-ATX board delivers unparalleled power and cooling for demanding users.

Key Features

• Extreme Performance: Features a 26 DRPS (105A, SPS) VRM system for robust power delivery, enhanced by Core Boost architecture for superior multi-core overclocking potential.
• Ultimate Cooling: Direct touch cross cooling, coated MOS heatsinks, 7WmK MOSFET thermal pads, double-sided M.2 Shield Frozr, and an 8-layer server-grade PCB with 2 oz. thickened copper ensure optimal thermal management.
• DDR5 Memory Support: Four DDR5 DIMM SMT slots with Memory Boost enable extreme overclocking speeds up to 7800 MHz (1DPC 1R).
• PCIe 5.0 Support: Two PCIe 5.0 x16 Steel Armor slots provide maximum bandwidth for your primary graphics card.
• Extensive Connectivity: Includes Wi-Fi 6E with Bluetooth 5.2, 10G2.5G LAN, two Thunderbolt 4 ports (USB Type-C, 40Gbs) on the rear, two front USB 3.2 Gen 2x2 Type-C ports (20Gbs), and high-performance 7.1 USB audio with Audio Boost 5 HD and SPDIF output.
• Storage: Supports 1 x M.2 Gen5 slot and 5 x M.2 Gen4 slots for high-speed storage solutions.

Specifications

• Chipset: Intel Z790
• Socket: LGA 1700
• Processor Support: Intel Core 12th, 13th, and 14th Gen
• Form Factor: E-ATX
• Memory: 4 x DDR5 DIMM SMT slots (up to 7800MHz+ OC)
• Expansion Slots: 2 x PCIe 5.0 x16 Steel Armor slots
• Storage: 1 x M.2 Gen5, 5 x M.2 Gen4
• LAN: 2.5Gbps LAN
• Wireless: Wi-Fi 6E
• Bluetooth: 5.2
• Rear Ports: 2 x Thunderbolt 4 (USB Type-C, 40Gb/s), Audio Jacks, SPDIF Out
• Front Ports: 2 x USB 3.2 Gen 2x2 Type-C (20Gb/s)
