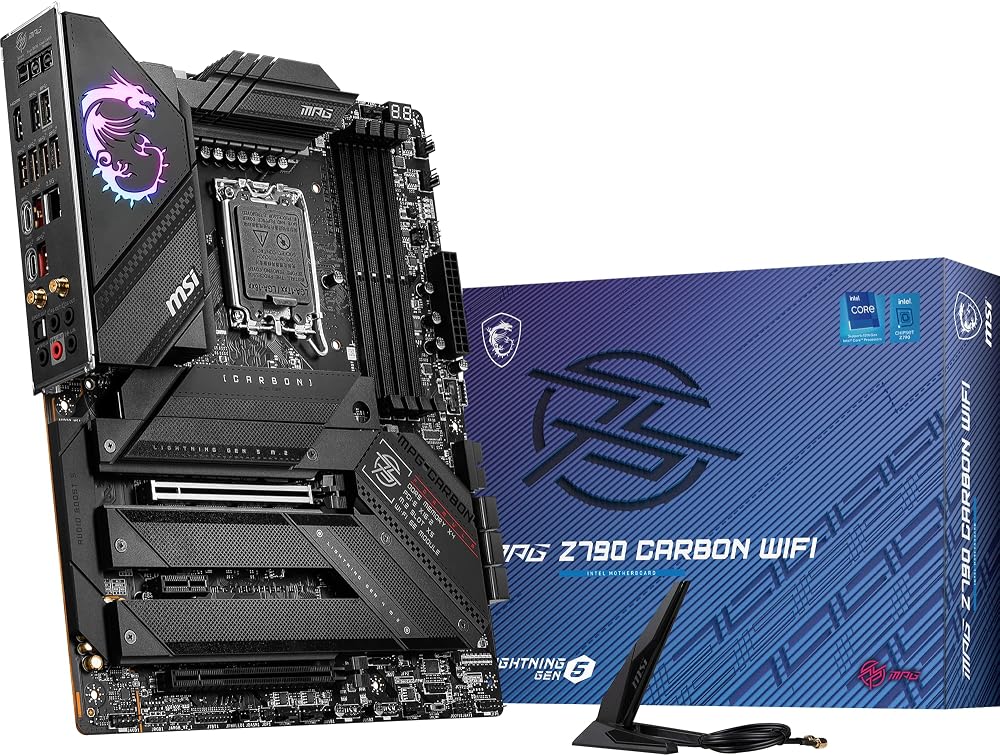

MSI MPG Z790 CARBON WIFI Motherboard LGA 1700 DDR5 PCIe 5.0 Wi-Fi 6E

MSI MPG Z790 CARBON WIFI Motherboard

This high-performance motherboard is designed for the latest Intel 12th and 13th Gen Core processors. It offers robust power delivery, advanced cooling, and cutting-edge connectivity for an exceptional computing experience.

Key Features

• Intel Z790 Chipset for LGA 1700 socket, supporting 12th & 13th Gen Core Processors.
• Direct 19-Phase VRM with 105A SPS and Core Boost architecture for stable, high-power delivery.
• Integrated Cooling System featuring 7W/mK MOSFET thermal pads, extended heatsink with heat-pipe, chipset heatsink, double-sided M.2 Shield Frozr, and an 8-layer server-grade PCB with 2 oz. thickened copper.
• DDR5 Memory Support with 4x DIMM SMT slots enabling extreme overclocking speeds (up to 7600+ MHz).
• PCIe 5.0 x16 Slot for next-generation graphics cards, plus a secondary PCIe 4.0 x16 slot.
• Quintiple M.2 Connectors: 1x M.2 Gen5 x4 slot and 4x M.2 Gen4 x4 slots, all equipped with Shield Frozr for thermal protection.
• Tool-Free Installation with EZ M.2 Clips for convenient storage setup.
• Wi-Fi 6E Connectivity with an Intel Wi-Fi 6E module and Bluetooth 5.2.
• 2.5Gbps LAN for fast wired networking.
• Extensive Rear I/O including USB 3.2 Gen 2x2 Type-C (20Gbps), HDMI 2.1, DisplayPort 1.4, and 7.1 USB High Performance Audio with Audio Boost 5 (supports S/PDIF output).

Specifications

• Chipset: Intel Z790
• CPU Socket: LGA 1700
• Memory Type: DDR5
• Memory Slots: 4x DIMM
• PCIe Slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16
• M.2 Slots: 1x Gen5 x4, 4x Gen4 x4
• Network: Wi-Fi 6E, Bluetooth 5.2, 2.5Gbps LAN
• Rear USB Ports: USB 3.2 Gen 2x2 Type-C (20Gbps) and others
• Video Outputs: HDMI 2.1, DisplayPort 1.4
• Audio: 7.1 USB High Performance Audio with Audio Boost 5, S/PDIF output
