Supermicro X12SDV-4C-SPT8F-O LGA4189 Xeon D-2712T Server Motherboard Micro ATX

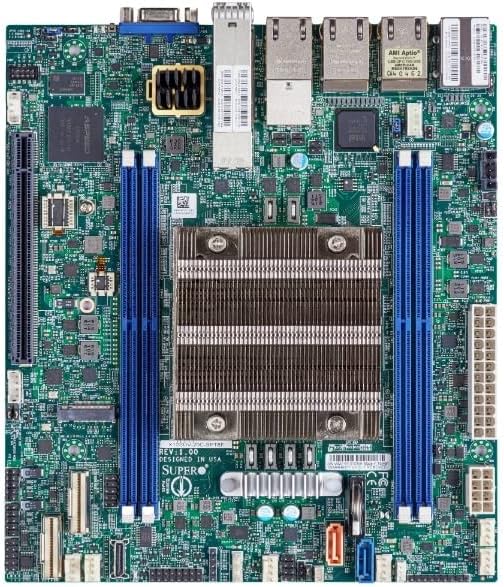

Supermicro X12SDV-4C-SPT8F-O Server Motherboard

This Supermicro X12SDV-4C-SPT8F-O server motherboard features an Intel Xeon Processor D-2712T System on Chip and supports up to 256GB of Registered ECC RDIMM or 512GB of LRDIMM memory. Designed for robust server applications, it offers a variety of expansion and connectivity options.

Key Features

• Processor: Intel Xeon Processor D-2712T (CPU TDP 65W)
• Memory: Up to 256GB Registered ECC RDIMM, DDR4-2667MHz; Up to 512GB LRDIMM, DDR4-2667MHz (4 DIMM slots)
• Expansion Slots: 1 PCIe 4.0 x16
• Storage Connectivity:
  • 2 PCIe 4.0 NVMe x8 SlimSAS Internal Port
  • 1 OCuLink Connector (4 SATA/PCIe 3.0 x4)
  • 1 M.2 M-Key 2242/2280 (SATA/PCIe 3.0 x4)
  • SoC controller for 2 SATA3 (6 Gbps) ports with RAID 0,1
• Networking:
  • Quad 1G RJ45 with Intel I350-AM4
  • Dual 25G SFP28 with Intel SoC
  • Dual 10Gbase-T RJ-45 with Intel Ethernet Controller X550-AT2
• Power Input: 12V DC or ATX Power Input (requires at least 5Vsb/4A PSU)

Specifications

• Brand: Supermicro
• Model: MBD-X12SDV-4C-SPT8F-O
• Form Factor: Micro ATX
• Socket: LGA4189
• Chipset: Intel Xeon Processor D
