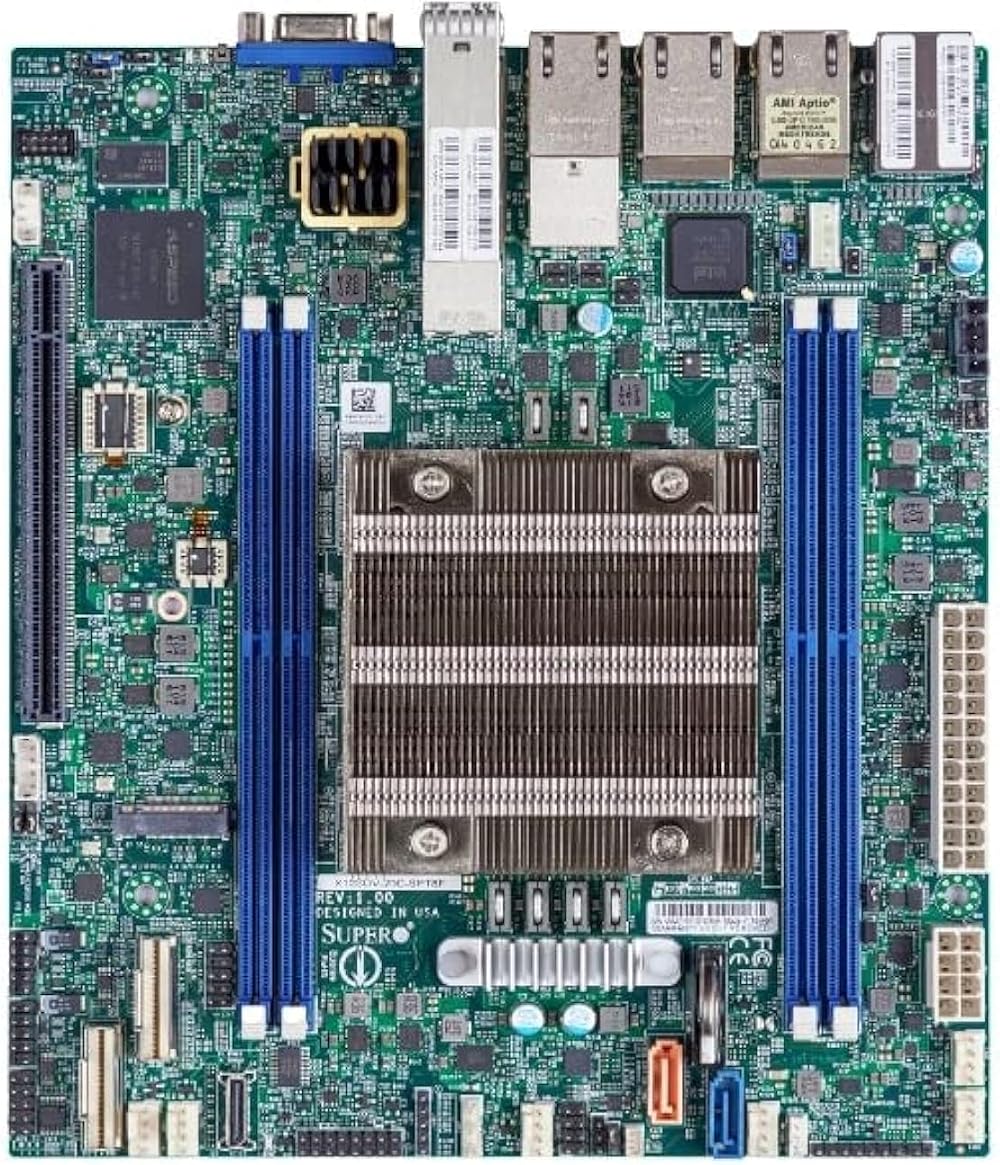

Supermicro MBD-X12SDV-20C-SPT8F-O Micro-ATX Server Motherboard D-2796NT Intel

This listing is for the Supermicro MBD-X12SDV-20C-SPT8F-O Micro-ATX Server Motherboard, featuring an integrated Intel Xeon D-2796NT Processor. Designed for robust server applications, this motherboard offers high performance and extensive connectivity options for demanding workloads.

Key Features

• Integrated Intel Xeon D-2796NT Processor (System on Chip, 120W TDP)
• Supports Intel Quick Assist Technology
• Up to 512GB DDR4-2933MHz LRDIMM or 256GB Registered ECC RDIMM in 4 DIMM slots
• Flexible Storage Options: 1 M.2 M-Key, 2 PCIe 4.0 NVMe x8 SlimSAS, 1 OCuLink (4 SATA/PCIe 3.0 x4), and 6 SATA3 ports
• Advanced Networking: Dual 25G SFP28, Dual 10Gbase-T RJ-45, and Quad 1G RJ45 ports
• 1 PCIe 4.0 x16 slot for expansion
• Micro-ATX Form Factor
• Versatile 12V DC or ATX Power Input

Detailed Specifications

• Processor: Intel® Xeon® Processor D-2796NT (System on Chip)
• CPU TDP: 120W
• Memory Support:
  • Up to 256GB Registered ECC RDIMM, DDR4-2933MHz
  • Up to 512GB LRDIMM, DDR4-2933MHz
  • 4 DIMM slots
• Expansion Slots:
  • 1 PCIe 4.0 x16
• Storage Interfaces:
  • 2 PCIe 4.0 NVMe x8 SlimSAS Internal Port
  • 1 OCuLink Connector (4 SATA/PCIe 3.0 x4)
  • 1 M.2 M-Key 2242/2280 (SATA/PCIe 3.0 x4)
  • SoC controller for up to 6 SATA3 (6 Gbps) ports
• Networking:
  • Quad 1G RJ45 with Intel® I350-AM4
  • Dual 25G SFP28 with Intel SoC
  • Dual 10Gbase-T RJ-45 with Intel® Ethernet Controller X550-AT2
• Power Input: 12V DC or ATX Power Input (Requires at least 5Vsb/4A PSU)
• Form Factor: Micro-ATX
