BROLEO LGA 1151 Motherboard DDR4 M.2 SATA 3.0 H110 mATX 64GB RAM Ready

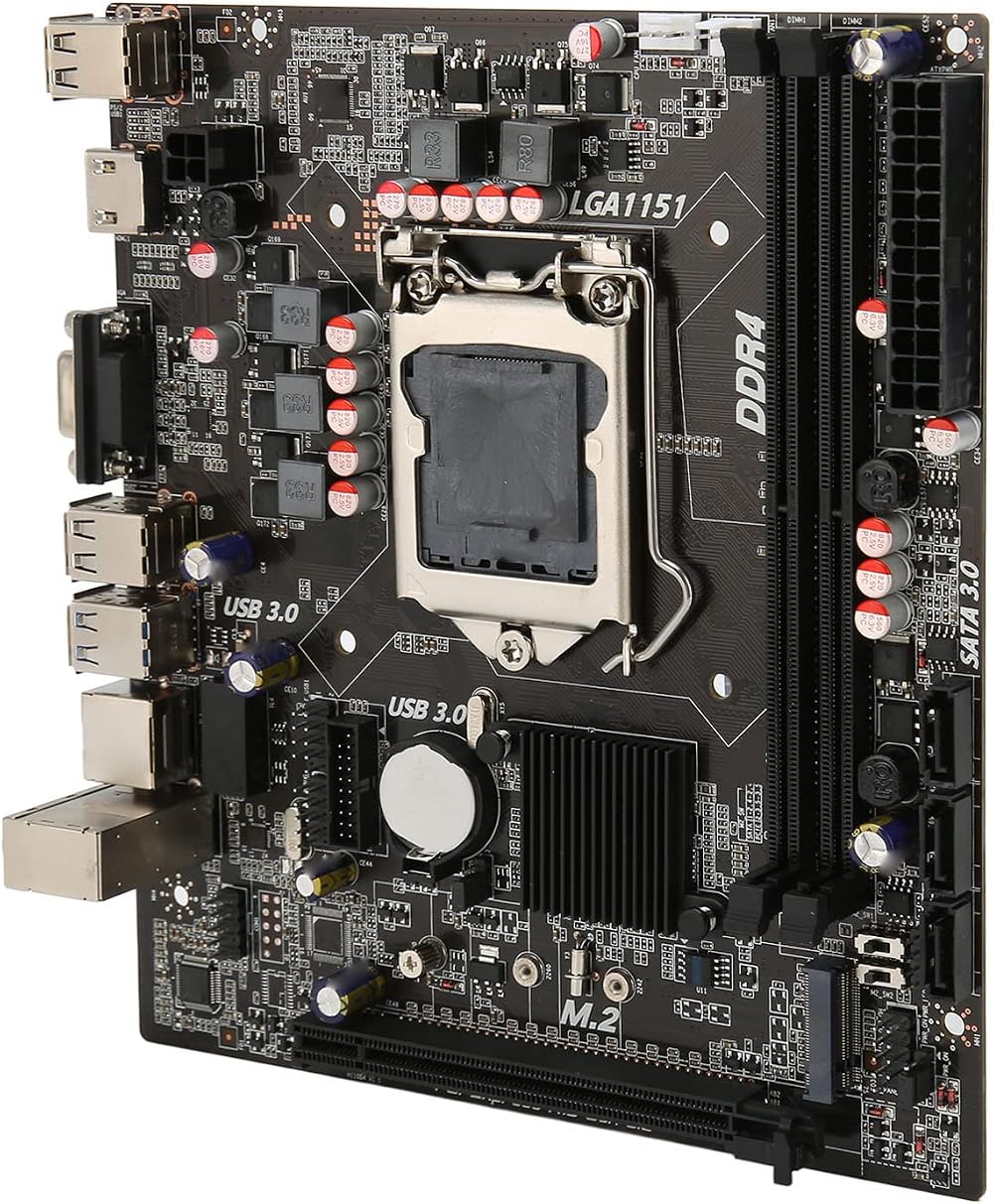

BROLEO H110 Desktop Motherboard

Upgrade your PC with this reliable BROLEO LGA 1151 motherboard, designed for performance and compatibility. Featuring dual-channel DDR4 memory support, a high-speed M.2 interface, and SATA 3.0 connectivity, this motherboard is ideal for building a new system or replacing an old one.

Key Features

• DDR4 OS DIMM: Dual channel support for DDR4 memory, expandable up to 64GB (2 x 32GB).
• 32GB/s Transmission: High-speed M.2 interface supporting 32GB/s transmission for fast storage access.
• SATA 3.0 Interface: Multiple SATA 3.0 ports for broad compatibility and quick read speeds.
• All Solid State Capacitance: Ensures stable performance and extends the motherboard's lifespan.
• Easy Expansion: Equipped with HD Multimedia Interface and VGA outputs. M.2 interface supports both NGFF and NVME protocols.

Specifications

• Brand: BROLEO
• Chipset: H110
• Motherboard Structure: mATX
• Motherboard Size: Approx. 190 x 170 mm / 7.5 x 6.7 in
• CPU Slot Type: LGA 1151
• Network Card Chip: 100M
• Graphics Card Slot: PCI E X16 Gen 3.0
• Compatible Memory Type: 2 x DDR4
• Maximum Memory Capacity: 64GB (2 x 32GB)
• SATA Interface: SATA3.0 x 3
• USB Interface: USB3.0 x 2, USB2.0 x 4
• Sound Adapter: ALC897
• Power Supply Connectors: 24-pin x 1, 4-pin x 1
• Expansion Interface: 1 x HD Multimedia Interface, 1 x VGA, 1 x M.2 (NGFF/NVME)
• BIOS Battery: CR2032 Button Battery (Built-in, 240mAh)

Please ensure all connections are made correctly when installing. If the device does not power on, verify the power supply is connected and functioning normally.
