Intel S5000PSLSASR Server Motherboard Socket J LGA 771 SSI EEB DDR2 32GB

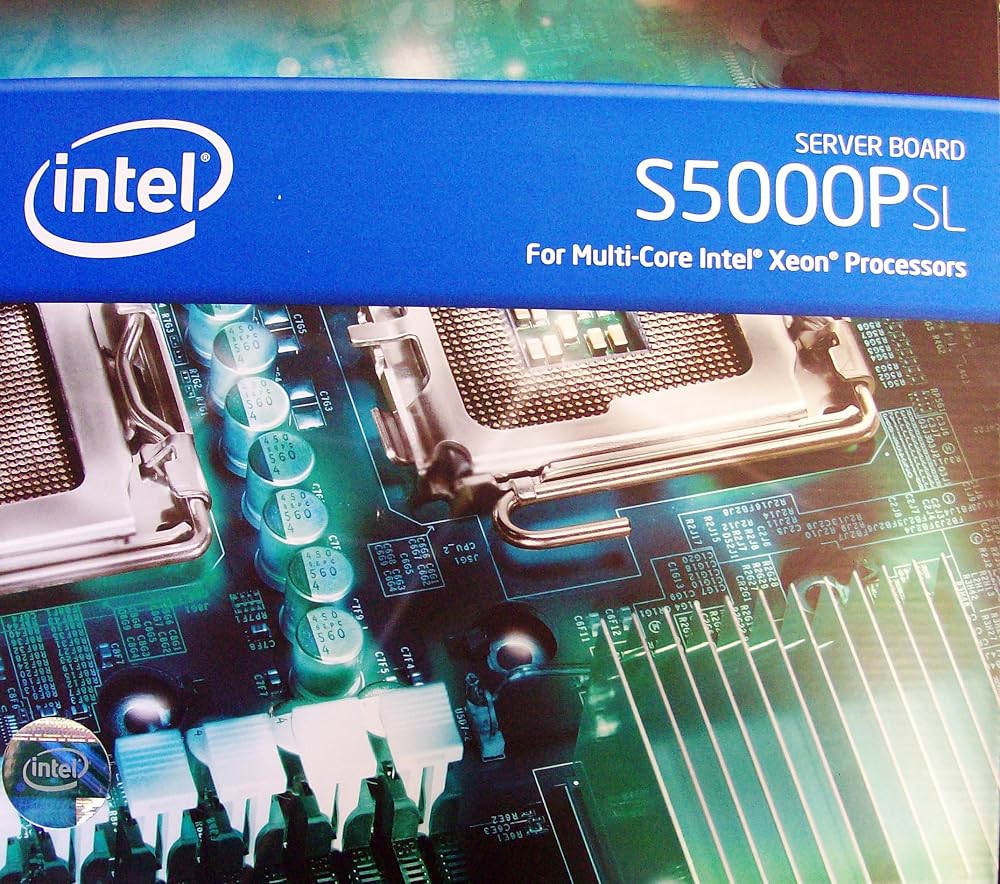

Intel S5000PSLSASR Server Motherboard

This Intel S5000PSLSASR Server Motherboard is built on a powerful processor foundation, offering the performance and features growing businesses demand. It optimizes performance and cost by integrating key features and supports a variety of chassis configurations for maximum flexibility and scalability.

Key Features

• Brand: Intel
• Product Type: Server Motherboard
• Manufacturer Part Number: S5000PSLSASR
• Processor Socket: Socket J LGA-771
• Total Processor Support: 2 Processors
• Chipset Manufacturer: Intel
• Chipset Model: 5000P
• Front Side Bus (FSB): 1333 MHz, 1066 MHz, 667 MHz
• Memory Technology: DDR2 SDRAM
• Maximum Memory: 32 GB
• Number of Memory Slots: 8
• Onboard Video: Yes (16 MB Graphics Controller Memory)
• Gigabit Ethernet: Yes (2 x RJ-45 Network Ports)
• IDE Controller: Yes (1 x IDE Interface)
• SATA Controller: Yes (2 x SATA Interfaces)
• SAS Controller: Yes (4 x SAS Interfaces)
• Expansion Slots: 2 x PCI Express x8, 2 x PCI Express x4, 2 x PCI-X
• Back Panel Interfaces: 1 x HD-15 VGA, 2 x RJ-45 Network, 2 x mini-DIN, 1 x DB-9 RS-232 Serial, 4 x Type A USB 2.0
• Dimensions: 305 mm Width x 330 mm Depth
