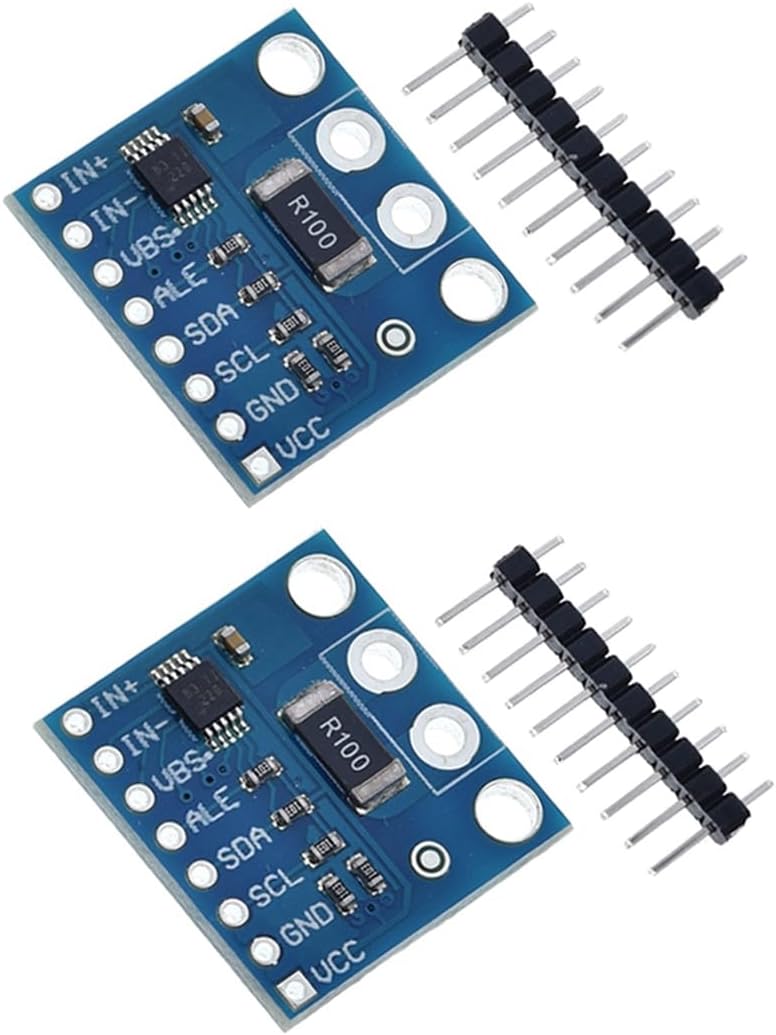

Hailege INA226 I2C Current Voltage Power Monitor Sensor w/ Alarm 2pcs

Hailege INA226 I2C Current Voltage Power Monitor Sensor with Alarm Function

This listing includes two Hailege INA226 sensors designed for bi-directional current monitoring. The INA226 is a high-accuracy current shunt and power monitor featuring an I2C compatible interface. It measures both shunt voltage drop and bus supply voltage, allowing for direct readouts of current in amperes and power in watts through programmable calibration, conversion times, and averaging.

Key Features

• Monitors Current, Voltage, and Power
• High Accuracy: 0.1% Gain Error (Max), 10 µV Offset (Max)
• Configurable Averaging Options
• 16 Programmable I2C Addresses
• Operates from 2.7-V to 5.5-V Power Supply
• Senses current on common-mode bus voltages from 0 V to 36 V
• Alarm Function Output
• 10-Pin DGS (VSSOP) Package

Specifications

• Voltage Range: 0-36 V
• Power Supply: 2.7-V to 5.5-V
• Supply Current: 330 µA (typical)
• Operating Temperature: 0°C to 125°C
• Interface: I2C/SMBUS compatible
• Package Type: 10-Pin DGS (VSSOP)

Pinout

• VBUS: Bus voltage input
• SDA/SCL: I2C bus data and clock signal lines
• ALERT: Multi-function alarm output
• A0/A1: I2C address lines
• IN+/IN-: Non-inverting analog input, inverting analog input

Package Includes:

• 2 * Hailege INA226 I2C Bi-Directional Current Monitoring Sensors
