Podazz GY-31 TCS230 TCS3200 Color Sensor Module for Arduino Color Recognition

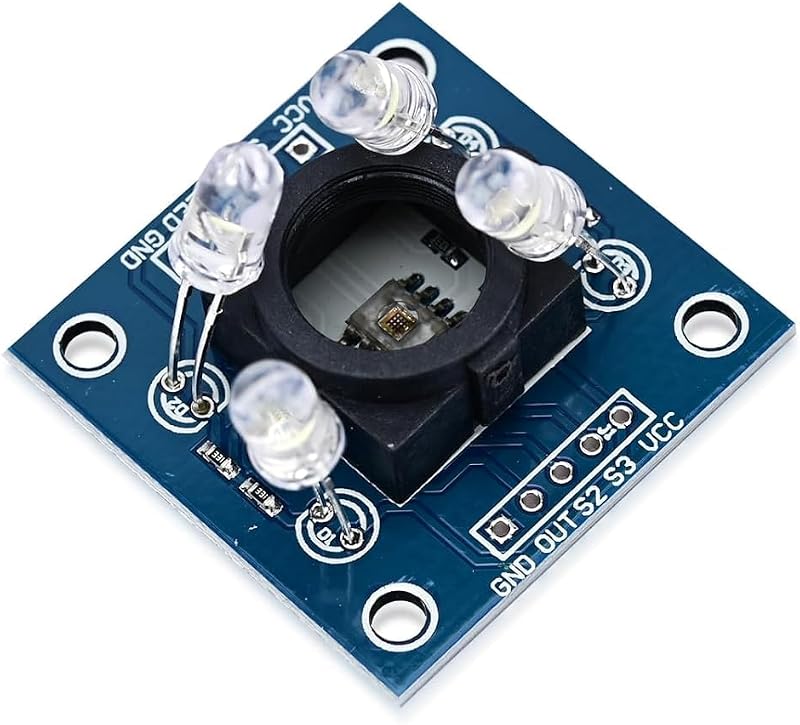

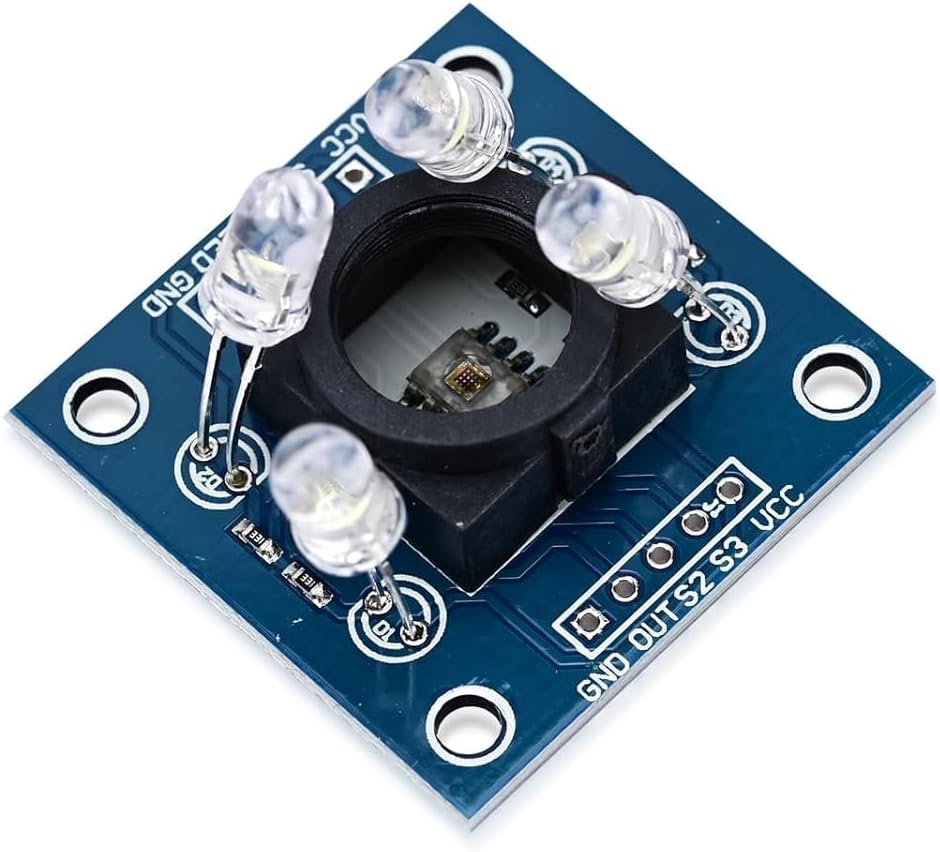

Podazz GY-31 TCS230 TCS3200 Color Sensor Module

This Podazz GY-31 module features the TCS230/TCS3200 color sensor, designed for accurate color recognition. It integrates 64 photodiodes on a single chip, with photodiodes featuring red, green, blue, and no filters for comprehensive light information capture. The crosswise arrangement of these photodiodes minimizes uneven incident light radiation, enhancing recognition accuracy. Color position errors are eliminated by parallel connection and even distribution of photodiodes of the same color.

Key Features

• TCS230/TCS3200 Color Sensor: High-accuracy color recognition capabilities.
• Integrated Photodiodes: 64 photodiodes with red, green, blue, and clear filters.
• Programmable Filters: Dynamic filter selection via two programmable pins.
• Wide Output Frequency: Output frequency range from 2 Hz to 500 kHz.
• Selectable Scaling Factors: User-selectable output scaling of 100%, 20%, or 2%.
• Power-Down Mode: Energy-saving power-down mode available.
• Adaptable Measurement: Output scaling adapts to different measurement ranges.
• Arduino Compatible: Ideal for use with Arduino and other microcontrollers.

Specifications

• Brand: Podazz
• Model: GY-31
• Sensor Chip: TCS230 / TCS3200
• Output Frequency: 2 Hz to 500 kHz
• Scaling Factors: 100%, 20%, 2%, Power-down
• Package: 8-pin SOIC surface-mount (on chip)
