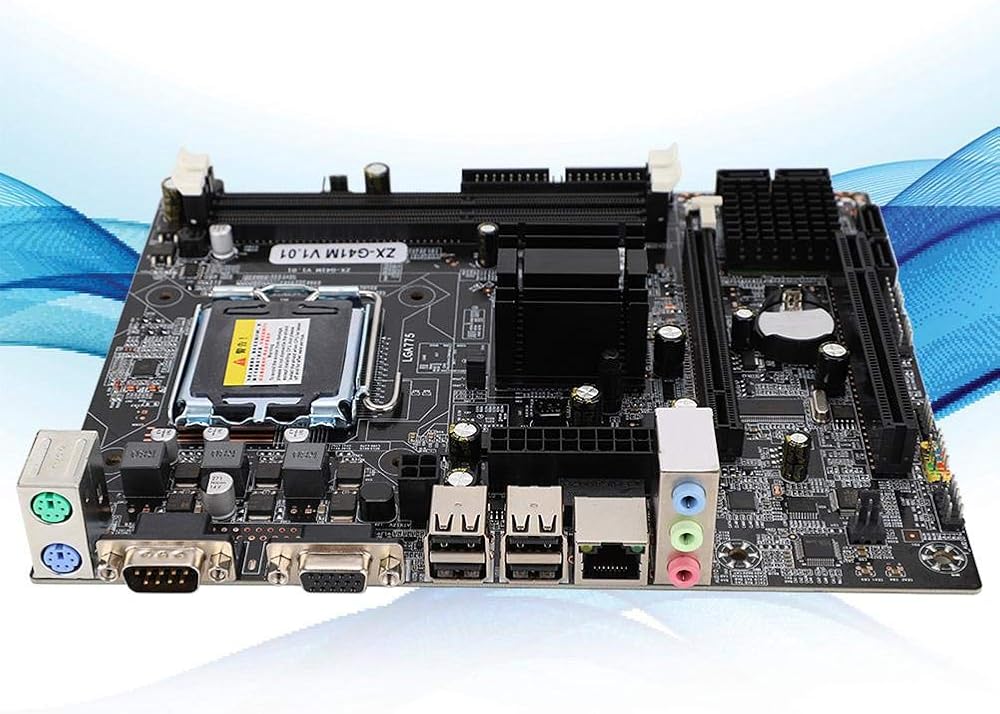

ASHATA LGA775 DDR3 Motherboard 1600/1333MHz SATA2.0 VGA Desktop Mainboard

Overview

This ASHATA computer motherboard is designed for Intel LGA775 processors and supports DDR3 memory up to 1600/1333MHz. It features integrated graphics, sound, and network capabilities, making it a versatile option for desktop builds.

Key Features

• Brand: ASHATA
• CPU Socket: LGA 775
• CPU Support: Intel Xeon 775 series processors
• Memory Type: DDR3
• Memory Speed: 1066/1333MHz
• Memory Slots: 2 x DDR3 DIMM
• Chipset: For Intel G41 (or compatible like Q45)
• Graphics Output: VGA
• Storage Interface: 4 x SATA2.0
• Expansion Slots: 1 x PCI Ex16, 2 x PCI
• Network: Integrated 100M NIC
• Audio: Integrated 6-channel audio chip

Specifications

• Motherboard Chip: Integrated graphics, sound card, network card
• Main Chipset: For Intel g41 (partially G41/Q45, etc.)
• Audio Chip: Integrated 6 channel audio chip
• NIC Chip: Integrated RTL8105E 100M NIC
• Processor Specifications: CPU socket LGA 775, CPU type for Xeon 775 series
• Memory Specification: Memory type DDR3 1066/1333MHz, memory slot 2xDDR3 DIMM
• Expansion Slot: 1xPCI Ex16 graphics card slot, 2xPCI slot, 2xUSB2.0 slot, 4xSATA2.0 interface, 1xIDE parallel port slot
• I/O Interface: PS/2 interface, PS/2 mouse and keyboard universal interface, 1xRJ45 network interface, 1xCOM parallel port, 4xUSB2.0 interface, audio interface
• Other Parameters: A 4 pin power connector, a 24 pin power connector, three phase power mode

Package Contents

• 1 x Motherboard

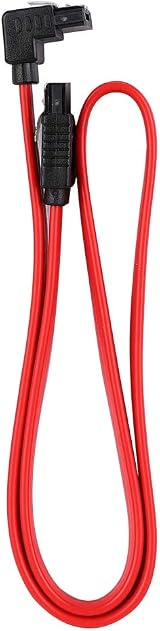

• 1 x SATA Cable

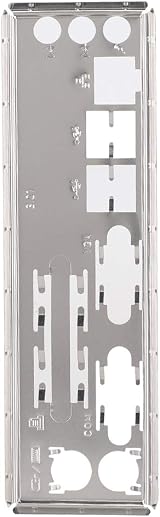

• 1 x Bracket

Important Note

The color of the motherboard's slot base may vary between production batches. This does not affect product functionality as the product is continuously optimized and upgraded.
