Yosoo Health Gear B75 Motherboard LGA 1155 DDR3 USB3.0 SATA3 Desktop Mainboard

Product Overview

This Yosoo Health Gear B75 motherboard is designed for Intel LGA 1155 socket processors, offering a robust platform for your desktop computer build. It supports DDR3 memory and features essential connectivity options including USB 3.0 and SATA 3.0.

Key Features

• Chipset: Intel B75 series
• CPU Socket: LGA 1155 (Supports i3, i5, i7 series processors)
• Memory Type: DDR3 1066/1333/1600 MHz Desktop Memory
• Memory Slots: 2 x DDR3 DIMMs
• Maximum Memory Support: 16GB (2 x 8GB)
• Graphics Card Slot: 1 x PCI-Ex16
• Expansion Slot: 1 x PCI-Ex1
• USB Ports: 2 x USB 2.0, 2 x USB 3.0
• SATA Ports: 3 x SATA 2.0, 1 x SATA 3.0
• Network Interface: 1 x RJ45 (Built-in RTL8105E NIC)
• Audio: Built-in 6-channel audio chip
• Power Connectors: 4-pin power connector, 24-pin power connector

Specifications

• Size: Approximately 19 x 17 x 4 cm
• Weight: Approximately 542g

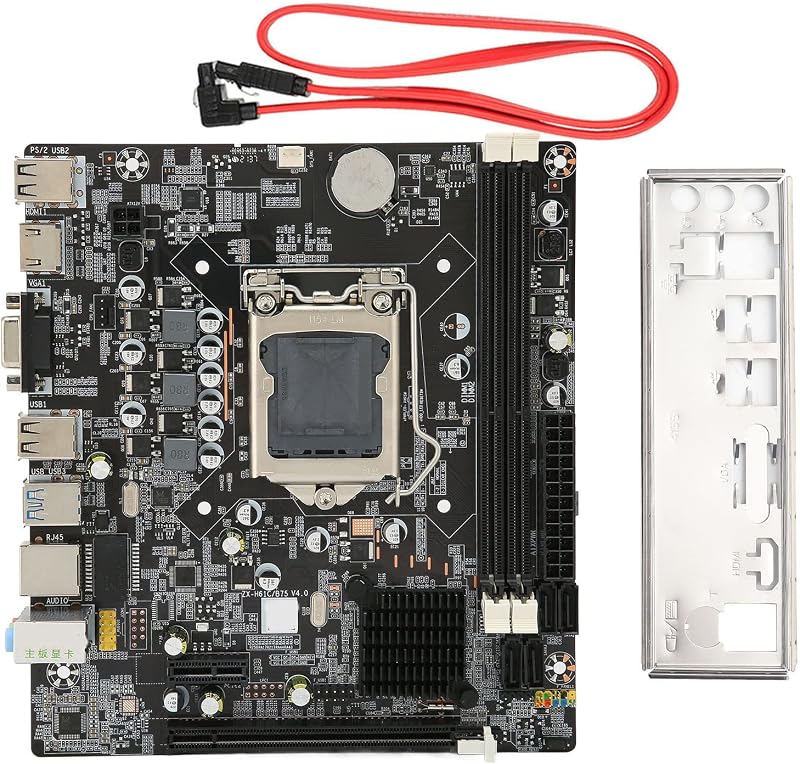

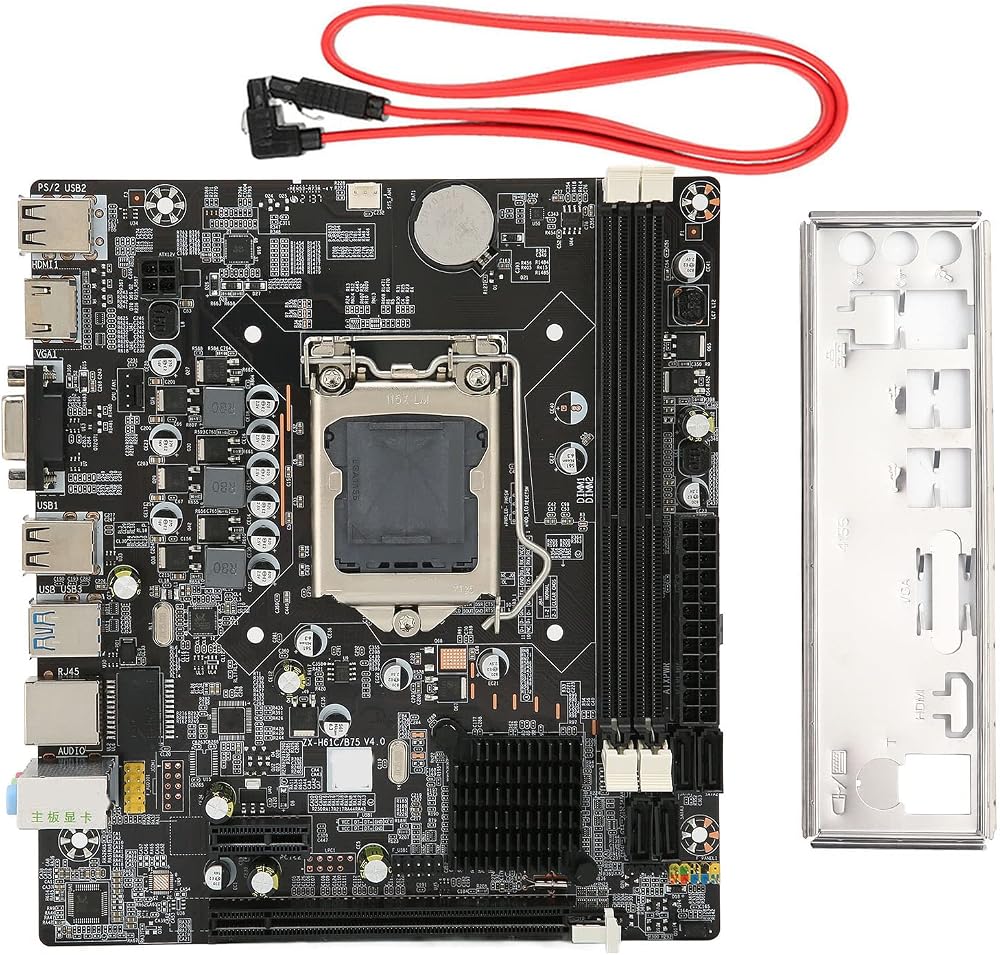

Package Includes

• 1 x Motherboard
• 1 x SATA Cable
• 1 x Baffle

Important Notes

Professional installation is recommended. If you encounter issues such as no display, no boot, no picture, no network, or no sound after installation, please try performing a factory reset or cleaning the contacts of the memory, processor, and graphics card with an eraser.

Factory Reset Steps:

1. Stop operation and unplug the power cord (remove both 24-pin and 4-pin connectors).
2. Remove the motherboard battery.
3. Reverse the battery for 10 seconds.
4. Reinstall the battery.
5. Turn on the computer.
