DAOKAI 10PCS 3.3V Voltage Regulator Module Step-Down DC 4.75-12V to 3.3V Power

Product Overview

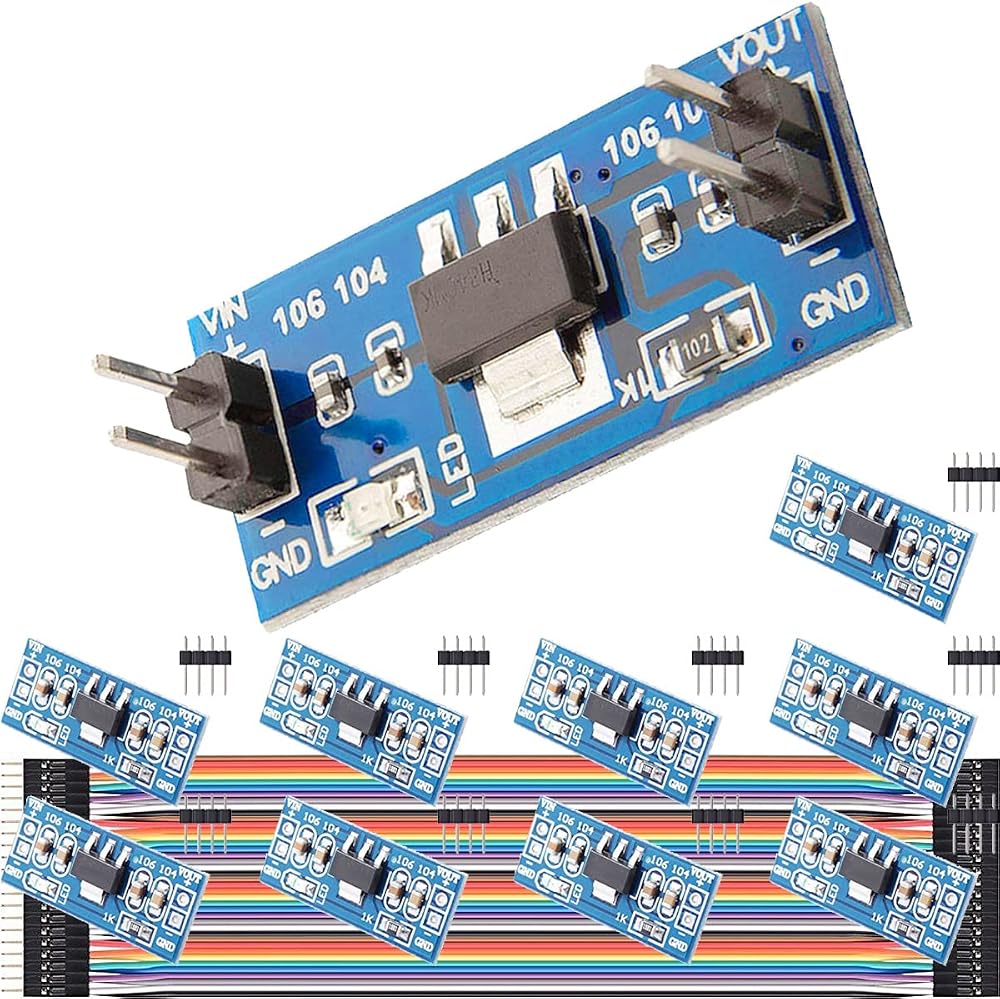

This listing is for a pack of 10 DAOKAI 3.3V Power Voltage Regulator Modules. These step-down linear power boards convert an input voltage of DC 4.75V-12V to a stable 3.3V output, ideal for various electronic projects and experiments. The modules feature a double-panel design and include a power indicator.

Key Features

• Brand: DAOKAI
• Quantity: 10 pieces
• Output Voltage: 3.3V
• Input Voltage Range: DC 4.5V-7V (must be at least 1V higher than output)
• Maximum Load Current: 800mA
• Design: Double-panel layout
• Fixing Holes: Specially designed 2 pin header fixing holes for easy mounting on perfboard
• Connections: 2P single-row pin headers for input and output
• Power Indicator: Red LED
• Included Cable: 1 x 40pin Female to Male Cable

Specifications

• PCB Board Size: 25x11mm / 0.98x0.43 inches

Application Hints

These voltage regulators are easy to use and are protected against short circuit and thermal overloads. Thermal protection circuitry will shut down the regulator should the junction temperature exceed 165℃. They offer a lower dropout voltage, more precise reference tolerance, and improved reference stability with temperature.
