CNLINKO YM-20 3 Pin Waterproof Connector IP68 M20 Aviation PBT Plastic Solder

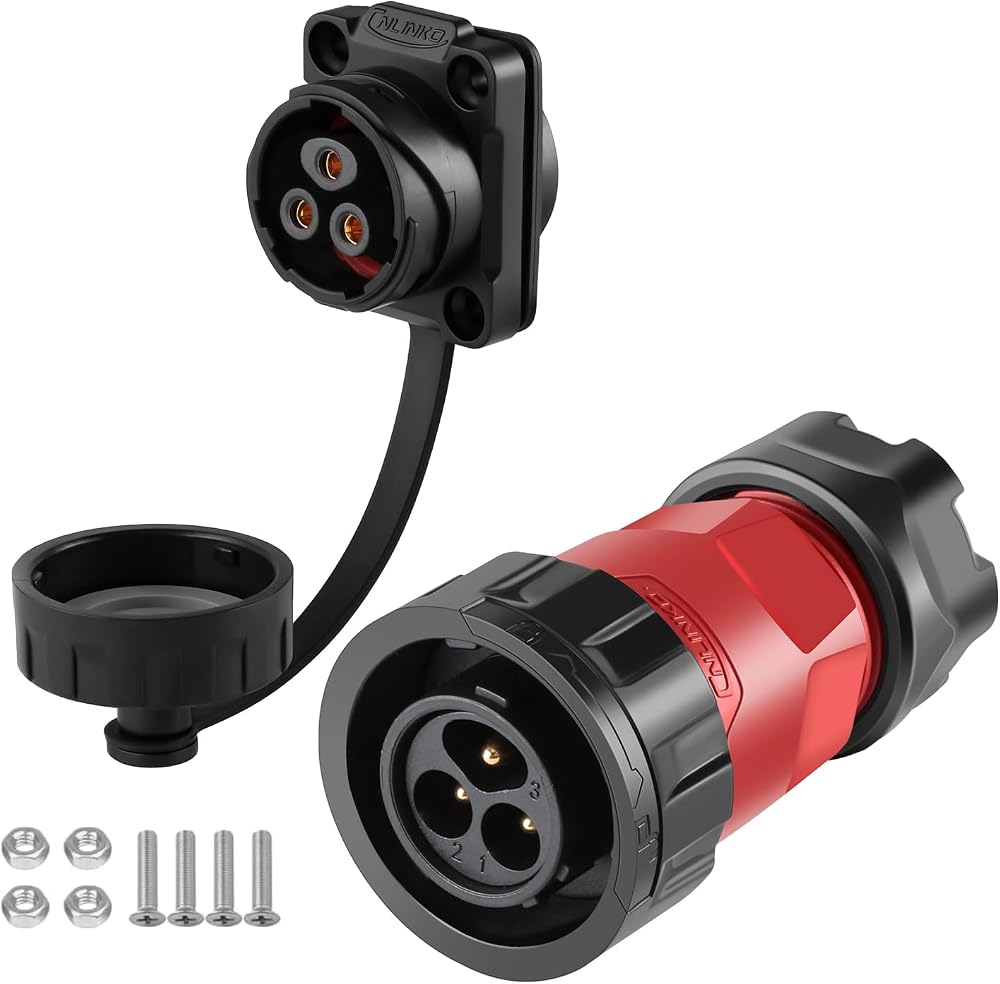

CNLINKO YM-20 3 Pin Waterproof Connector

This CNLINKO YM-20 series connector offers robust IP68 waterproof protection, making it ideal for demanding industrial and outdoor applications. Its quick-plugging aviation design and PBT plastic shell ensure durability and reliable performance.

Key Features

• Waterproof Rating: IP68 mated protection
• Pin Configuration: 3 Pin
• Shell Material: PBT Plastic
• Connection Type: Solder, Male-Female Flange Socket (4 Hole Model)
• Cable Support: Up to 4.0 mm²/12 AWG, cable diameter ≤Φ12 mm
• Electrical Ratings: 20 A current, 500 V voltage, 2000 V withstand
• Contact Resistance: <1.0 mΩ
• Insulation Resistance: >500 MΩ
• Durability: Over 500 cycles
• Operating Temperature: -25°C to 85°C
• Contact Diameter: Φ2.7 mm
• Enhanced Connectivity: Partitioned pins for misconnection prevention
• Material Composition: Copper Alloy with Gold Plating contacts, Silica Gel sealing

Reliable Soldering and Connectivity

Designed for stability, the connector's permanent soldering connections eliminate the risks of loosening, perfect for applications demanding unwavering connections. It enhances electrical performance by reducing resistance and amplifying signal transmission efficiency. Enhanced partitioned pins provide foolproof protection against misconnections, guaranteeing consistent and trustworthy performance with a plug-and-play design. The flange socket effectively safeguards against dust, moisture, and various environmental factors, assuring a secure and uninterrupted connection.

Premium Durability and Versatile Applications

Crafted from high-quality PBT shell and insulated parts, combined with metal and high-performance engineering plating, this aviation connector guarantees longevity. Copper Alloy and Gold Plating in the contact points ensure excellent conductivity. It excels at high-current and signal handling, making it ideal for power-hungry applications like machinery, industrial networks, and instruments. Applicable to industrial equipment, outdoor sensors, communication devices, and more.

Specifications

• Brand: CNLINKO
• Model: YM-20
• Number of Contacts: 3
• Current Rating: 20 A
• Voltage Rating: 500 V
• Withstand Voltage: 2000 V
• Cable Diameter Range: ≤Φ12 mm
• Wire Gauge: 4.0 mm²/12 AWG
• Contact Diameter: Φ2.7 mm
• Mating Cycles: >500
• Operating Temperature: -25°C to 85°C
• Ingress Protection: IP68
• Shell Material: PBT Plastic
