CNLINKO LP-20 3-Pin M20 Circular Connector IP68 Waterproof Aviation Plug Socket

CNLINKO LP-20 Industrial Waterproof Circular Connector

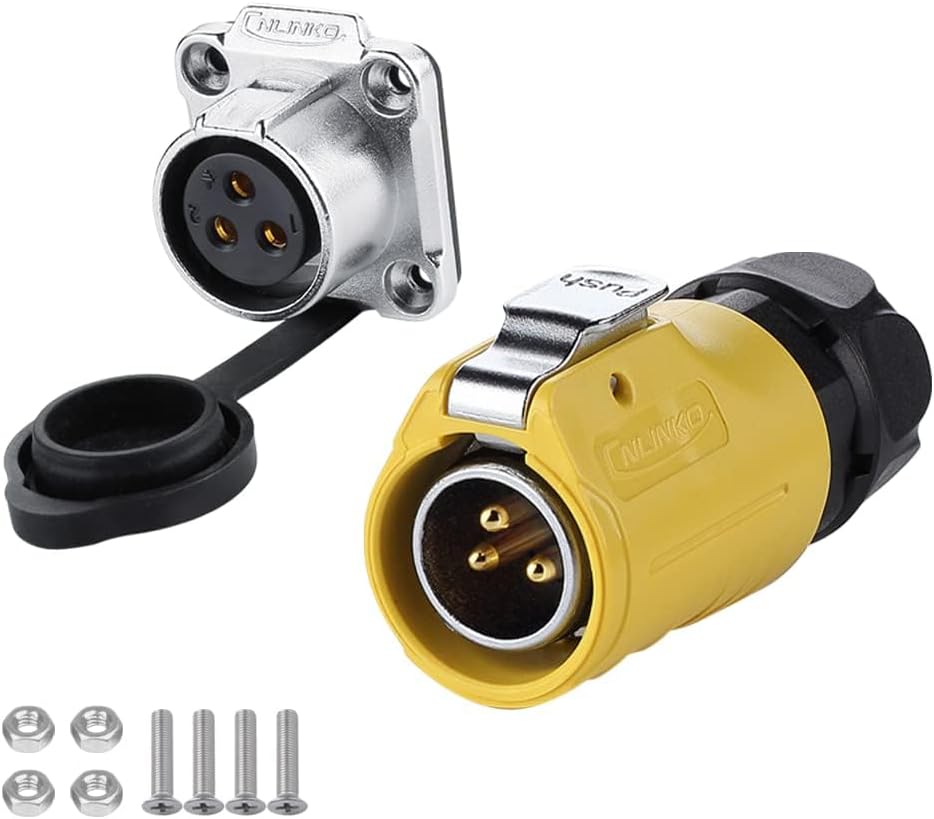

This CNLINKO LP-20 connector set includes a male plug and a female socket, designed for robust and reliable connections in demanding environments. Featuring IP68 waterproofing when mated, quick plugging functionality, and an anti-interference shell with fast release, it is ideal for industrial and professional applications.

Key Features

• Product Model: LP-20-C03PE-01-021 (Male Plug) + LP-20-J03SX-03-401 (Female Socket)
• Connecting Mode: Plug/Unplug
• Protection Level: IP68 (Mated)
• Durability: ≥500 Mating/Unmating Cycles
• Temperature Rating: -25°C to 85°C
• Assembly Style: Solder
• Shell Material: Zinc Alloy (Pearl Hard Chromium)
• Contact Material: Copper Alloy (Gold Plated)
• Sealing Material: Silica Gel

Specifications

• Pins: 3 Pin
• Cable Specifications: Supports 2.5-4.0mm² / 14-12AWG cable
• Cable Diameter Range (Power): Φ10.0~12.0mm
• Contact Diameter x Number: Φ2.7x3
• Rated Current: 20A
• Operating Voltage (AC.V.rms): 500V
• Withstanding Voltage (AC.V), 1 Minute: 2000V
• Contact Resistance: <1.0mΩ
• Insulation Resistance: >500MΩ

Applications

• Medical Equipment
• Server
• Electric Power Equipment
• Solar Energy Equipment
• The Smart Grid
• Communications Equipment
• Vehicle Equipment
• Ship Equipment
• Stage Equipment
• Heavy Machine

Note: Prohibited to charged inserted.
