CNLINKO LP-16 3 Pin M16 Waterproof Connector IP68 Quick Plug Aviation Socket

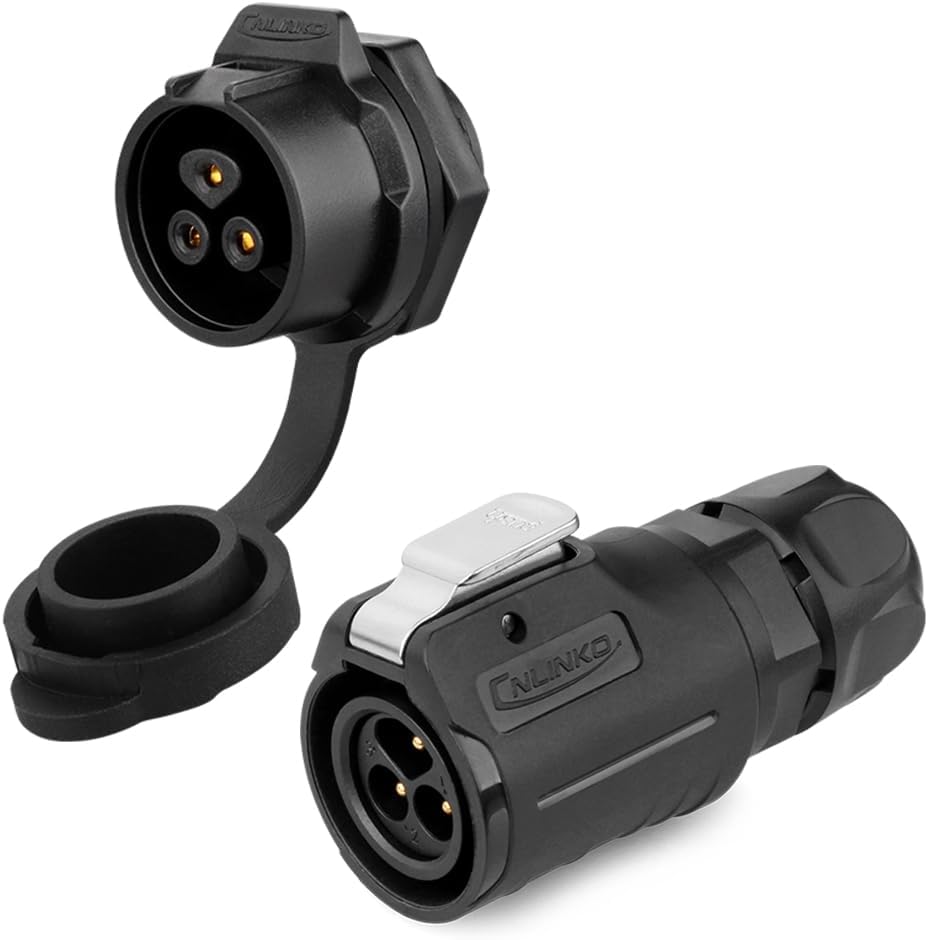

CNLINKO LP-16 Industrial Waterproof Connector

This CNLINKO LP-16 industrial waterproof connector offers a reliable and robust solution for demanding environments. It features a quick plugging, threaded M16 design with IP68 protection when mated, making it ideal for a wide range of applications.

Key Features

• Product Model: LP-16-C03PE-02-001 + LP-16-J03SX-02-101 (Male Plug + Female Socket)
• Connecting Mode: Plug/Unplug
• Protection Level: IP68 (Mated)
• Cable Specifications: Supports 1.0-1.5 mm² / 18-16 AWG cable
• Cable Diameter Range: Ф7.0~Ф9.0 mm
• Contact Diameter × Number: Φ1.5×3
• Durability: ≥ 500 Mating/Unmating Cycles
• Temperature Rating: -25 ℃ ~ 85 ℃
• Assembly Method: Welding

Electrical Specifications

• Rated Current: 10 A
• Operating Voltage (AC.V.rms): 400 V
• Withstanding Voltage (AC.V), 1 Minute: 2000 V
• Contact Resistance: < 3.0 mΩ
• Insulation Resistance: > 500 MΩ
• Important Note: Prohibited to be charged when inserted

Materials

• Shell & Insulated Parts: High Performance Engineer Plastic
• Hard Metal: Zinc Alloy (Pearl Hard Chromium)
• Contact: Copper Alloy (Gold Plated)
• Sealing: Silica Gel

Applications

• Medical Equipment
• Server
• Electric Power Equipment
• Solar Energy Equipment
• The Smart Grid
• Communications Equipment
• Vehicle Equipment
• Ship Equipment
• Stage Equipment
• Heavy Machine
