CNLINKO LP-12 Waterproof Connector IP68 2 Pin Aviation Plug Socket M12 PBT

CNLINKO LP-12 Industrial Waterproof Connector

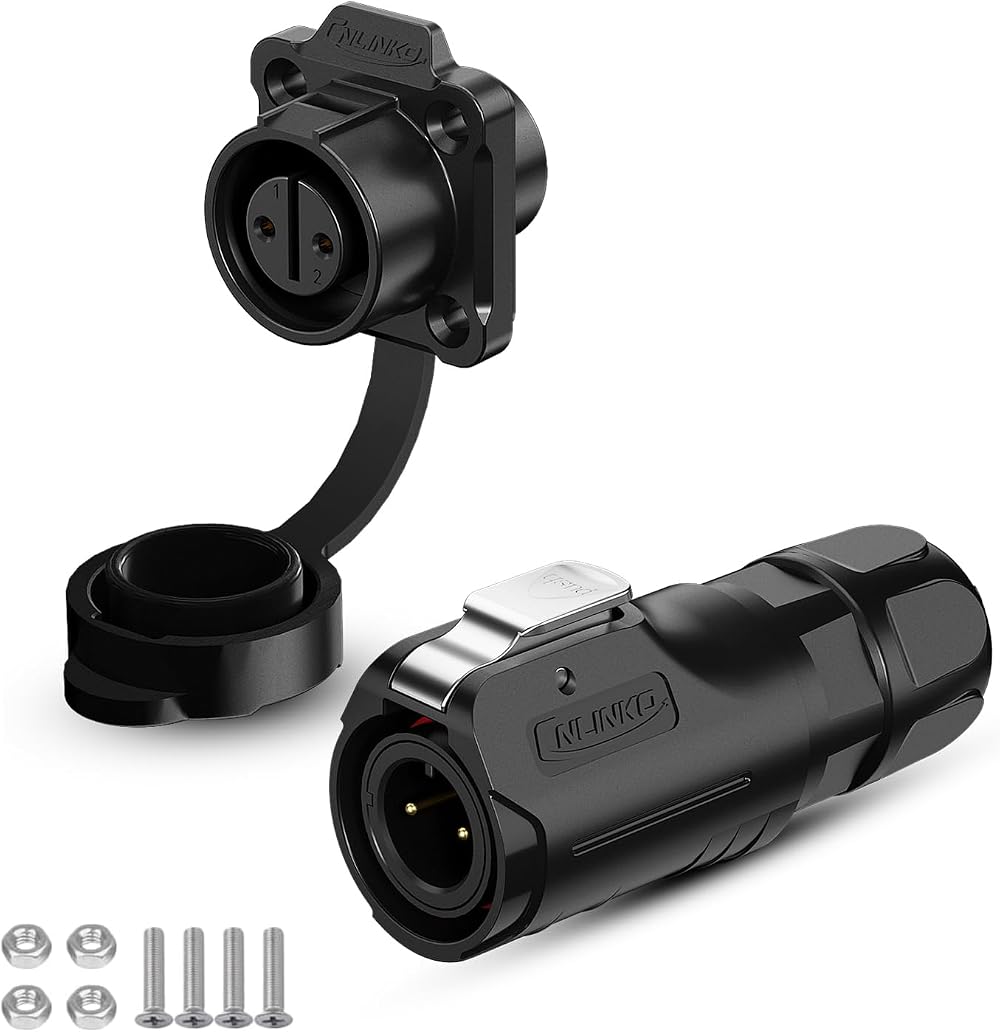

This listing includes a CNLINKO LP-12 Male Plug (LP-12-C02PE-02-001) and a Female Socket (LP-12-J02SX-02-401). Designed for robust industrial applications, this connector offers a quick plugging and fast release mechanism with superior durability and protection.

Key Features

• Product Model: LP-12-C02PE-02-001 + LP-12-J02SX-02-401
• Connecting Mode: Plug/Unplug
• Protection Level: IP68 (Mated)
• Durability: ≥ 500 Mating/Unmating Cycles
• Temperature Rating: -25 ℃ to 80 ℃
• Assembly Method: Welding
• Shell Material: High Performance PBT Plastic
• Contact Material: Copper Alloy (Gold Plated)

Specifications

• Cable Specifications: Supporting 0.34-0.5 mm² / 22-20 AWG cable
• Cable Diameter Range: Ф4.5~Ф5.5 mm
• Contact Diameter × Number: Φ1.0 × 2
• Rated Current: 5 A
• Operating Voltage (AC.V.rms): 125 V
• Withstanding Voltage (AC.V), 1 Minute: 1500 V
• Contact Resistance: < 5.0 mΩ
• Insulation Resistance: > 500 MΩ

Applications

• Medical Equipment
• Server Equipment
• Electric Power Equipment
• Solar Energy Equipment
• Smart Grid Systems
• Communications Equipment
• Vehicle Equipment
• Ship Equipment
• Stage Equipment
• Heavy Machinery
