ciciglow B75M ATX Motherboard LGA 1155 DDR3 SATA3 VGA HDM 16GB PCIE

Product Overview

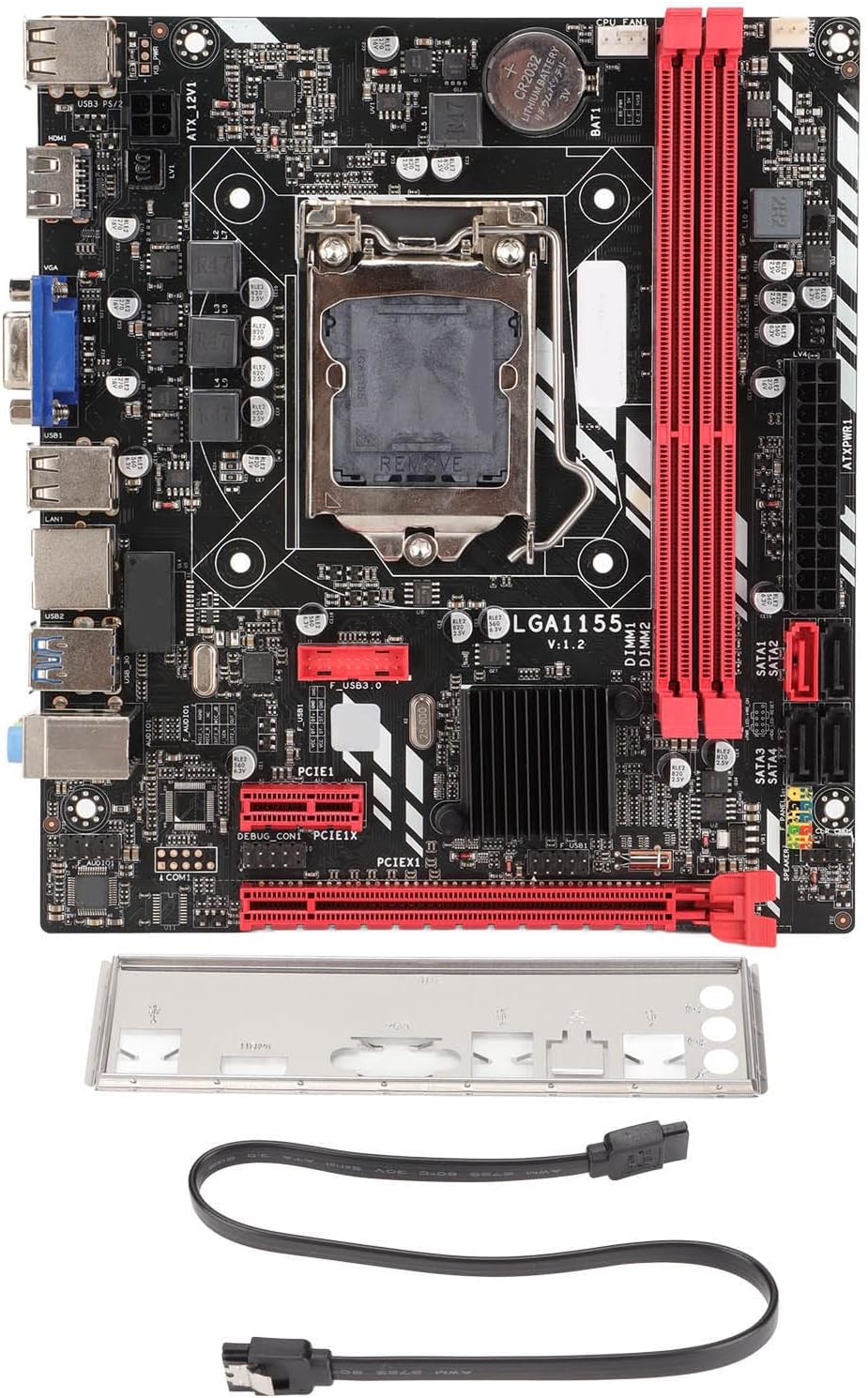

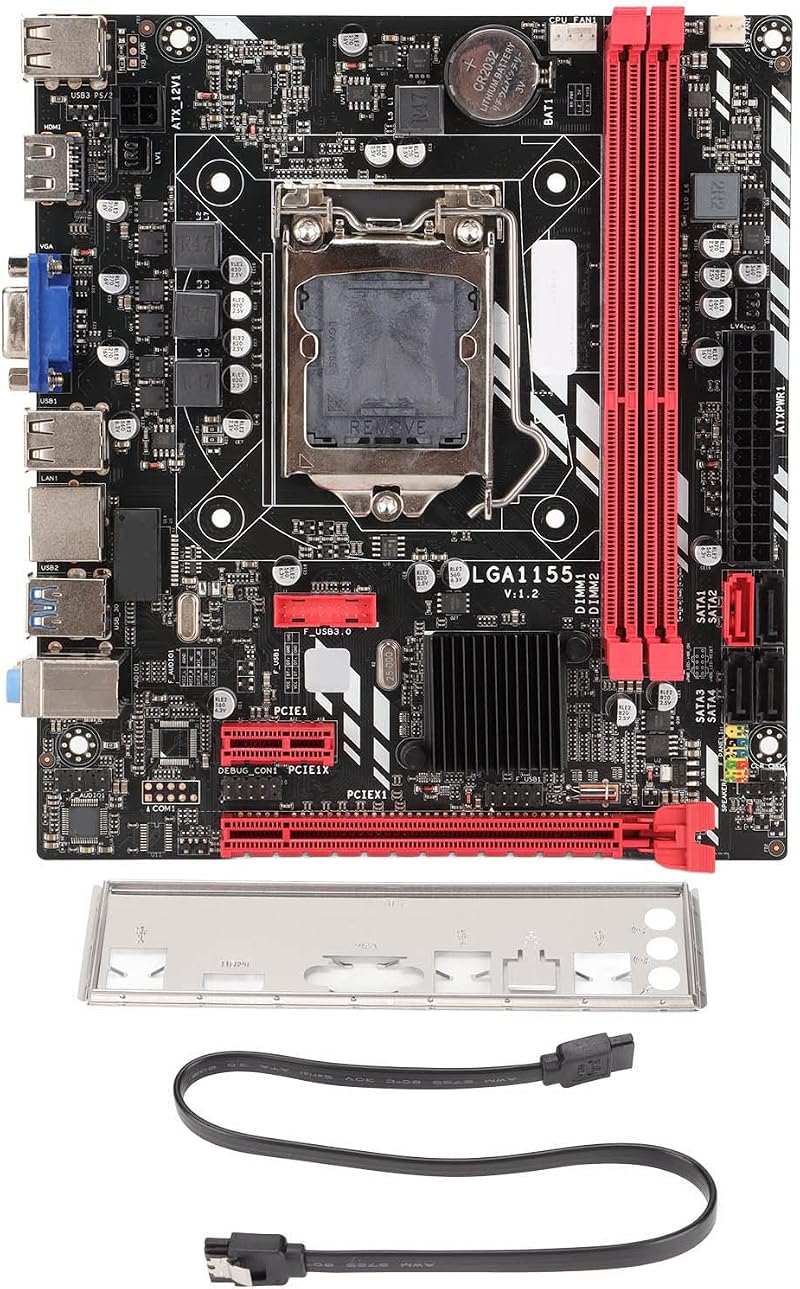

This ciciglow B75M ATX motherboard is designed for Intel LGA 1155 socket processors, supporting Intel Core i3, i5, and i7 CPUs. It features DDR3 memory support, multiple SATA interfaces, and essential expansion slots for building a reliable computer system.

Key Features

• Brand: ciciglow
• Model: B75M
• Motherboard Architecture: M ATX
• CPU Socket Type: LGA 1155
• Supported Memory Type: DDR3 (x2 slots)
• Maximum Memory Capacity: 16GB
• Graphics Output: VGA, High Definition Multimedia Interface (HDMI)
• Expansion Slots: PCIE 8Xx1, PCIE 1Xx1
• Storage Interfaces: SATA3.0 (x1), SATA 2.0 (x3)
• USB Ports: USB3.0 (x2), USB2.0 (x4), Front USB3.0 pin (x1), Front USB2.0 Pin (x1)
• Network: 100M Net Card
• Audio: ACL662 5.1 Channel Sound Card
• Power Connectors: 24 Pin (x1), 4 Pin (x1)

Specifications

• Item Type: Motherboard
• Material: PCB
• Size: Approx. 190 x 170mm / 7.5 x 6.7in
• Front Side Bus Frequency: 1333 MHz
• Expansion Interface: COM Pin (x1)
• Battery Type: CR2032 Button Battery (Inbuilt)
• Battery Capacity: 240mAh

Troubleshooting Tip

If the device does not power on and the power indicator does not light up, please ensure the power supply is connected and functioning correctly. Verify that the CPU fan is installed properly, as its operation can indicate power supply functionality.

Package Contents

• 1 x Motherboard
• 1 x SATA Cable
• 1 x Baffle
