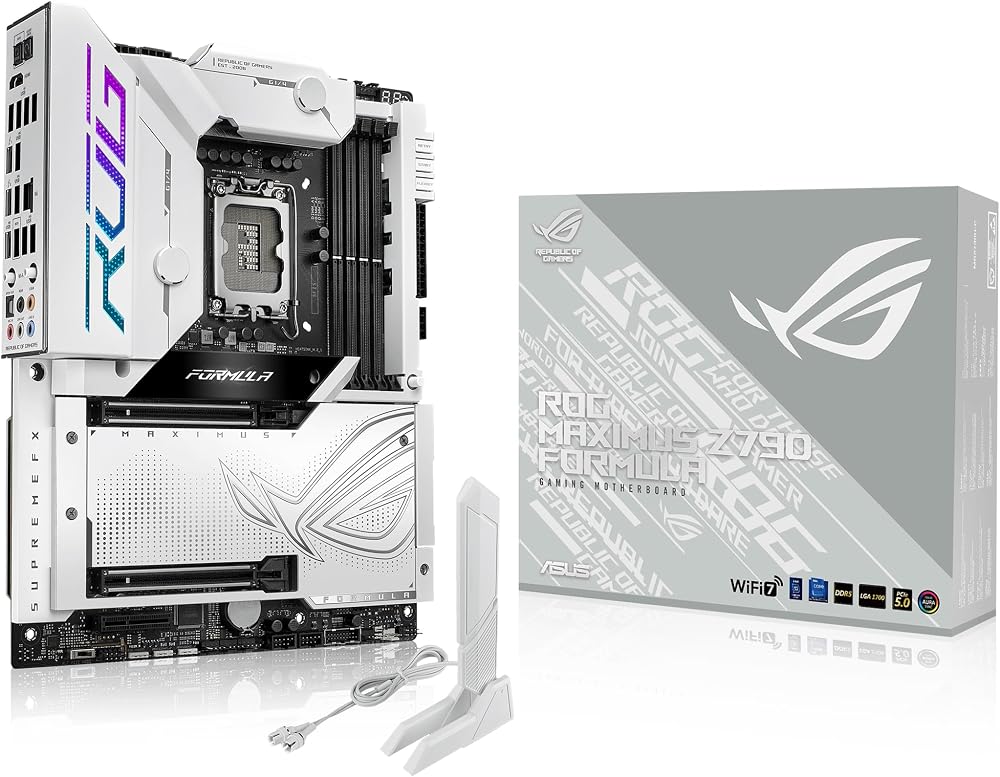

ASUS ROG Maximus Z790 Formula ATX Motherboard WiFi 7 14th 13th 12th Gen LGA 1700

ASUS ROG Maximus Z790 Formula Motherboard

Elevate your PC build with the ASUS ROG Maximus Z790 Formula ATX motherboard, designed for Intel Core 14th, 13th, and 12th Gen processors. This board offers a robust power solution, advanced cooling, and cutting-edge connectivity for high-performance gaming and demanding workloads.

Key Features

• Intel LGA 1700 Socket: Compatible with Intel Core 14th & 13th Gen, 12th Gen Processors, Pentium Gold, and Celeron Processors.
• Robust Power Solution: Features 20+1+2 teamed power stages, dual ProCool II power connectors, high-quality alloy chokes, and durable capacitors.
• Optimized VRM Thermals: Includes enlarged VRM heatsinks with premium HybridChill cooling, M.2 heatsinks with triple embedded backplates, high-conductivity thermal pads, and ROG Water-Cooling Zone.
• Latest M.2 Support: One onboard PCIe 5.0 M.2 slot and four PCIe 4.0 M.2 slots, all equipped with substantial cooling solutions.
• Abundant Connectivity: Offers dual Thunderbolt 4 USB Type-C ports, a USB 20Gbps Type-C front-panel connector with Quick Charge 4+ up to 60W and USB Wattage Watcher, six additional USB 10Gbps ports, two PCIe 5.0 x16 SafeSlots, and HDMI 2.1.
• High-Performance Networking: Equipped with onboard Intel Wi-Fi 7 (802.11be) and Realtek 5 Gb Ethernet with ASUS LANGuard.
• Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking, Two-Way AI Noise Cancelation, AEMP II, and DIMM Flex for simplified setup and improved performance.
• Immersive Audio: ROG SupremeFX ALC4082 codec with ESS ES9218 Quad DAC for up to 32-Bit/384 kHz playback.
• Unmatched Personalization: Features a 2-inch LiveDash OLED, three addressable Gen 2 headers, and one RGB header, all configurable with ASUS Aura Sync RGB lighting.
• DIY Friendly Design: Includes PCIe Slot Q-Release, M.2 Q-Latch, Q-Antenna, pre-mounted I/O shield, Q-Code, Q-LED, FlexKey button, Start button, BIOS FlashBack button, and Clear CMOS button.

Specifications

• Brand: ASUS
• Model: ROG Maximus Z790 Formula
• Form Factor: ATX
• CPU Socket: Intel LGA 1700
• Memory Type: DDR5
• M.2 Slots: 5 (1x PCIe 5.0, 4x PCIe 4.0)
• PCIe Slots: 2x PCIe 5.0 x16
• Thunderbolt: 2x Thunderbolt 4 USB Type-C
• Front Panel USB-C: 1x USB 20Gbps Type-C with Quick Charge 4+
• Rear USB: 6x USB 10Gbps
• Networking: Intel Wi-Fi 7 (802.11be), Realtek 5 Gb Ethernet
• Display Output: HDMI 2.1
