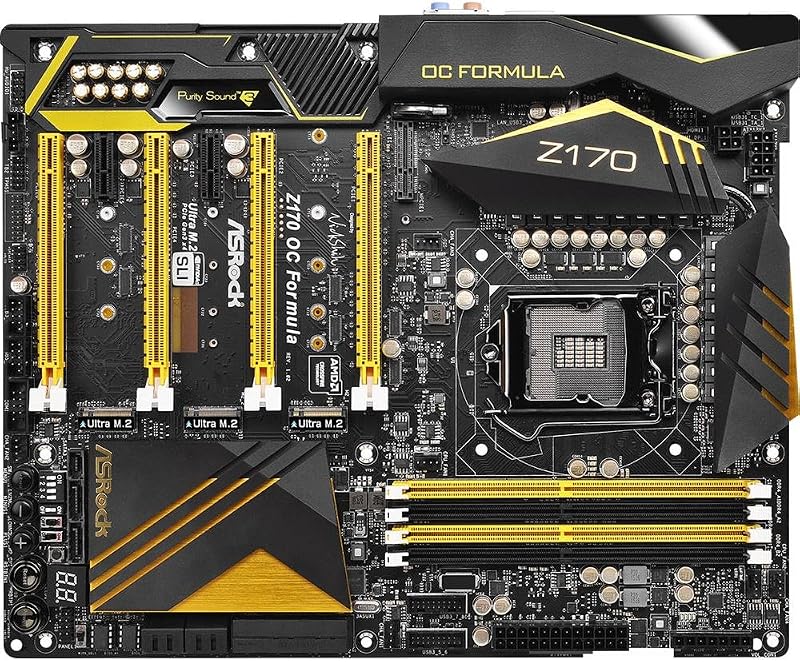

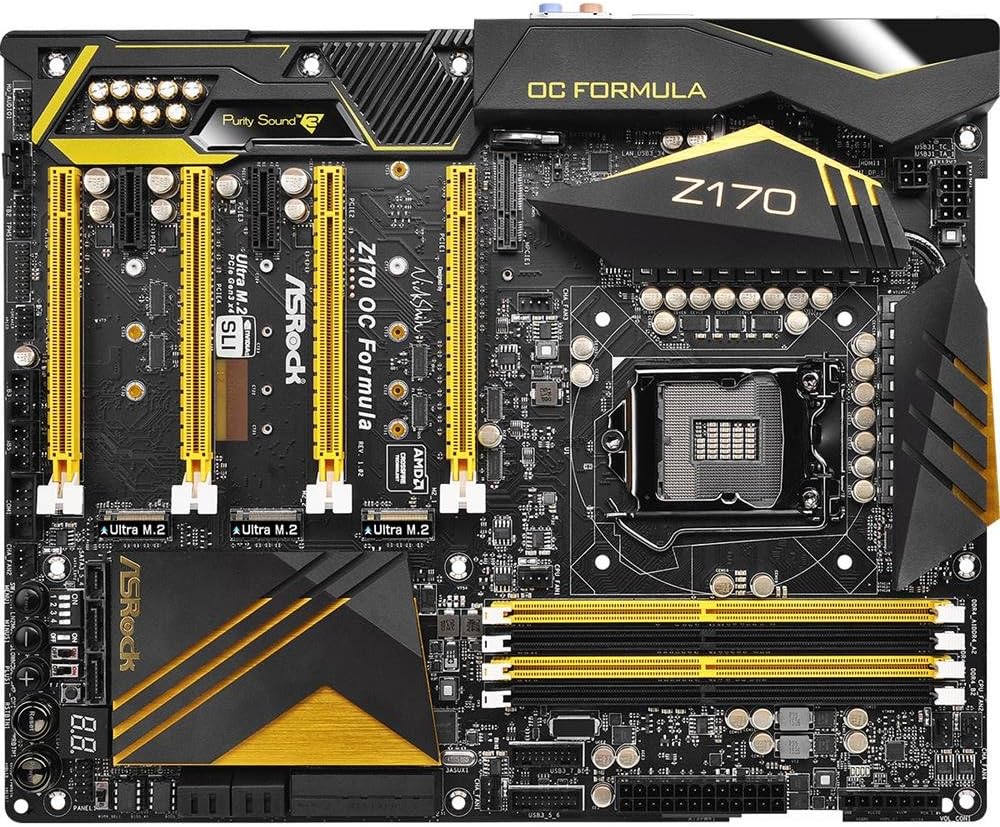

ASRock Z170 OC Formula Motherboard Skylake ATX LGA1151 DDR4 M.2 SLI CrossFireX

ASRock Z170 OC Formula Motherboard

This ASRock Z170 OC Formula motherboard is designed for high-performance gaming and overclocking, supporting 6th Generation Intel Core Processors.

Key Features

• ASRock Super Alloy and OC Formula Kit for enhanced power, connector, cooling, and monitoring.
• Supports 6th Generation Intel Core Processors (Socket 1151).
• Digi Power with an 18 Power Phase design.
• Supports Dual Channel DDR4 memory up to 4133+(OC).
• 4 PCIe 3.0 x16 slots for multi-GPU configurations.
• Supports AMD 4-Way CrossFireX and NVIDIA Quad SLI.
• 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec), Purity Sound 3 & DTS Connect.
• Intel Gigabit LAN.
• Multiple storage options: 3 SATA Express, 10 SATA3, and 3 Ultra M.2 slots (PCIe Gen3 x4 & SATA3).
• Modern connectivity: 2 USB 3.1 (1 Type-C & 1 Type-A) and 8 USB 3.0 (4 Front, 4 Rear).
• Overclocking features: V-Probe, Rapid OC, PCIe ON/OFF, XMP Switch, Slow Mode Switch, and LN2 Mode Switch.
• Supports Full Spike Protection.
• Includes ASRock Live Update & APP Shop.

Important Note on Memory Installation

To ensure successful boot, please use a single memory module to start the motherboard initially. Once the motherboard is running, refresh its BIOS. After this procedure, you can then add additional memory modules.

Box Contents

• 1x Motherboard
