ASRock B760M PRO RS/D4 Micro ATX B760 LGA1700 DDR4 2.5G 2xM.2 PCIe4 HDMI DP RGB

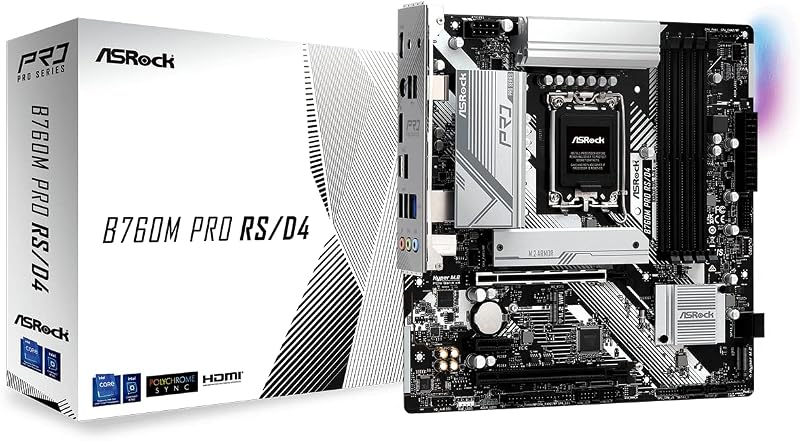

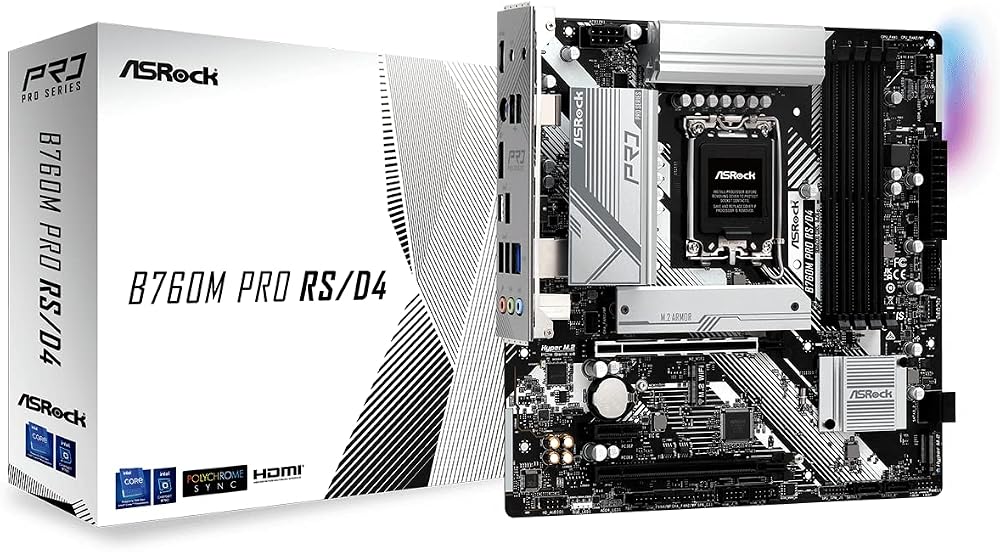

The ASRock B760M PRO RS/D4 is a Micro ATX motherboard designed for Intel LGA1700 processors, offering robust performance and essential features for a modern PC build. It supports DDR4 memory and comes equipped with a range of connectivity options and advanced technologies.

Key Features

• Optimized VRM Design: Features Dr.MOS, an integrated power stage solution that delivers higher current per phase, resulting in improved thermal performance and superior system stability.
• Nahimic Audio: Provides an engaging, vibrant, and detail-rich listening experience across various audio outputs, whether using headphones, headsets, or speakers.
• Polychrome RGB Sync: Includes built-in RGB illumination and onboard RGB/addressable RGB headers, allowing synchronization with compatible LED devices for custom lighting effects.
• PCI Express 4.0 M.2 SSD Support: Capable of performing twice the speed of previous generations, offering lightning-fast data transfer rates for storage.
• 2.5 Gigabit LAN: Built for maximum networking performance, ideal for demanding home networking, content creation, online gaming, and high-quality media streaming. Delivers up to 2.5X the bandwidth of standard gigabit Ethernet.
• Front USB 3.2 Gen1 Type-C Header: Provides up to 10 Gbps data transfer rate and a reversible USB design for convenient front panel connectivity.
• Auto Driver Installer (ADI): Features an Ethernet driver prepacked in the BIOS ROM, allowing for automatic download and installation of necessary drivers after operating system installation, simplifying setup.

Specifications

• Brand: ASRock
• Model: B760M PRO RS/D4
• Chipset: Intel B760
• CPU Socket: LGA 1700
• Form Factor: Micro ATX
• Memory Support: 4x DDR4 DIMM slots
• Video Outputs: HDMI, DisplayPort (DP)
• LAN: 2.5G Ethernet
• PCIe Version: PCIe 4.0
• M.2 Slots: 2x
• RGB: Yes (Polychrome RGB)
