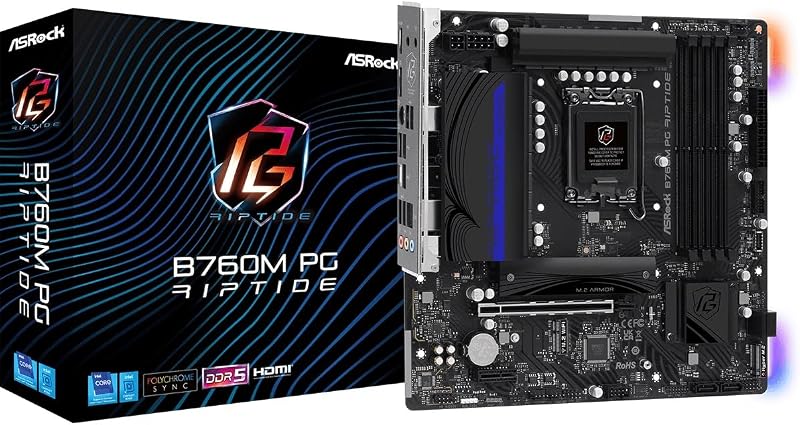

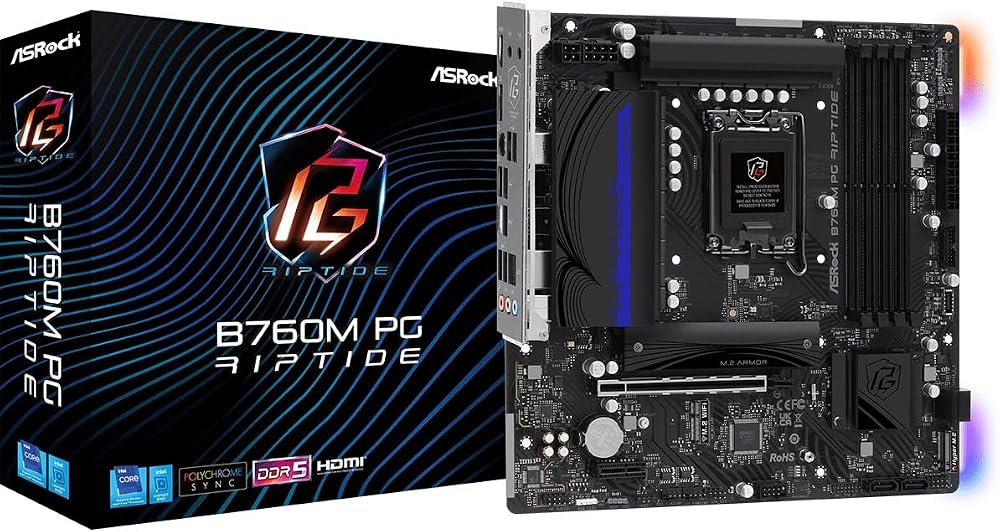

ASRock B760M PG RIPTIDE Motherboard Intel B760 DDR5 4 DIMM Micro ATX 2x M.2

Introducing the ASRock B760M PG RIPTIDE motherboard, built for stability and enhanced performance. Named after a powerful ocean current, the Riptide series embodies a balance of calm strength and immersive gaming immersion. This motherboard is designed with a focus on robust features for gamers and enthusiasts.

Key Features

• Optimized VRM Design: Features a 14+1+1 power phase design with sturdy components for smooth power delivery and enhanced CPU performance.
• 6 Layer PCB: Provides stable signal traces and power shapes, leading to lower temperatures and improved energy efficiency, especially for memory overclocking. Supports extreme DDR5 memory performance.
• DDR5 XMP & EXPO Support: Built with low-loss materials to enable enthusiasts to enjoy boosted DDR5 memory overclocking performance through pre-tested profiles. Compatible with Intel XMP and AMD EXPO capable memory modules.
• DDR5 Memory Protection Circuit: Implements a protection circuit on each DDR5 motherboard to mitigate the risk of damaging memory modules during installation or removal when AC power is not properly disconnected.
• Reinforced Steel Slot: The PCIe 5.0 version slot includes extra anchor points, a stronger latch, and ensures signal stability, capable of supporting heavy graphics cards.
• Nahimic Audio: Offers an engaging listening experience with vibrant and detailed audio across various output devices. Enhances communication quality with powerful algorithms for noise-free conversations and clear sound. Sound Tracker provides a visual indicator of sound direction for immersive gaming. Compatible with all audio devices via Jack, USB, Bluetooth, HDMI, and S/PDIF.
• Polychrome RGB: Features onboard RGB headers and an addressable RGB header for connecting compatible LED devices like strips, fans, and coolers. Allows synchronization with Polychrome RGB Sync-certified accessories for unique lighting effects.
• High Speed M.2 Solution: Supports PCI Express 4.0 M.2 SSDs, delivering twice the speed of previous generations for lightning-fast data transfer.
• Dragon 2.5 Gb/S LAN: Intelligent 2.5Gb/s LAN platform designed for maximum networking performance, offering up to 2.5X bandwidth compared to standard Gigabit Ethernet for faster gaming, file transfers, and backups.
• Front USB 3.2 Gen1 Type-C: Delivers up to 10 Gbps data transfer rate with a reversible USB design for the front panel of your computer case.
• EZ Setting Auto Driver Installer: The Ethernet driver is prepacked in the BIOS ROM. After OS installation, follow instructions for ADI to automatically download and install necessary drivers.
• Pre-Installed IO Shield: The pre-installed IO shield design ensures precise motherboard installation in the chassis, preventing interferences and speeding up the setup process.

Specifications

• Brand: ASRock
• Chipset: Intel B760
• Socket: 1700
• Form Factor: Micro ATX
• Memory: 4 DDR5 DIMM slots
• Display Outputs: HDMI, DisplayPort (DP)
• Networking: 2.5G LAN
• Expansion Slots: PCIe 4.0 support
• Storage: 2x M.2 slots
• RGB: Polychrome RGB support
