ASRock B550M-HDV Motherboard AMD AM4 Ryzen 3rd Gen DDR4 PCIe 4.0 M.2

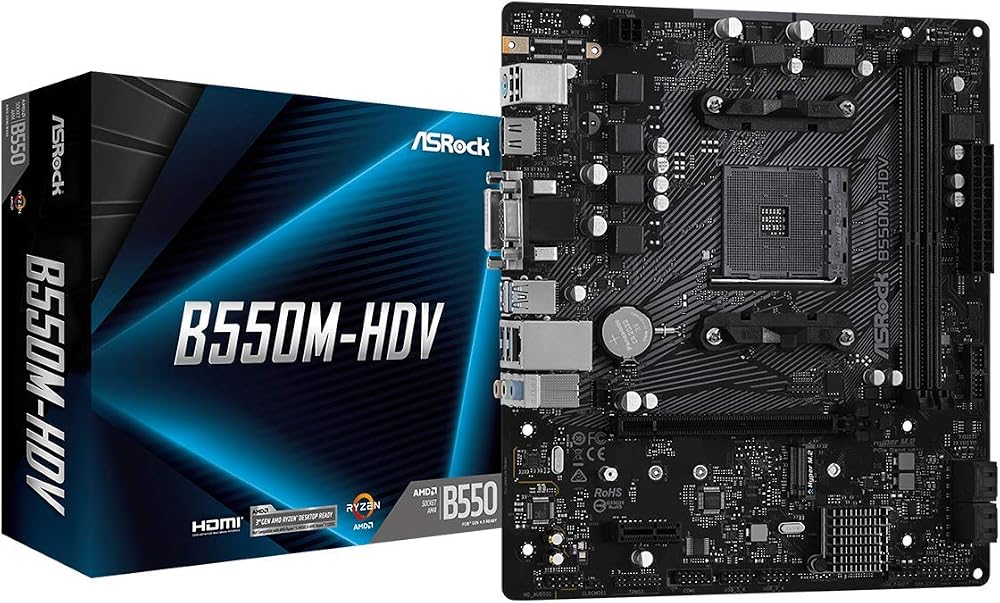

ASRock B550M-HDV Motherboard

This ASRock B550M-HDV motherboard is designed for AMD AM4 socket processors, supporting 3rd Gen AMD Ryzen and future AMD Ryzen processors. It offers a robust 6 Power Phase Design and supports high-speed DDR4 memory up to 4733+ (OC). Ideal for building a powerful and future-proof desktop system.

Key Features

• Processor Support: 3rd Gen AMD AM4 Ryzen and Future AMD Ryzen Processors
• Power Design: 6 Power Phase Design
• Memory Support: DDR4 4733+ (OC)
• Expansion Slots: 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
• Graphics Outputs: HDMI, DVI-D, D-Sub
• Audio: 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
• Storage Options: 4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 and SATA3)
• USB Connectivity: 6 USB 3.2 Gen1 (2 Front, 4 Rear)
• Networking: Gigabit LAN

Specifications

• Chipset: B550
• Socket: AM4
• Form Factor: Micro-ATX
• Integrated Graphics: Supports Integrated Graphics (CPU dependent)
• RAID Support: RAID 0, 1, 10
• M.2 Slot: 1 x Ultra M.2 (PCIe Gen4 x4 and SATA3)
