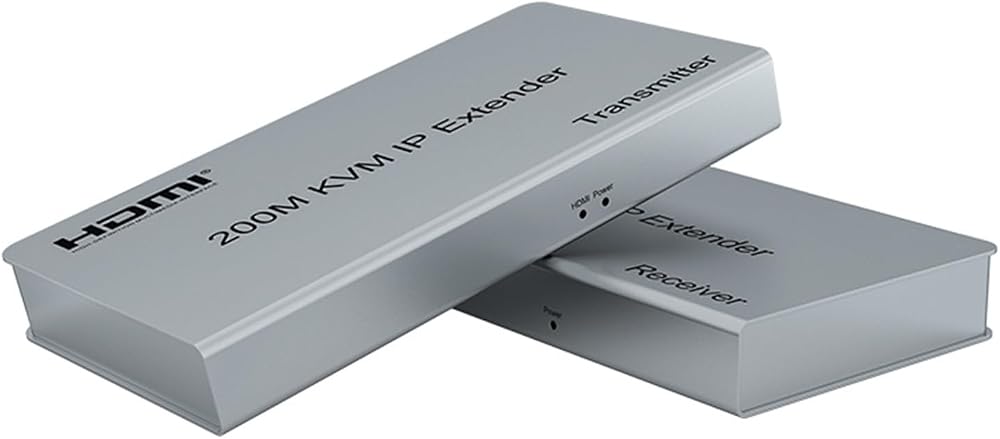

XYKJOBC HDMI KVM IP Extender 200M 1080P Cat5e/6 USB Mouse Keyboard One-Many

The XYKJOBC 200M HDMI KVM IP Extender utilizes TCP/IP standards to transmit high-definition video and audio. Extend your HD display signal up to 200 meters from your source, such as a PC or DVR, using a single Cat5e/6 cable. This extender supports HDMI audio and video transmission in point-to-point, point-to-multipoint, multipoint-to-multipoint, and cascade connection modes.

This listing includes one Transmitter (TX) and one Receiver (RX) unit, enabling a point-to-point setup. For advanced configurations, such as one-to-many or many-to-many setups using a Gigabit Ethernet switch, additional TX or RX units can be acquired separately. For optimal performance and signal integrity, Cat6/6a or Cat7 cable is strongly recommended. Use of Cat5e cable is not advised for this product.

Key Features

• Supports HDCP1.4
• MJPEG Decoding Mode
• Supports point-to-point, one point-to-multipoint, and cascade connection modes
• Complies with 802.3 Ethernet standard
• Supports IR remote control extension
• Supports USB mouse and keyboard extension
• Pure hardware design for plug and play operation; no additional software required

Specifications

• Resolutions: 480p, 720p, 1080p
• Audio Sample Rate: 32kHz, 44.1kHz, 48kHz
• IR Remote Control: 38 KHz; NEC
• Power Adapter: DC 5V/1A
• Max Power Consumption: HDMI Sender: 3W, HDMI Receiver: 3W
• Size (L x W x H): Approximately 163 x 87 x 24mm
• Operating Temperature/Humidity: 0℃-45℃ / 10%-80%RH (non-condensing)
• Storage Temperature/Humidity: -10℃-70℃ / 5%-90%RH (non-condensing)

Package Contents (for 1 Transmitter and 1 Receiver)

• 1 x Transmitter (TX) Unit
• 1 x Receiver (RX) Unit
• 1 x USB Cable
• 2 x IR Cables
• 2 x 5V Power Supplies
• 1 x User Guide
