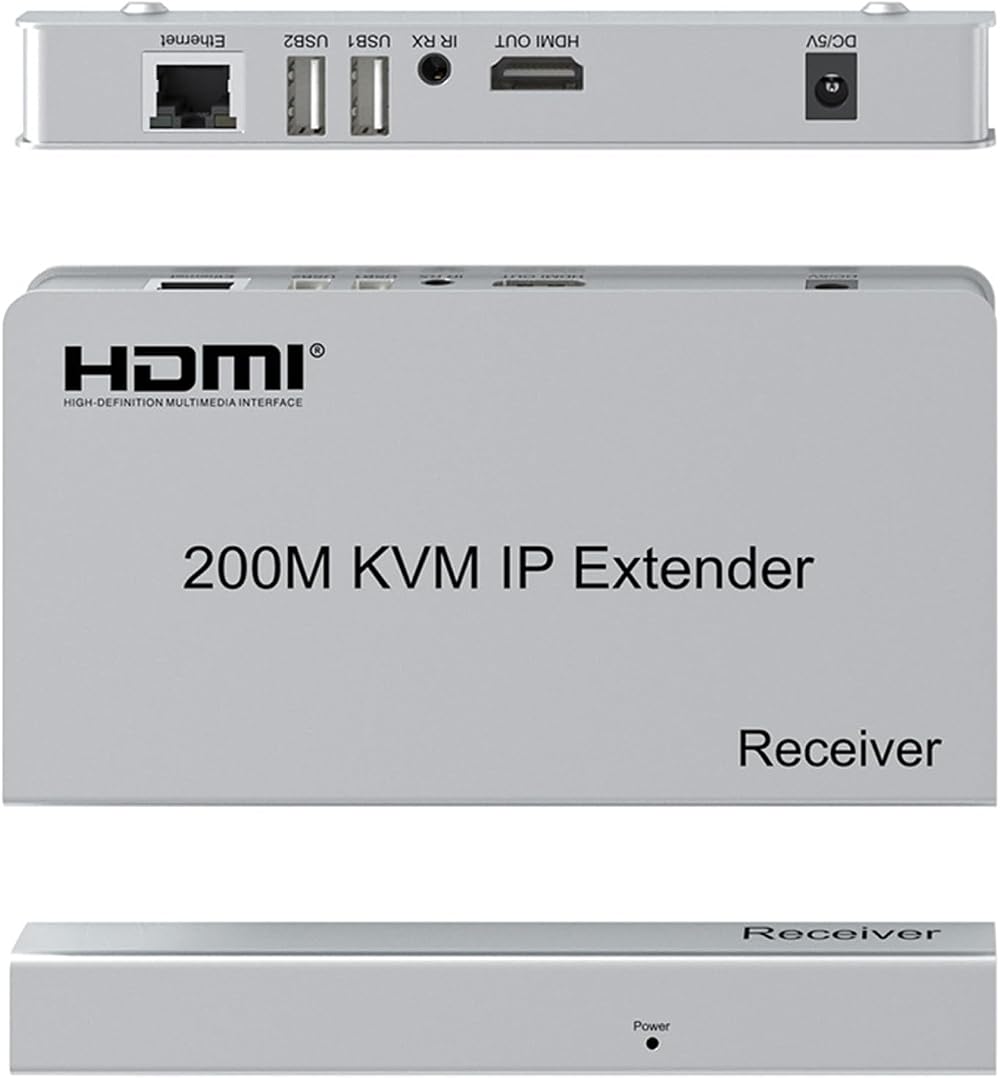

XYKJOBC 200M HDMI KVM IP Extender Cat6/6a 1080P USB Mouse Keyboard RX

Product Overview

This 200M HDMI IP Extender by XYKJOBC is designed to transmit high-resolution HDMI audio and video signals up to 200 meters using a single CAT5e/6 cable. It supports flexible network configurations including point-to-point, point-to-multipoint, and multipoint-to-multipoint modes, as well as cascade connections. This extender is ideal for extending PC, DVR, or Laptop displays and allows for remote control of USB mouse and keyboard.

Important Note: This listing is for the Receiver (RX) unit only. TX (Transmitter) and RX units are sold separately to facilitate one-to-many or many-to-many setups. Cat6/6a or Cat 7 cable is strongly recommended for optimal performance; Cat5e is not advised.

Key Features

• Supports HDCP 1.4
• MJPEG Decoding Mode
• Supports point-to-point, one point-to-multi point, and cascade connection modes
• Complies with 802.3 Ethernet standard
• Supports IR remote control
• Extends USB mouse and keyboard functionality
• Pure hardware design for plug-and-play operation

Specifications

• Resolutions: 480p, 720p, 1080p
• Audio Sample Rate: 32kHz, 44.1kHz, 48kHz
• IR Remote Control: 38 KHz; NEC
• Power Adapter: DC:5V/1A
• Max Power Consumption: HDMI sender: 3W, HDMI receiver: 3W
• Dimensions (L-W-H): approximately 163*87*24mm
• Operating Temperature/Humidity: 0℃-45℃ / 10%-80%RH (no condensation)
• Storage Temperature/Humidity: -10℃-70℃ / 5%-90%RH (no condensation)

Package Includes (for 1 RX unit only)

• 1 x Receiver
• 1 x IR cable
• 1 x 5V Power supply
