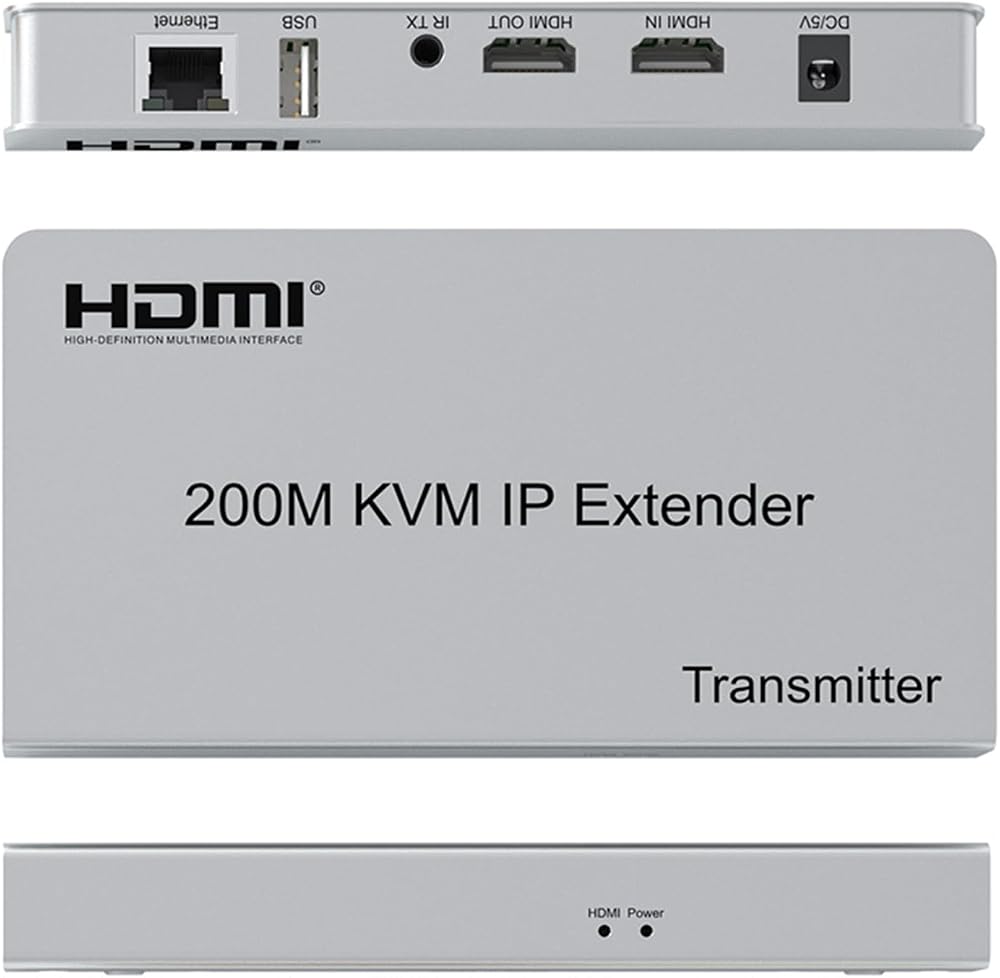

XYKJOBC HDMI KVM IP Extender 200M 1080P RJ45 Cat6/7 USB Mouse Keyboard

The XYKJOBC HDMI KVM IP Extender allows you to transmit high-definition HDMI video and KVM (USB mouse and keyboard) signals over an IP network. Utilizing a single Cat5e/6/7 cable, this extender can reach distances of up to 200 meters from your source device, making it ideal for various professional setups including PCs, DVRs, and laptops.

Important Note: This listing is for the Transmitter (TX) unit only. Receiver (RX) units are sold separately to allow for flexible system configuration, including point-to-point, point-to-multipoint, and cascade connections via a Gigabit Ethernet switch. For optimal performance, a Cat6, Cat6a, or Cat7 Ethernet cable is strongly recommended. Cat5e cable is not advised for use with this product.

Key Features

• Supports HDMI KVM over IP extension for distances up to 200 meters
• Achieves 1080P Full HD resolution (also supports 480p, 720p)
• Connects via standard RJ45 Cat5e/6/7 Ethernet cable (Cat6/6a/7 recommended)
• Enables USB mouse and keyboard extension for remote control
• Supports flexible networking modes: Point-to-Point, Point-to-Multipoint, and Cascade connection using a Gigabit switch
• Integrated IR remote control extension (38 KHz;NEC)
• Adheres to 802.3 Ethernet standard
• Features HDCP1.4 support
• Utilizes MJPEG Decoding Mode
• Pure hardware design: Plug and play, no additional software required

Specifications

• Resolutions: 480p, 720p, 1080p
• Audio Sample Rate: 32kHz, 44.1kHz, 48kHz
• IR Remote Control: 38 KHz; NEC
• Power Adapter: DC: 5V/1A
• Max Power Consumption (Sender): 3W
• Dimensions (L-W-H): Approx. 163 x 87 x 24mm
• Operating Temperature/Humidity: 0℃-45℃ / 10%-80%RH (non-condensing)
• Storage Temperature/Humidity: -10℃-70℃ / 5%-90%RH (non-condensing)

What's Included (Transmitter Unit Only)

• 1 x Transmitter (TX) Unit
• 1 x USB Cable
• 1 x IR Cable
• 1 x 5V Power Supply
