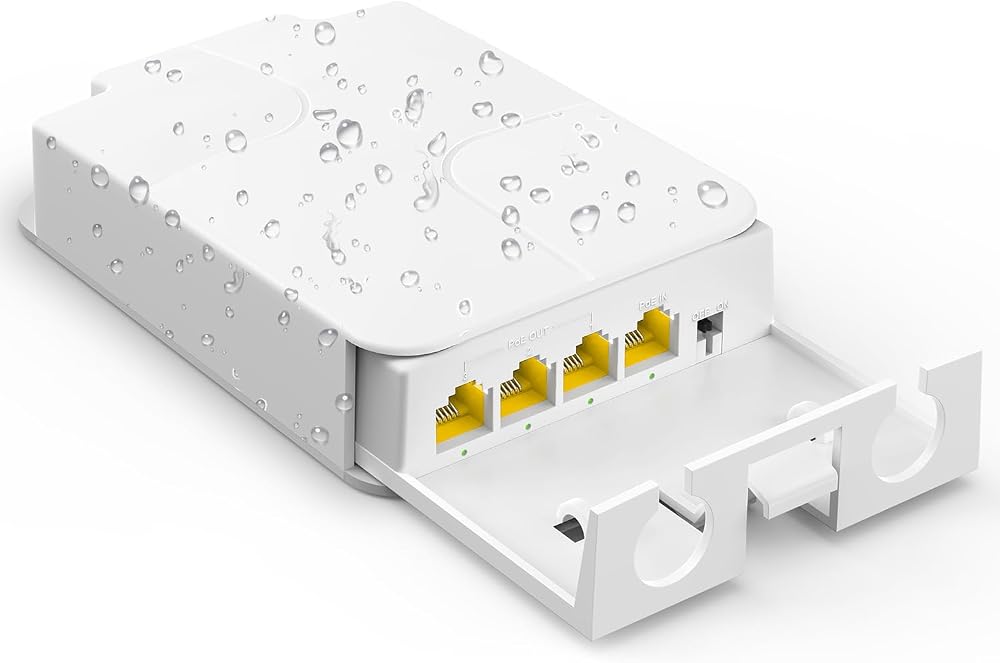

YuanLey Outdoor Gigabit PoE Extender 1-3 Out IP66 Waterproof VLAN 100m Repeater

YuanLey Outdoor Gigabit PoE Extender

Expand your network's reach with the YuanLey Outdoor Gigabit PoE Extender. This 1-in, 3-out device is designed for demanding outdoor environments, providing reliable power and data transmission up to 100 meters (328 feet) further. Ideal for connecting IP cameras, wireless access points, and other PoE-enabled devices outdoors.

Key Features

• 1-in, 3-out PoE Extender: Supports one PoE input and provides PoE power to up to three PoE devices simultaneously.
• Gigabit Speed: Offers 10/100/1000Mbps data transmission speeds.
• Extended Range: Extends PoE power and data transmission an additional 100 meters (328 feet).
• IEEE802.3af/at Compliant: Fully compatible with standard IEEE802.3af and IEEE802.3at PoE switches, injectors, and NVRs.
• VLAN Support: Ports 1-3 support VLAN isolation to reduce network traffic and enhance security.
• 3-Level Cascade: Achieve a total transmission distance of up to 1312 feet (400 meters) with three cascaded YuanLey PoE repeaters.
• IP66 Waterproof Rating: Robust unibody housing and seamless design provide excellent water resistance for outdoor use.
• Plug and Play: Unmanaged repeater requires no setup. Simply connect with a network cable for instant expansion.
• Compact and Mountable: Small size supports wall mounting for flexible installation in various locations.

Specifications

• Brand: YuanLey
• PoE Standard: IEEE802.3af/at
• PoE Voltage: 44-57V
• Max Input Power: 30W
• Max Output Power: 24W
• Per Port Output: Less than 8W for standard PoE devices (e.g., IP phones, security cameras, IP speakers).
• Transmission Distance: 100 meters (328 feet) per unit.
• Data Speed: 10/100/1000Mbps (Gigabit)
• Waterproof Rating: IP66
• Mounting: Wall Mount
