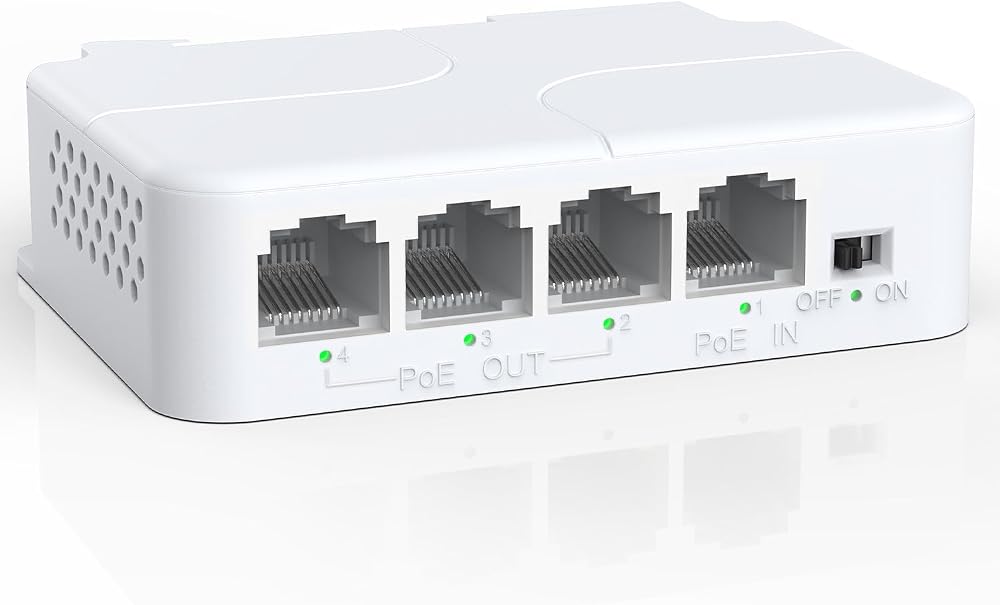

YuanLey 4 Port PoE Extender 3 Out 802.3af/at 100Mbps 100m Wall Din Rail

The YuanLey 4 Port PoE Extender is designed to significantly expand your Power over Ethernet (PoE) network. With 1 PoE input and 3 PoE outputs, this repeater allows you to power multiple PoE-compatible devices and extend your network's reach without the need for additional power sources.

Key Features

• 4-Port Design: Features 1 PoE input and 3 PoE outputs to connect and power up to three PoE devices.
• PoE Standard Compliance: Fully compatible with IEEE 802.3af and IEEE 802.3at PoE standards, working seamlessly with standard PoE switches, injectors, and NVRs.
• Extended Transmission: Each extender adds an additional 330ft (100m) to your PoE data transmission distance.
• Cascading Capability: Supports up to 3 levels of cascade, enabling total PoE data transmission distances of up to 1312ft (400m).
• Plug and Play: An unmanaged PoE repeater requiring no setup or external power. Simply connect a network cable to expand your PoE network.
• Automatic Device Detection: Automatically detects and powers compliant standard Powered Devices (PDs).
• Compact and Versatile Mounting: Space-saving design (3.2" x 2" x 1") supports both wall mount and DIN-rail mount for flexible installation.

Technical Specifications

• PoE Ports: 1 PoE In, 3 PoE Out
• Data Speed: 10/100Mbps
• PoE Voltage: 44-57V
• Max PoE Input: 30W
• Max PoE Output: 24W (Each port can power standard PoE devices less than 8W)
• Max Extension Per Unit: 330ft (100m)
• Max Cascaded Extension: 1312ft (400m) with 3 extenders
• Mounting Options: Wall Mount, DIN-Rail Mount
• Dimensions: 3.2" x 2" x 1"

Versatile Applications

• Ideal for extending PoE network to IP cameras for security surveillance.
• Suitable for powering IP phones in office or commercial settings.
• Connects and powers Access Points (APs) for expanded Wi-Fi coverage.
• Powers other standard PoE devices such as IP speakers and sensors.
