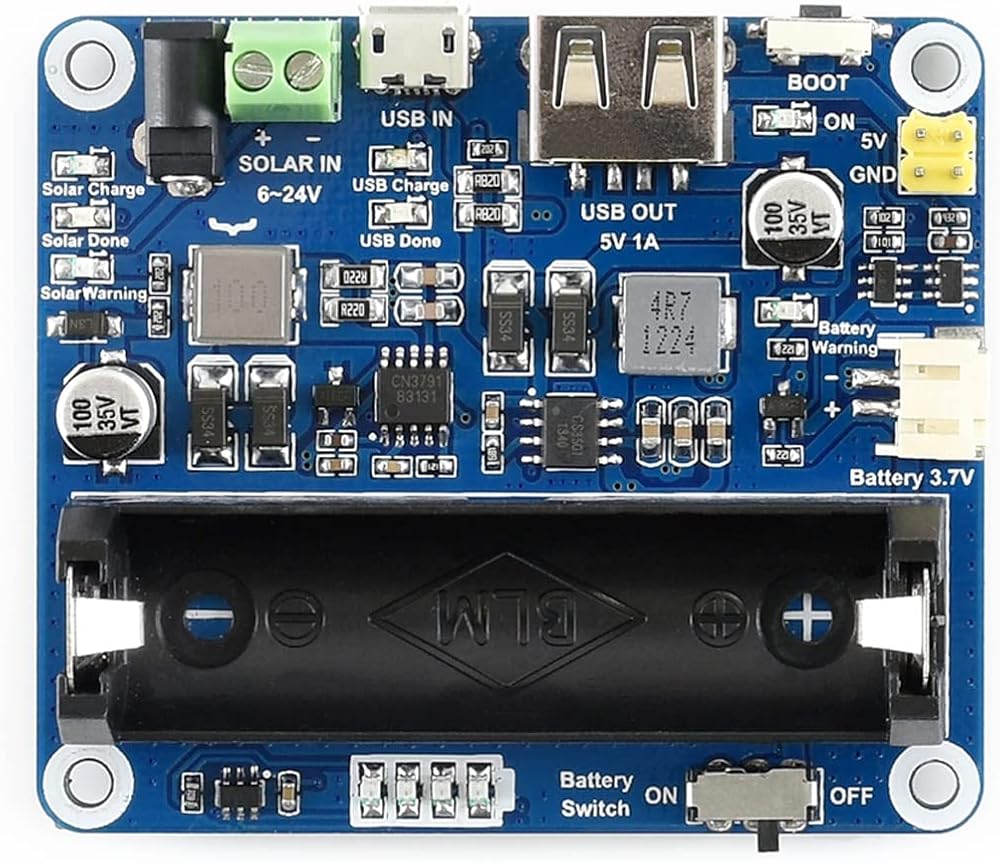

Waveshare Solar Power Management MPPT Charger USB 6-24V Panel IoT Projects

Waveshare Solar Power Management Module

This Waveshare Solar Power Management Module is designed for low-power IoT and environmental protection projects, offering efficient and safe solar charging capabilities. It features MPPT (Maximum Power Point Tracking) for optimized solar panel efficiency and multiple protection circuits for stable operation.

Key Features

• MPPT Function: Maximizes solar panel charging efficiency.
• Versatile Input: Supports 6V~24V solar panels via DC-002 jack or screw terminals.
• Dual Output: Provides 5V output through pinheaders and a USB port.
• Charging Options: Supports solar panel and USB connection for battery charging.
• Stable Performance: Onboard high-capacity capacitors reduce ripple for stable output.
• Battery Compatibility: Includes 14500 battery holder and PH2.0 connector for various 3.7V rechargeable Li batteries.
• Status Indicators: Multiple LED indicators for monitoring solar panel and battery status.
• Multi Protection Circuits: Includes over charge, over discharge, reverse protection, over heat, and over current protection.
• MPPT SET Switch: Optimize charging efficiency by selecting the appropriate level.

Important Caution

CAUTION: DO NOT put any non-rechargeable batteries, like dry cells, into the battery holder. Serious consequences including explosion may occur if you try to charge a non-rechargeable battery.

Specifications

• Brand: Waveshare
• Solar Panel Input Voltage: 6V~24V
• Output Voltage: 5V
• Battery Types Supported: 3.7V rechargeable Li batteries
• Input Connectors: DC-002 jack, screw terminal
• Battery Connectors: 14500 battery holder, PH2.0 connector
• Output Interfaces: Pinheaders, USB port
• Protection Features: Over charge, over discharge, reverse protection, over heat, over current
