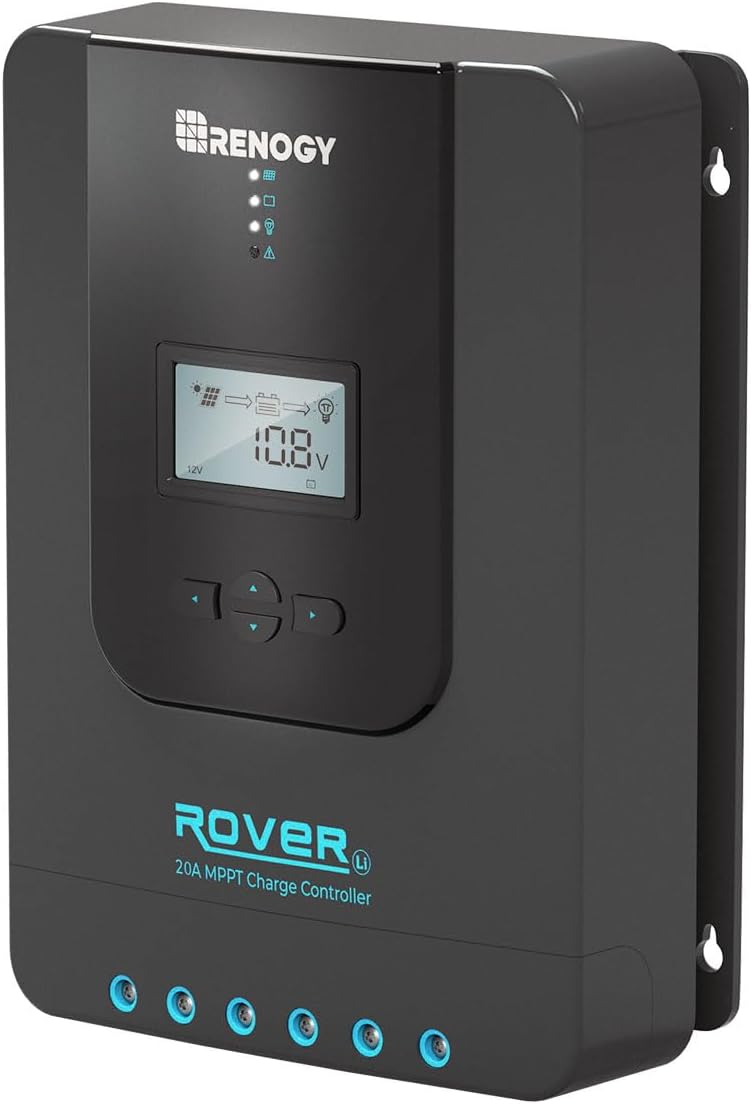

Renogy MPPT Charge Controller 20A 12V/24V Auto 98% Efficient LCD

Key Features

• Brand: Renogy
• Model: MPPT Charge Controller
• Current Rating: 20A
• System Voltage: 12V or 24V auto-detect
• Efficiency: High tracking efficiency up to 99%, peak conversion up to 98%
• Architecture: Die-cast aluminum design for enhanced heat dissipation
• Battery Types: Supports gel, sealed, flooded lead acid and lithium batteries
• Charging Stages: 4-stage charging for lead acid; 2-stage for lithium
• Display: LCD with status indicators and error codes
• Load Control: Optional load terminals with monitoring and timer controls
• Remote Monitoring: RS232 port for Renogy DC Home app and compatible modules

Specifications

• Voltage: 12V/24V auto-detect (non-lithium)
• Charge Algorithm: Bulk, Absorption, Float, Equalization for lead acid; Bulk and Absorption for lithium
• Construction: Die-cast aluminum housing
• LCD/Indicators: Display solar charging and battery operation information

This Renogy MPPT Charge Controller combines advanced MPPT technology with robust construction to optimize solar charging efficiency in varied conditions. Compatible with multiple battery chemistries and designed for straightforward installation and monitoring.
