ZYWUOY HT5 Upgraded UWB Log Periodic Antenna 1300MHz-10GHz Directional Test

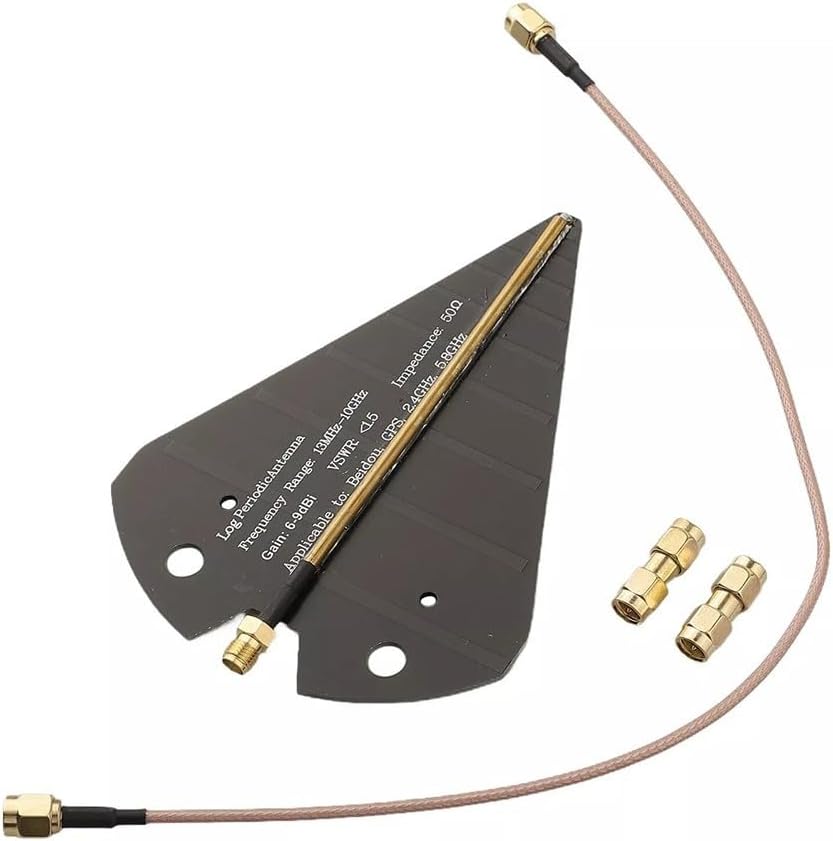

ZYWUOY HT5 Upgraded UWB Log-Periodic Antenna

This is the upgraded HT5 version of the ZYWUOY UWB Log-Periodic Antenna, designed for broad application in wireless communications and testing. It offers excellent performance across a wide frequency range.

Key Features

• Upgraded HT5 Version: Enhanced performance for 2.4G/5.8G VTX and broader communication needs.
• Wide Frequency Bandwidth: Operates from 1300MHz to 10GHz, making it suitable for various applications.
• Linear Polarized Directional Antenna: Provides focused signal reception and transmission.
• Versatile Applications: Ideal for Beidou, GPS, 2.4G, 5.8G communications, and microwave darkroom testing.
• High Gain: Offers 6-9dBi directional gain across the frequency band.
• Low Standing Wave Ratio (SWR): Less than 1.5 from 13MHz to 10GHz ensures efficient signal transmission.
• EMC Testing Ready: Delivers continuous high field strength for electromagnetic compatibility testing.
• Broadband Measurement & Direction Finding: Suitable for spectrum analysis, signal analysis, positioning, and direction finding tasks.

Specifications

• Part Name: UWB Log-Periodic Antenna
• Model: HT5 Upgraded Version
• Brand: ZYWUOY
• Material: PCB
• Color: Black
• Antenna Size: 130 x 90 x 1.6mm
• Antenna Bandwidth: 1300MHz - 10GHz
• Impedance: 50ohms
• Gain: 6+/-1dBi
• Maximum Power Withstand: 50W
• SWR: <1.5
• Connector Type: SMA Female Connector

Package Contents

• 1 x HT5 Upgraded Version Antenna
• 1 x SMA Male to Male Adapter
