NooElec Iridium Patch Antenna 3dBi SMA Connector L-Band 1620MHz PCB

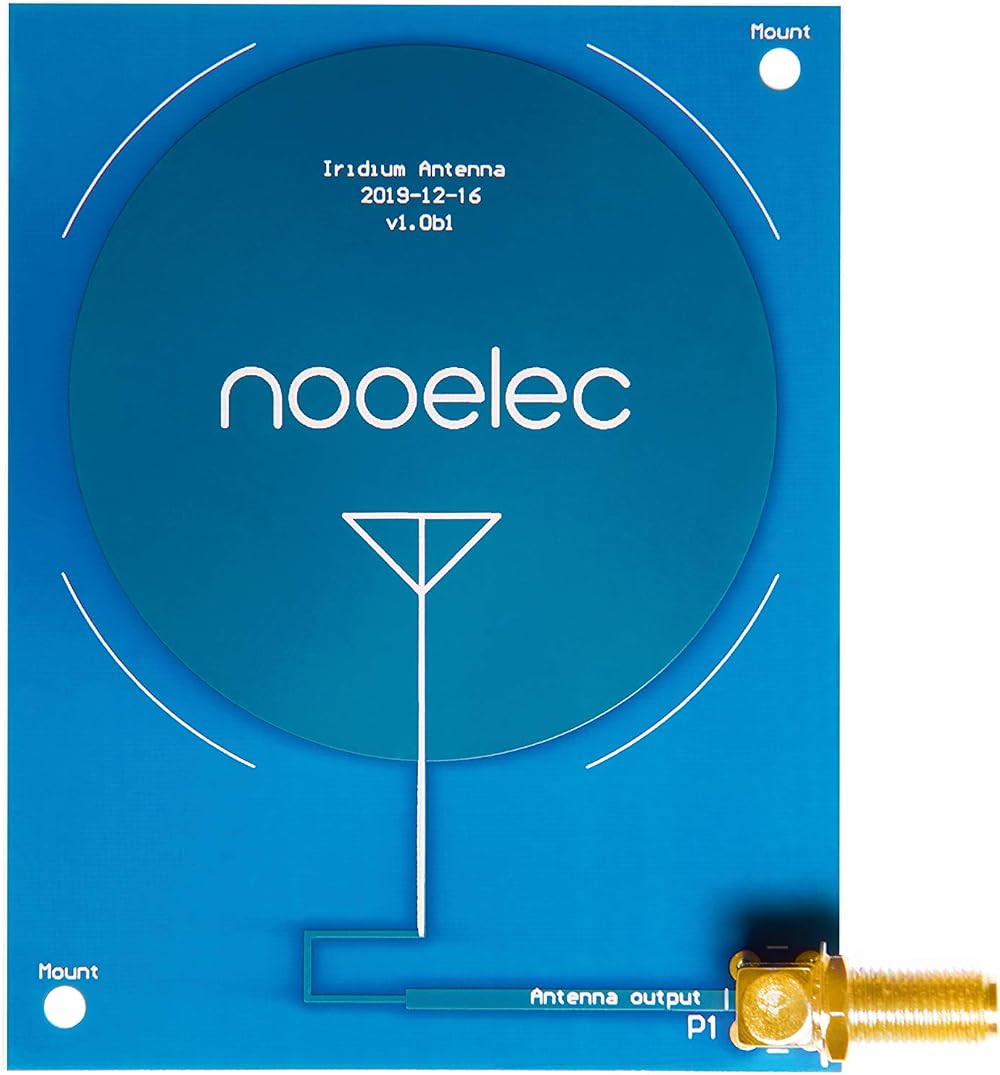

NooElec Iridium Patch Antenna

High performance L-Band patch antenna designed for Iridium and other L-Band applications. This antenna features a high gain of approximately 3.1dBi and a female SMA connector for easy integration. A male to male SMA connector is included to facilitate connection to your equipment.

The antenna excels with both right-hand circularly polarized (RHCP) and linear signal types, offering excellent performance across the entire Iridium signal range. Its compact size of 82mm x 80mm (3.25" x 3.10") and lightweight design (25g / 0.90oz) make it ideal for various setups.

Easily receive Iridium broadcasts, even with suboptimal satellite pointing, significantly simplifying your setup process. This antenna is particularly effective when used in conjunction with NooElec's Iridium LNA modules, such as SAWbird IR and SAWbird+ IR.

Key Features

• Brand: NooElec
• Type: Patch Antenna
• Application: Iridium and L-Band
• Gain: ~3.1dBi
• Center Frequency: 1620MHz (1.62GHz)
• Bandwidth: 80MHz+
• Polarization Compatibility: RHCP and Linear
• Connector: Female SMA (Male to Male SMA adapter included)
• Dimensions: 82mm x 80mm (3.25" x 3.10")
• Weight: 25g (0.90oz)

Specifications

• Brand: NooElec
• Product Name: Iridium Patch Antenna
• Frequency: 1620MHz center, 80MHz+ bandwidth
• Gain: ~3.1dBi
• Connector Type: SMA Female
• Included Accessory: Male to Male SMA cable
• Physical Dimensions: 82mm x 80mm
• Weight: 25g
