T.I.P. 31311 HWW 1300/50 Plus TLS Water Pump 50L Tank Dry Run Protection

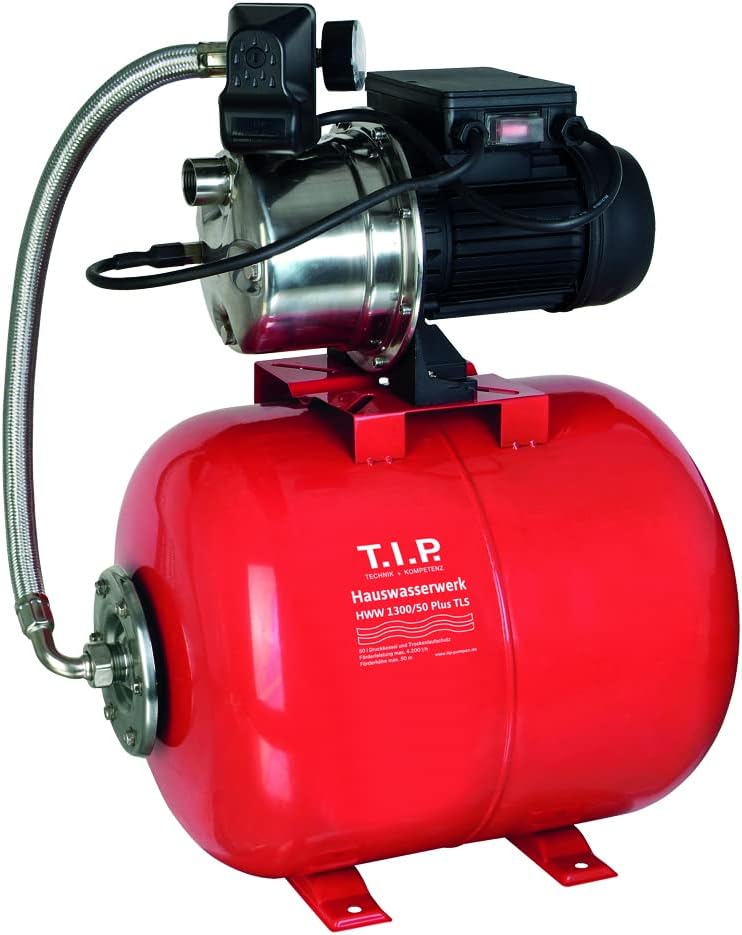

T.I.P. HWW 1300/50 Plus TLS Domestic Water Work Pump

The T.I.P. special domestic water supply 1300/50 Plus TLS is a self-priming, high-performance pump designed for reliable water supply. It features a jet hydraulic system and thermal overload protection for durability. The high-quality pump housing is constructed from stainless steel. Integrated protection against dry running prevents damage from operation without water. The exceptionally large 50-litre pressure vessel reduces switch-on frequency, leading to decreased energy consumption and reduced operating noise. The pump is suitable for drinking water due to its food-grade membrane.

Key Features

• Brand: T.I.P.
• Model: HWW 1300/50 Plus TLS
• Item Number: 31311
• Dry Run Protection: Integrated
• Pump Housing: Stainless Steel
• Pressure Vessel Volume: 50 litres
• Food Grade Membrane: Suitable for drinking water
• Applications: Automatic supply for houses from wells and cisterns, garden watering, automatic irrigation, pressure boosting in existing supply networks

Specifications

• Engine Power: 1,200 Watts
• Max. Pump Head: 50 m
• Max. Flow Rate: 4,200 litres per hour
• Max. Pressure: 5.0 bar
• Max. Suction Height: 9 m
• Max. Liquid Temperature: 35° C
• Suction Connector: Internal thread 30.93 mm (1 inch)
• Pressure Connector: Internal thread 30.93 mm (1 inch)
• Connecting Cable Length: 1.5 m
• Packing Dimensions: 70 x 38 x 71 cm
• Gross Weight: 21.2 kg

Performance Data

The performance table shows the pump's capabilities at different delivery heads:

• 42 m Delivery Head: 18 l/min (1.1 m³/h)
• 40 m Delivery Head: 20 l/min (1.2 m³/h)
• 30 m Delivery Head: 42 l/min (2.5 m³/h)
• 20 m Delivery Head: 52 l/min (3.1 m³/h)
• 10 m Delivery Head: 63 l/min (3.8 m³/h)

Note: Delivery rate is dependent on discharge height, which is the vertical difference between the water surface and the extraction point.
