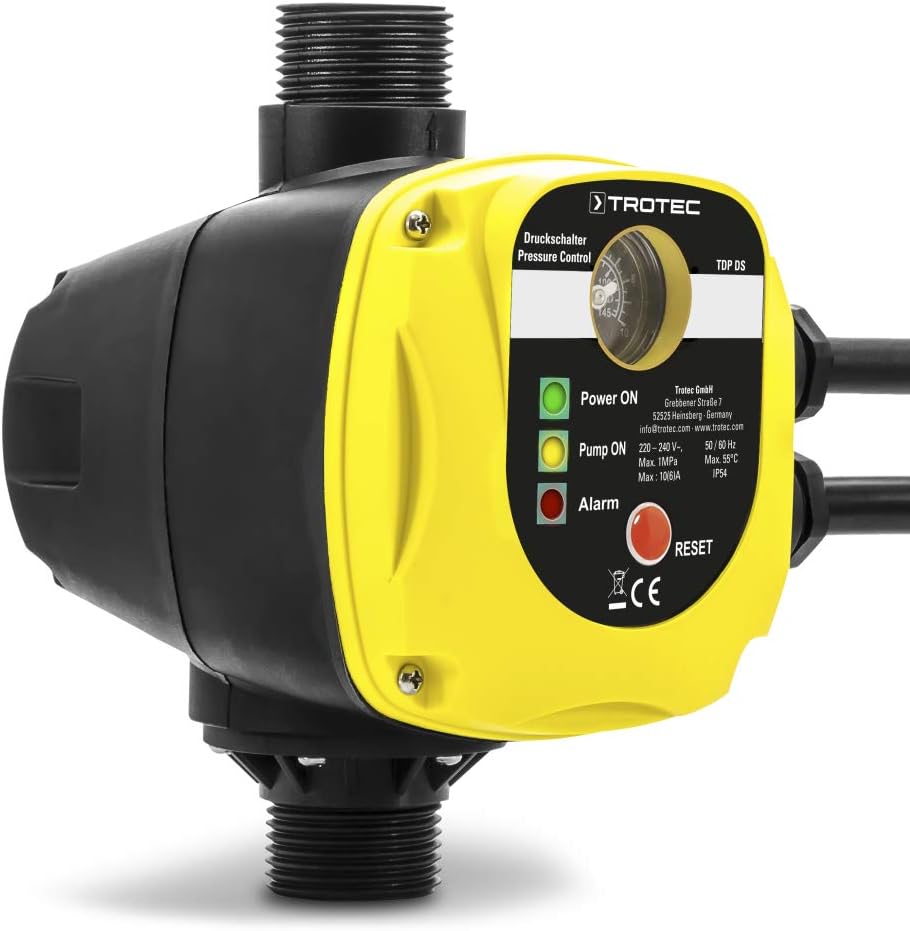

Trotec TDP DS Electronic Pressure Switch Pump Control Monitor Max 10 Bar

Trotec Electronic Pressure Switch TDP DS Pump Control

The Trotec TDP DS electronic pressure switch is a reliable solution for the automatic control of various water pumps, including deep well pumps, garden pumps, and centrifugal pumps. It is ideal for applications such as garden irrigation, domestic water supply, water delivery, pool water removal, and cleaning tasks. This device operates without its own mains plug, requiring connection to your pump's power cord.

The compact pressure switch connects between your pump and the connected consumer (e.g., tap or garden hose), enabling automatic water delivery without manual pump operation. It maintains a constant water pressure in the connected pipe system, ensuring consistent performance during garden irrigation or domestic water supply.

The pressure switch continuously monitors the line pressure. Upon detecting a pressure drop, it automatically activates the pump to restore pressure. Once the preset line pressure is reached, the pump control switches off the pump automatically.

Key Features

• Automatic Pump Control: Manages pump operation based on water pressure.
• Constant Water Pressure: Ensures consistent flow for various applications.
• Integrated Monitoring: Permanently monitors line pressure for automatic activation/deactivation.
• Universal Compatibility: Features 1-inch external threads for water inlet and outlet, compatible with standard connections.
• Power Handling: The TDP DS can power a connected pump up to 1,100 W.
• Open Cable End: Requires connection of your pump's power cord to the switch's open cable end.

Specifications

• Brand: TROTEC
• Model: TDP DS
• Maximum Pressure: 10 bar
• Inlet/Outlet Thread Size: 1 inch (external)
• Pump Power Compatibility: Up to 1,100 W
• Plug Type: Without mains plug (requires connection of pump power cord)
