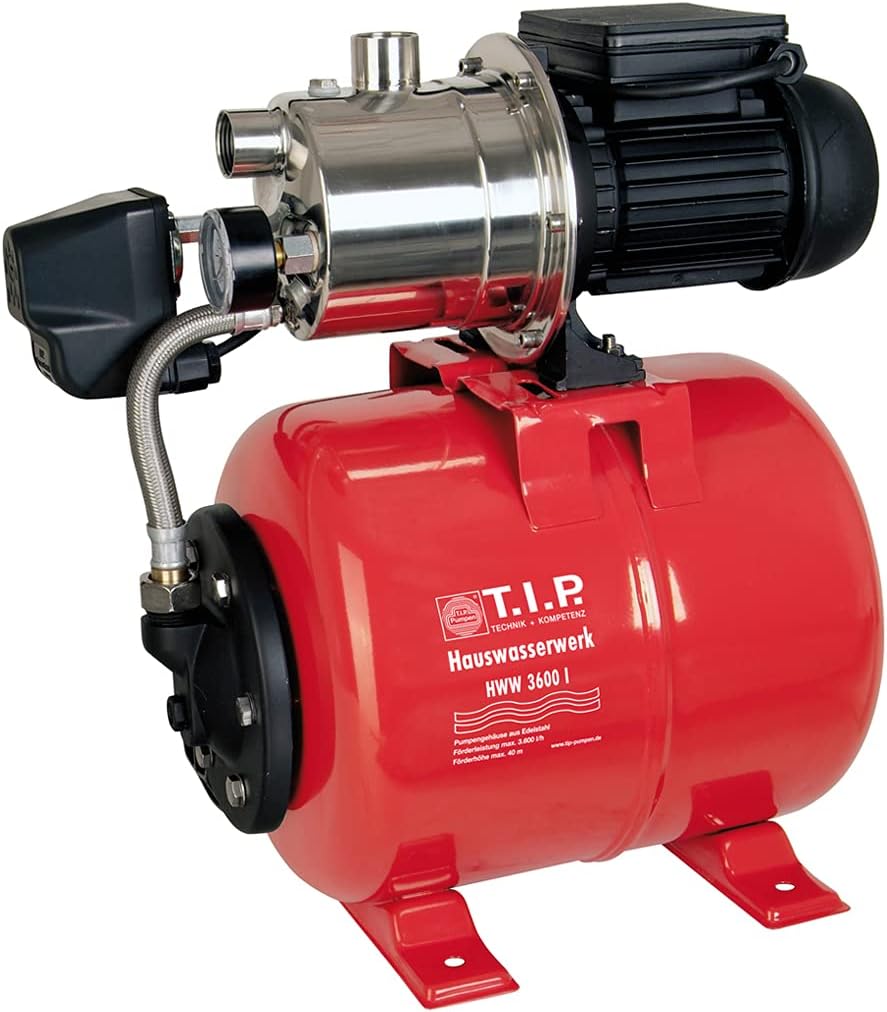

T.I.P. HWW 3600 I Booster Pump 650W 3600 L/H 40m Head Stainless Steel 18L Tank

T.I.P. HWW 3600 I Domestic Water System Booster Pump

The T.I.P. HWW 3600 I is a powerful and compact all-round domestic water system, ideal for a wide range of applications. It is perfectly suited for automatic domestic water supply from wells and cisterns, garden irrigation, automatic irrigation systems, and rainwater use.

Key Features

• Stainless steel pump housing for durability.
• 18-litre pressure boiler with a high-quality EPDM membrane.
• Maintenance-free capacitor motor with thermal overload protection.
• Suitable for operating irrigation systems, capable of connecting up to 2 sprinklers.

Specifications

• Brand: T.I.P.
• Model: HWW 3600 I
• Motor Power: 650 watts
• Maximum Discharge Head: 40 meters (4.0 bar)
• Maximum Flow Rate: 3,600 litres per hour
• Maximum Suction Height: 9 meters
• Pump Housing Material: Stainless Steel
• Pressure Vessel Volume: 18 litres (Steel)
• Pressure Connection: 1 inch IG (30.93 mm)
• Suction Connection: 1 inch IG (30.93 mm)
• Maximum Medium Temperature: 35 °C
• Connection Cable Length: 1.5 meters (H05RN-F)

Performance Chart

The flow rate of the pump varies depending on the delivery height (the vertical difference between the water surface and the extraction point):

• 35 m Discharge Head: 350 litres per hour
• 30 m Discharge Head: 1,050 litres per hour
• 20 m Discharge Head: 1,950 litres per hour
• 10 m Discharge Head: 3,100 litres per hour

Irrigation System Compatibility

This model is designed to efficiently power irrigation systems. It is suitable for connecting a maximum of 2 sprinklers, assuming typical usage of approximately 600 L/H water flow and 2 bar pressure per sprinkler, with a maximum suction height of 5 meters.

The 'suction height' refers to the vertical difference between the water surface and the pump itself.
