Revotech 3 Port Gigabit PoE Extender POE+ Repeater 1000Mbps IEEE802.3af/at 100m

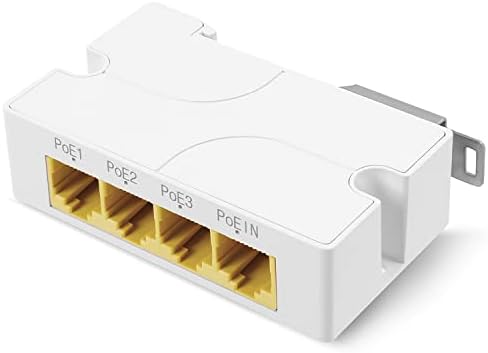

Revotech 3 Port Gigabit PoE Extender

Extend your network range and power multiple PoE devices with the Revotech POE5005G 3 Port Gigabit PoE Extender. This cost-effective solution allows you to expand your Ethernet network up to 200 meters (656 ft) from your PoE source, delivering both data and power.

Key Features

• Extends PoE Range: Boosts Ethernet network range beyond 100 meters (328 ft), up to 200 meters (656 ft) total distance from PoE source.
• 3 Port Output: Provides 3 RJ45 ports for connecting multiple PoE devices.
• Gigabit Speeds: Supports 10/100/1000Mbps transfer rates for high-speed data transmission.
• IEEE 802.3af/at Compliant: Works with both PoE and PoE+ devices.
• Plug and Play: Easy installation with no configuration required.
• Daisy-Chain Capability: Can be daisy-chained up to 700 meters (6 pieces).

Important Notes

• This extender requires power from a PoE switch, PoE injector, or PoE NVR to function. It is not a standalone PoE switch.
• Avoid placing heavy objects on the extender.
• Keep the extender away from wet environments and install it in a waterproof location if used outdoors. It is suggested for indoor use.

Specifications

• Brand: Revotech
• Model: POE5005G
• PoE Input: 1 RJ45 port (DC 48-57V)
• PoE Output: 3 RJ45 ports
• Input Power: 30 Watts Max
• Output Power: 15 Watts Max per port
• Transfer Rate: 10/100/1000Mbps
• Network Medium: Cat5, Cat5e, Cat6, Cat6e, UTP cable (less than 120m)
• Daisy Chain Distance: up to 700m (6 pieces)
• Repeater Mode: Store and forward
• MAC Address Table: 2K
• Packet Buffer Memory: 48 Byte
• Switching Capacity: 400Mbps
• PoE Standard: IEEE 802.3af/at
• PoE Cable Core: 1/2(+), 3/6(-)
• Power Supply Type: Mode A, End-Span
• LED Display: PoE Working status, Ethernet
• Network Protocol: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af
• Storage Humidity: 5%~90% (No Condensation)
• Operating Temperature: -10～45℃
• Dimension: 81mm x 51mm x 23mm (L*W*H)
• Weight: 60g

Package Contents

• 1 x Revotech 3 Port POE Extender (POE5005G)
