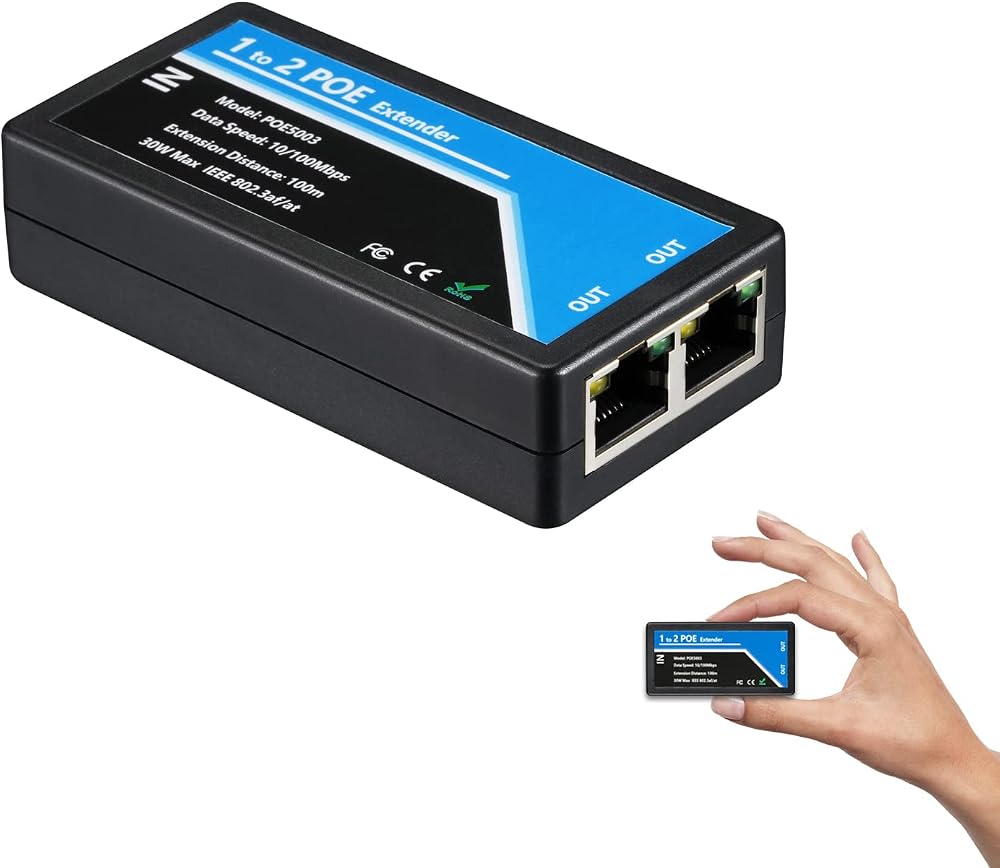

Revotech 2 Port PoE Extender IEEE 802.3af/at 100Mbps 100m 1 in 2 out

Overview
Revotech 2 Port PoE Extender provides 1 PoE input port and 2 PoE output ports to power and connect PoE devices over a single Ethernet run. Designed for cameras and other PoE devices, it extends network reach while delivering power via standard PoE.

Key Features

• 1 In / 2 Out PoE extender with one PoE input up to 30W and two PoE outputs up to 15W each.
• Distance Extension Extends Ethernet by up to 100 meters (328 feet); cascade for up to 700 meters (2,296 feet).
• IEEE Standard Compliant with IEEE 802.3af/at for data rates of 10/100 Mbps.
• Plug and Play Powered through PoE input; no local power supply or configuration required. Auto-detects and protects PoE equipment from misconnection.
• Compact Design Lightweight and compact: 52 g, dimensions 8.8 x 4.4 x 2.2 cm. Easy to add PoE coverage to extended layouts.

Specifications

• Ports: 1 PoE input, 2 PoE outputs
• Power: Input up to 30W; outputs 15W each
• Data Rate: 10/100 Mbps
• Standards: IEEE 802.3af/at
• Cable: Cat5/Cat5e/Cat6/UTP or better
• Max Extension: 100 m per hop; up to 700 m in cascade

The device is intended for PoE deployments requiring extended reach while delivering power to two PoE devices over a single cable. It features automatic detection and protection to ensure safe operation of connected equipment.
