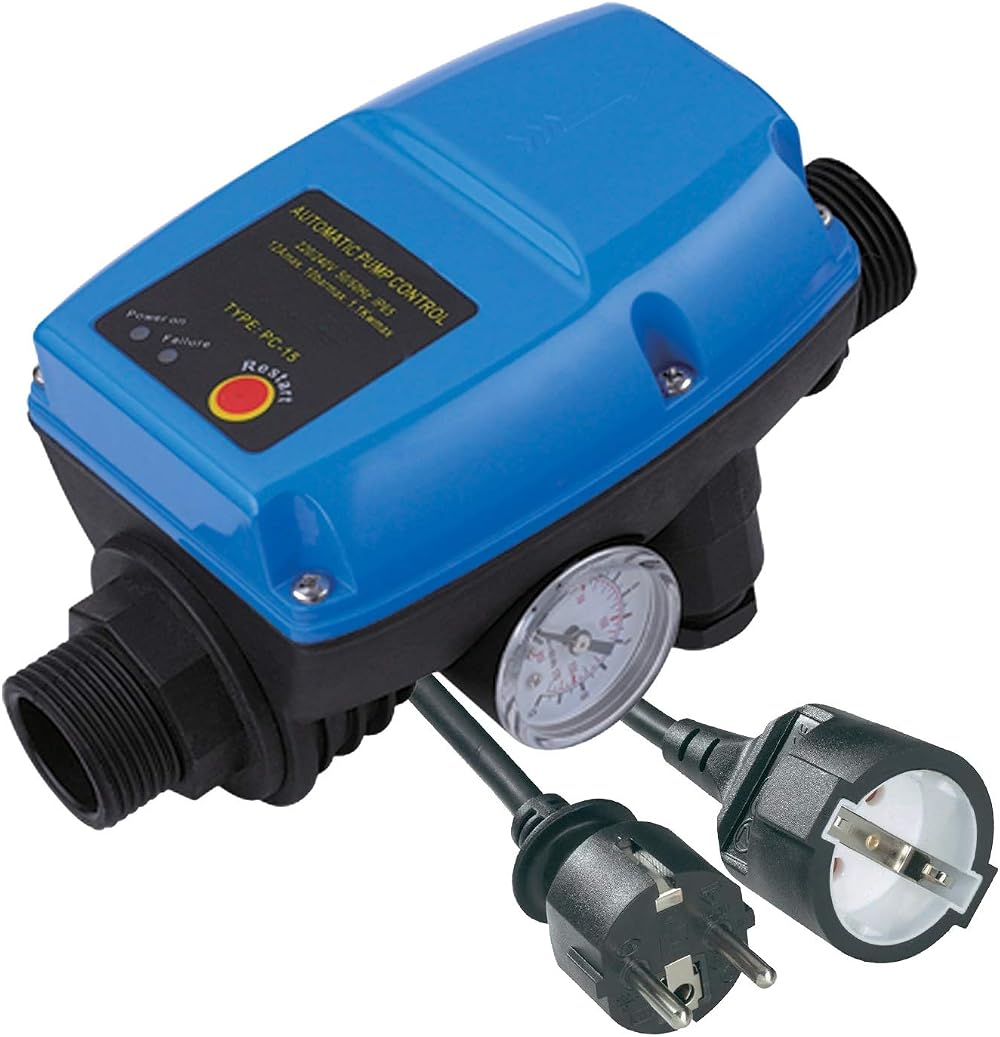

AMUR Pump Control Pressure Switch Automatic Controller 1.5 Bar Deep Well

AMUR Automatic Pump Control Pressure Switch

The AMUR Flow Monitor automatically controls the switching of your centrifugal or submersible pump. It precisely monitors the pressure within your pipe system, from the pump to the point of use. When water is drawn, pressure drops; once it falls below the adjustable 1.5 bar threshold, the monitor activates your connected pump to restore water supply. When no water is being used, the pump automatically shuts off.

This advanced flow monitor features integrated dry run protection. If the water source becomes empty, the pump is automatically switched off to prevent damage. A built-in check valve ensures the pipe system remains pressurized on the consumer side, preventing it from emptying.

The integrated pressure gauge allows you to monitor both the switch-on pressure and the overall system pressure. Please note: this switch unit is designed for pumps with a pressure build-up significantly above 1.5 bar.

Box Contents

• 1 piece. Flow Monitor AQUA-5-2 Automatic Controller (wired)
• User Manual

Technical Specifications

• Operating Voltage: 220/240 V at 50/60 Hz
• Nominal Current: 12 A
• Maximum Connection Power: 1.1 kW
• Start-up Pressure: 1 - 3.5 bar (adjustable)
• Preset Switch-on Pressure: 1.5 bar
• Max. Operating Pressure: 7 bar
• Max. Water Temperature: 35 °C
• Max. Volume Flow: 80 l/min
• Protection Class: IP65
• Features: Integrated Pressure Gauge
• Input Connection: 1 inch Male Thread
• Output Connection: 1 inch Female Thread
