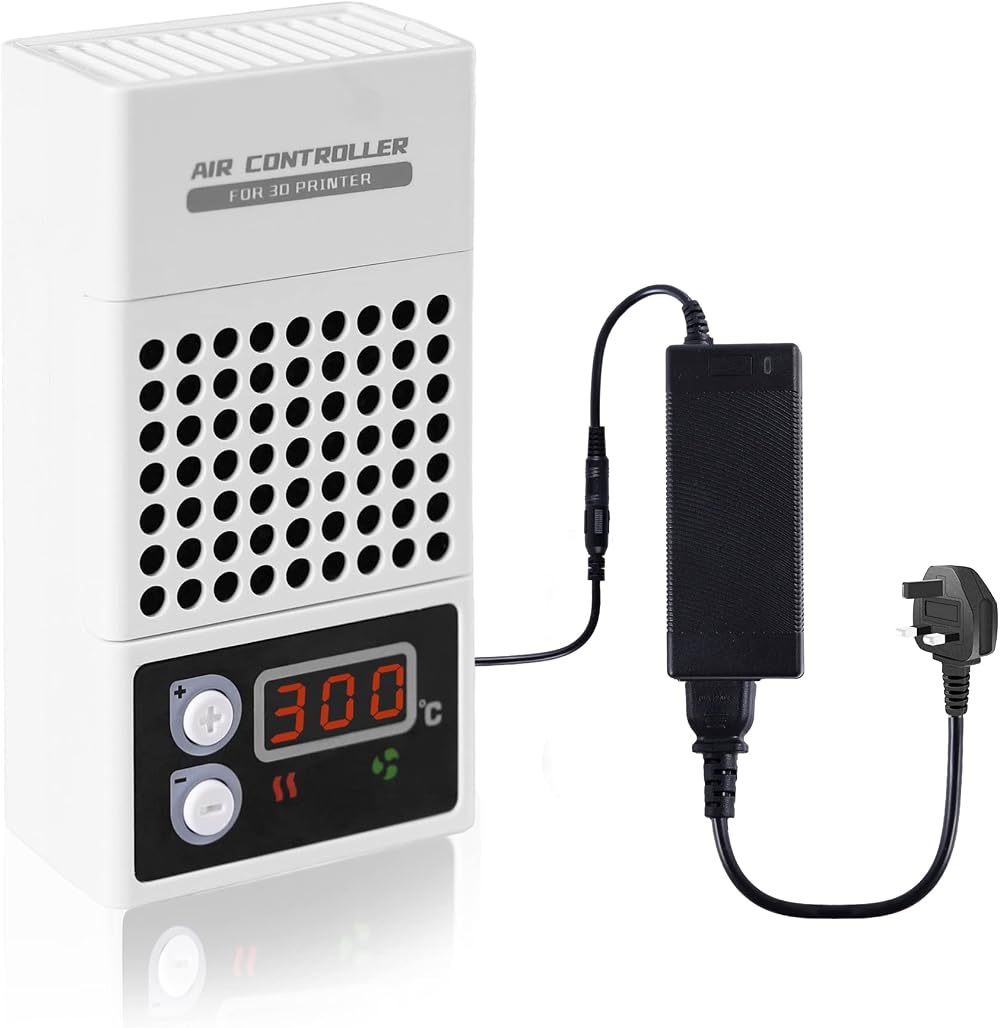

HCSSZ Mini Heater 3D Resin Printer Temp Controller Activated Carbon Filter LCD

Why You Need a Heater for Your Resin 3D Printer in Winter

Most resins have an ideal printing temperature of about 25℃ (77℉). If the temperature falls below this, the resin can become viscous, resulting in reduced print quality and even print failure. This mini heater is designed for resin printers to help you achieve better printing results.

Our professional design heaters are built for reliability and safety, capable of 24/7 operation. Unlike DIY solutions, this offers peace of mind.

How to Install

• Place the heater to the left of the 3D printer's Z-axis, ensuring it does not obstruct its movement.
• Pass the 5mm power cable through the printer tank.
• Remove the bottom tape and fix the heater on the left side of the printer's Z-axis.

How to Use

• Set a target temperature between 25℃ and 30℃.
• Wait for the temperature to reach the target and for the resin to warm up.
• Start printing.

Specifications

• Brand: HCSSZ
• Input: 110-240V 50/60Hz
• Heating Capacity: Max 50W
• Working Temperature: -20℃ (-4℉) to 50℃ (122℉)
• Set Temperature: 10℃ (50℉) - 50℃ (122℉)
• Size: 57x32x108mm / 2.24x1.26x4.25in
• Weight: 118g

Notes

• Please use this product indoors only.
• Do not use this heater for non-3D printer applications.
• Do not disassemble the unit without permission.
• Suitable for 8-15 inch LCD/DLP 3D resin printers. Some 6-inch printers may also be compatible. Ideal for most resin printer brands, including Creality, Anycubic, ELEGOO, and Frozen.
