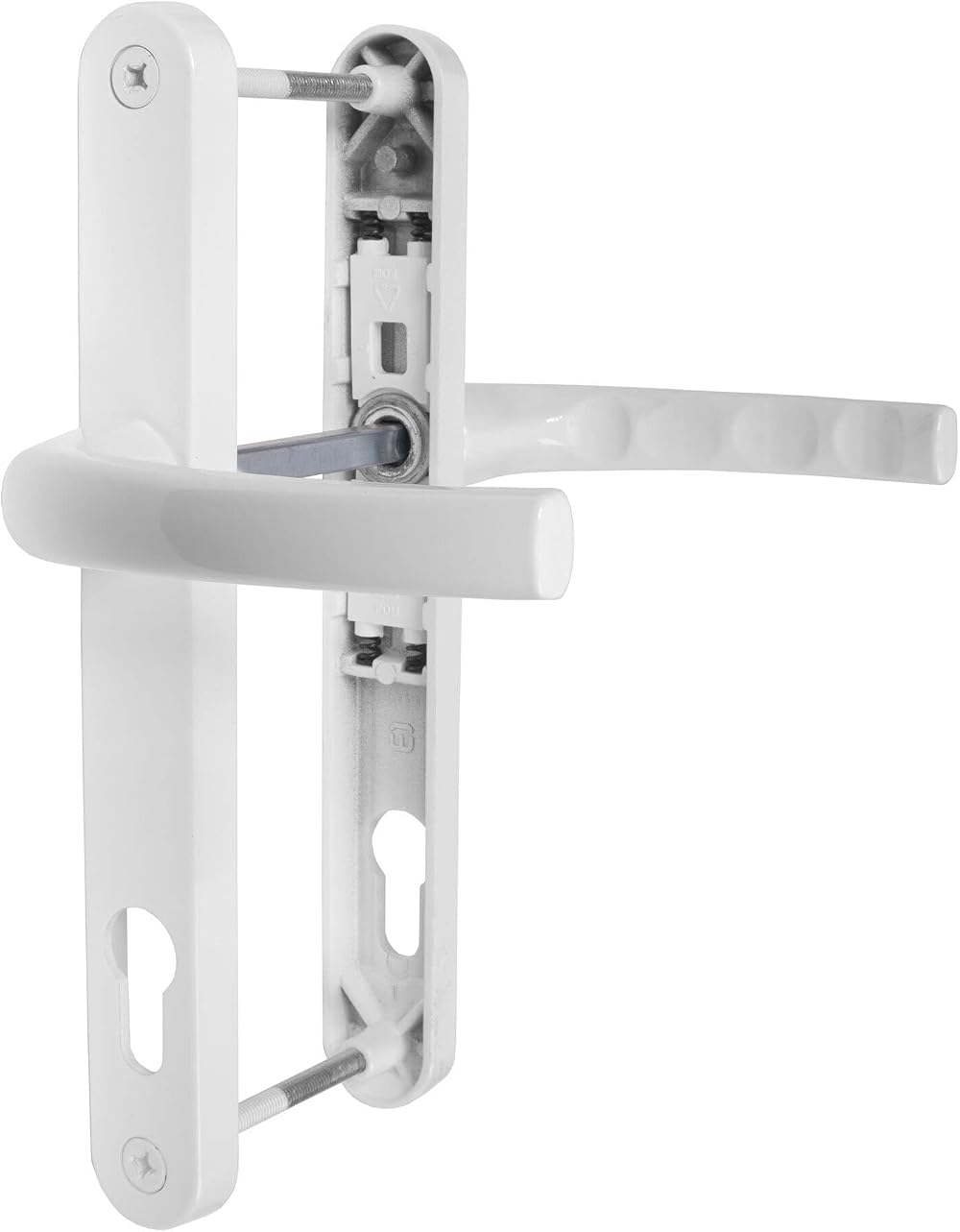

JCP uPVC Door Handle Pair 211mm Centres 92mm PZ White Backplate 240x30

Key Features

• Brand: JCP
• Type: uPVC door handle pair
• Backplate dimensions: 240 mm x 30 mm
• Spindle size: 8 mm
• Backset compatibility: screw-fixing centres 211 mm apart
• PZ centre: 92 mm
• Finish: White with powder-coated finish
• Non-handed: fits left- or right-opening doors
• Supplied includes: two spindles (108 mm and 133 mm) and four M6 screws (60 mm and 84 mm)

Compatibility and Fitting Instructions

• Compatibility must be confirmed before ordering: screw-fix centres 211 mm apart and PZ centre 92 mm.
• Suitable for solid doors 69–75 mm thick and composite doors 44–51 mm thick.
• For doors 52–68 mm thick, longer screws are supplied and must be trimmed to fit.
• Use a hand screwdriver only to avoid distortion to the door profile.
• Backplates align with screw-fixing holes at 211 mm centres.
• Install, then tighten guardingly to ensure spring cassettes operate correctly.

Technical Specifications

• Screw-fix centres: 211 mm
• PZ centre (spindle to cylinder): 92 mm
• Backplate dimensions: 240 mm × 30 mm × 12.5 mm
• Spindle size: 8 mm

Care and Maintenance

• Wipe with a soft cloth and mild detergent. Do not use abrasive cleaners or solvents.

Note: Thorough compatibility checks are essential. This product is designed for specific door thicknesses and fitting measurements to ensure proper spring operation of the lever handles.
