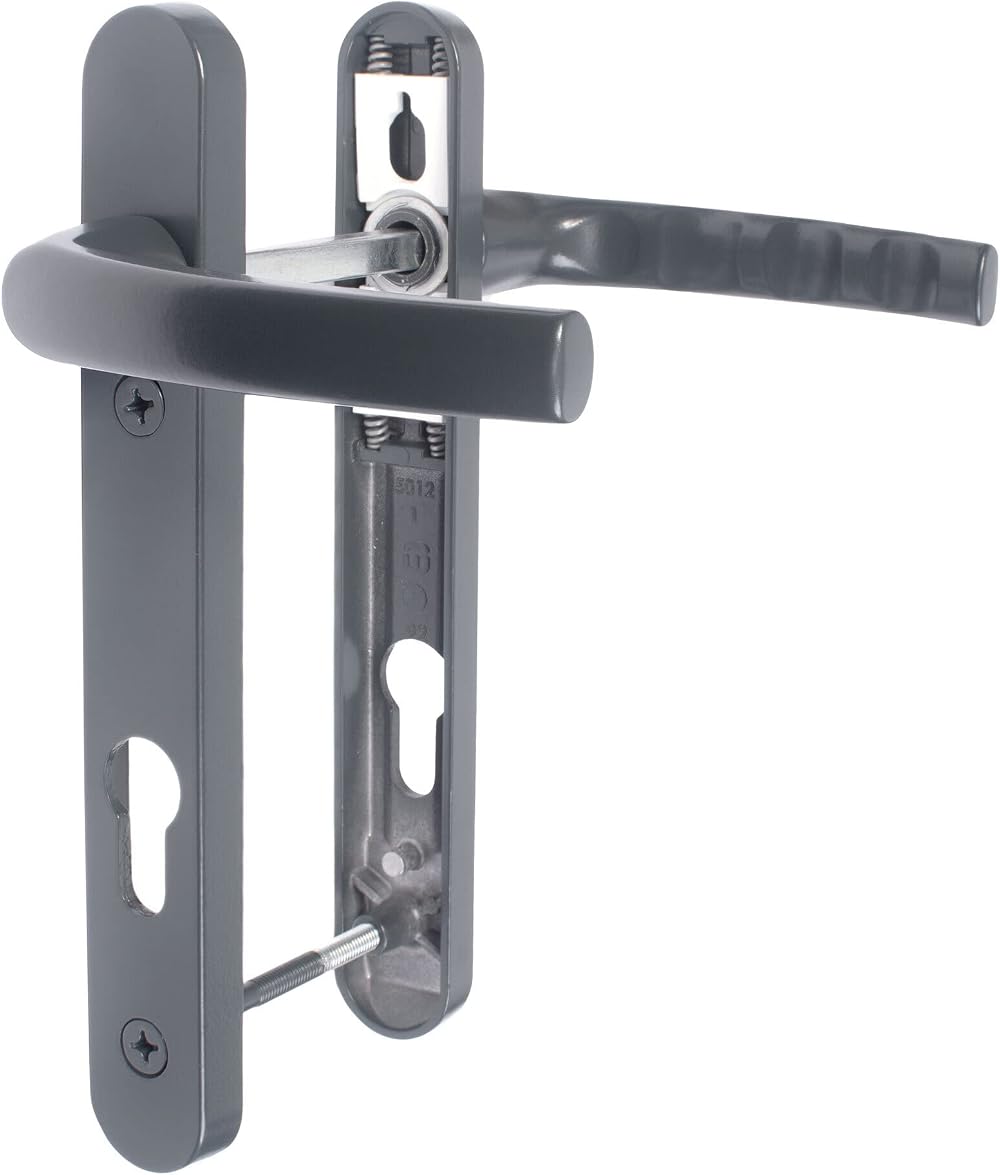

JCP uPVC Door Handle Pair 122mm 92mm PZ 220x30 Backplate Anthracite 7016

Key Features

• Brand: JCP
• Type: uPVC door handle pair with backplates
• Finish: Anthracite Grey 7016
• Backplate dimensions: 220 mm x 30 mm
• Spindle size: 8 mm
• Screw-fixing centres: 122 mm
• PZ centre (spindle-to-cylinder): 92 mm
• Spindle options included: 8 mm, lengths 108 mm and 133 mm
• Complete kit: four M6 screws (two 60 mm, two 84 mm) plus spindles
• Non-handed: fits left- or right-opening doors

Product Description

The JCP uPVC Door Handle Pair with backplates provides a modern, ergonomic lever design with integrated spring cassettes for automatic return. Finished in durable Anthracite Grey (7016) with a BS EN 1670 Grade 5 corrosion resistance coating, suitable for both uPVC and composite doors.

Compatibility notes: measure your door to ensure screw-fix centres are 122 mm apart and PZ centre is 92 mm. This kit covers door thicknesses 44–51 mm and 69–75 mm; for 52–68 mm, trim longer screws as required. Use a hand screwdriver for installation to avoid profile distortion.

Installation Guide (Summary)

• Backplates align with 122 mm screw centres.
• Use two 60 mm screws for doors 44–51 mm or two 84 mm screws for 69–75 mm.
• For 52–68 mm doors, use longer screws and trim to fit.
• Slightly loosen cylinder screw to aid alignment; tighten after fitting.
• Insert 8 mm spindle through lock mechanism and attach handles.
• Secure from inside with hand screwdriver; trim excess screw length if needed.
• Avoid overtightening to ensure spring operation.
