HIKMICRO B01 Thermal Camera 320x240 SuperIR WiFi 49152 Pixels 25Hz

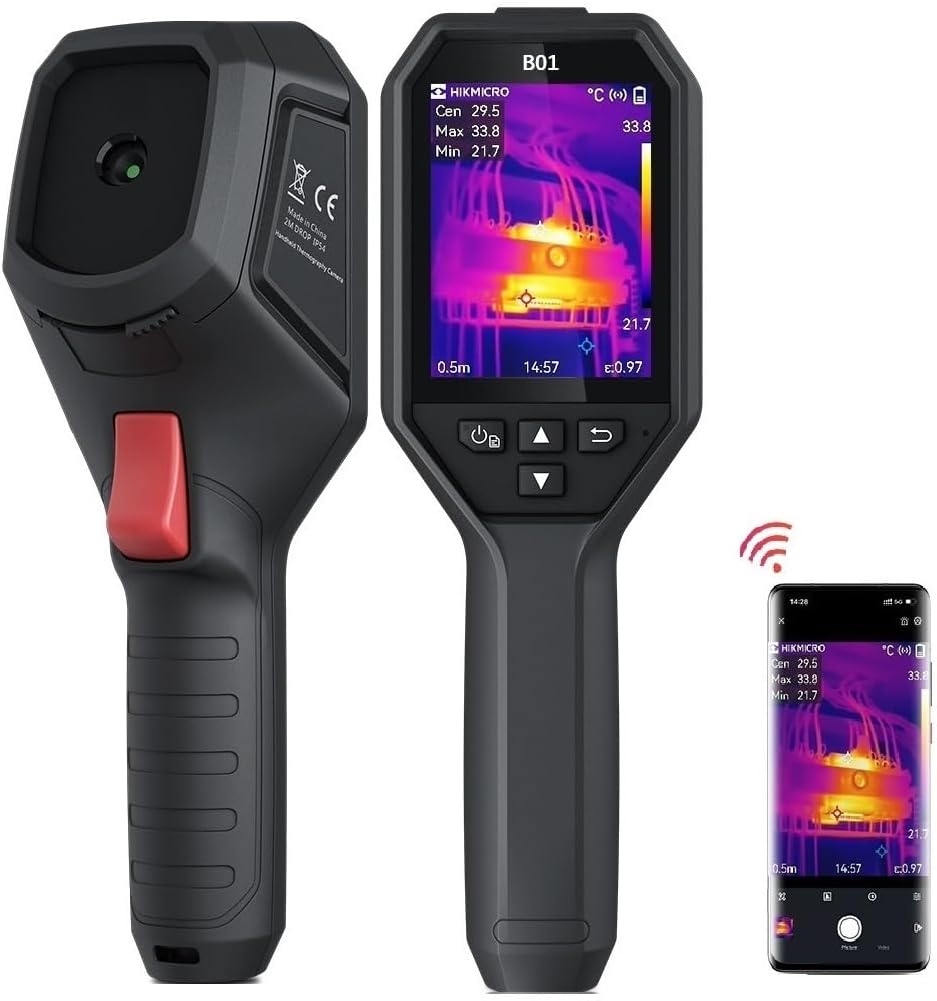

HIKMICRO B01 Thermal Imaging Camera

The HIKMICRO B01 thermal camera offers exceptional clarity and precision for a wide range of inspection needs. Leveraging HIKMICRO's SuperIR technology, it upscales thermal images from 256x192 (49,152 pixels) to a high-definition 320x240 (76,800 pixels) resolution. With a thermal sensitivity of less than 40mK and thermal accuracy at ±2 °C or ±2%, this camera provides detailed thermal imaging with center point and max/min temperature readings.

Key Features

• Super High Resolution: Upscales thermal images from 256x192 to 320x240 for enhanced detail.
• High Accuracy: Thermal accuracy of ±2 °C or ±2% with < 40mK thermal sensitivity.
• Fast Refresh Rate: 25Hz frame rate ensures smooth thermal video.
• Wide Temperature Range: Measures temperatures from -4°F to 1022°F (-20°C to 550°C).
• WiFi Connectivity: Connects to mobile devices via WiFi and the HIKMICRO Viewer App for live streaming to up to 3 tablets, image capture, remote rule editing, and easy image transfer.
• Compact and Feature-Rich: Includes powerful PC software for batch analysis and report generation.
• Long Battery Life: Built-in Li-Ion battery provides up to 6 hours of continuous operation.
• Alarms: High and low temperature alarms with visual and audible alerts.
• Color Palettes: Six different color palettes to suit various working environments.
• Cast Screen Feature: Stream live video to a laptop or computer for fixed inspections.

Ideal Applications

The HIKMICRO B01 is perfectly suited for:

• Detecting missing insulation and air leaks.
• Identifying water leakage.
• Facility maintenance and management.
• HVAC troubleshooting.
• Electrical troubleshooting and mechanical heat problem finding.

Warranty and Support

Enjoy peace of mind with HIKMICRO's comprehensive warranty and support:

• 2 Years for Battery
• 3 Years for the Entire Device
• 10 Years for the Sensor
• Lifetime Firmware Updates
• Technical Support and Local Recalibration Service
