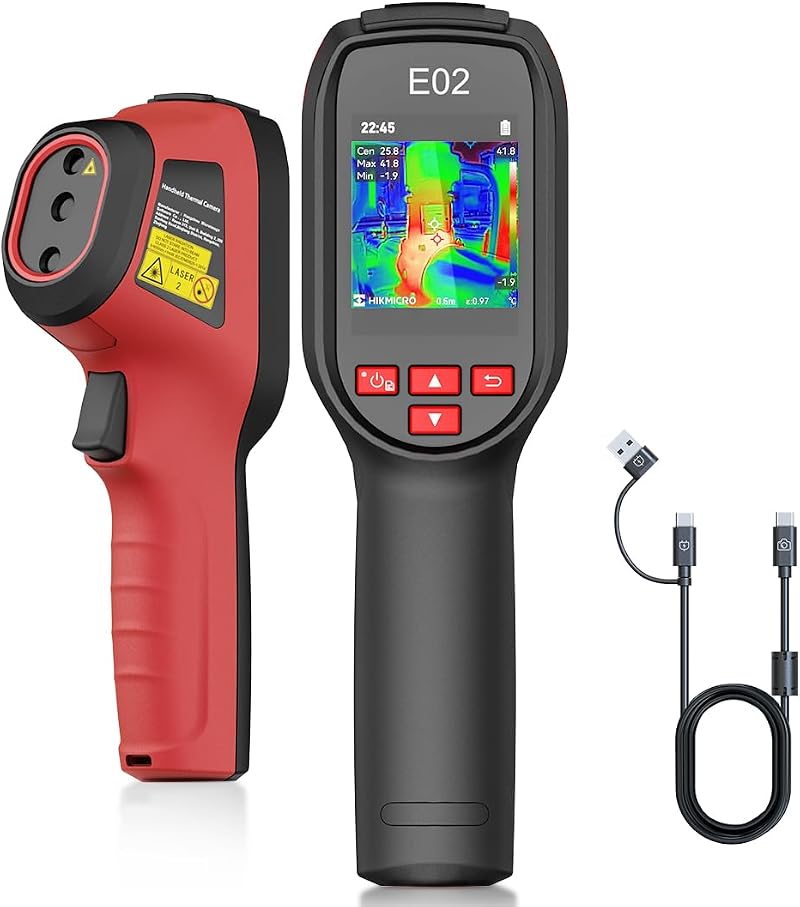

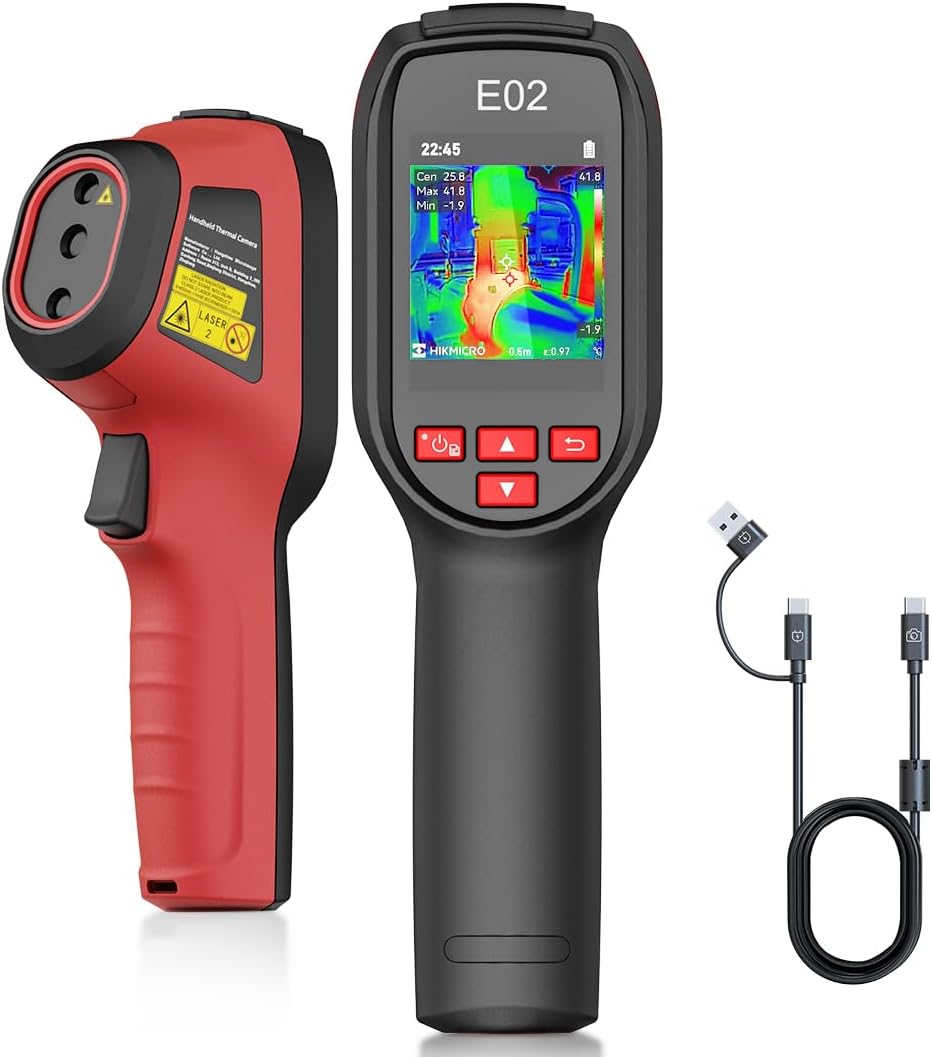

HIKMICRO E02 Thermal Camera 240x240 IR SuperIR Visual Camera Laser -20C to 400C

HIKMICRO E02 Thermal Camera

The HIKMICRO E02 is a portable and compact thermal imaging camera designed for enhanced image quality and simplified thermal inspections. Its SuperIR technology upscales thermal resolution, while the built-in visible camera and high sensitivity provide detailed imagery.

Key Features

• SuperIR Technology: Upscales thermal resolution from 96 x 96 to 240 x 240 for high-definition images.
• Visible Camera: Integrated 0.3 MP visible camera for combined thermal and visual data.
• NETD: < 50mK for precise detection of temperature differences.
• Refresh Rate: 20Hz for smooth live viewing and photo capture.
• SuperScene Technology: Advanced deep learning simplifies detection of common home problems like water leaks and poor insulation.
• Accurate Temperature Reading: Detects temperature differences as small as 0.05℃ with ±2% accuracy. Adjustable emissivity and distance settings for various materials.
• Measurement Range: -20℃ to 400℃.
• Temperature Measurement Modes: Center, hot spot, and cold spot measurement with high-temperature alarm.
• Fusion Mode: Combines thermal and visible images with selectable color palettes for clear scene outlines.
• Ideal Applications: Detecting missing insulation, air leaks, water damage, HVAC anomalies, automotive, electrical, and mechanical failures.
• Compact and User-Friendly: Lightweight design with a simple operation interface.
• Battery Life: Up to 8 hours.
• Storage: Built-in 4GB memory card stores up to 3,000 images.
• Warranty: 2 Years for Battery, 3 Years for the Entire Device, 10 Years for the Sensor. Lifetime firmware updates and technical support.

What's Included

• Infrared thermal imaging camera *1
• USB A to USB C cable *1
• Quick start guideline *1
• Calibration certificate *1
