Agatige Fiber Optic Light Source 1310+1550nm Dual Wavelength Universal

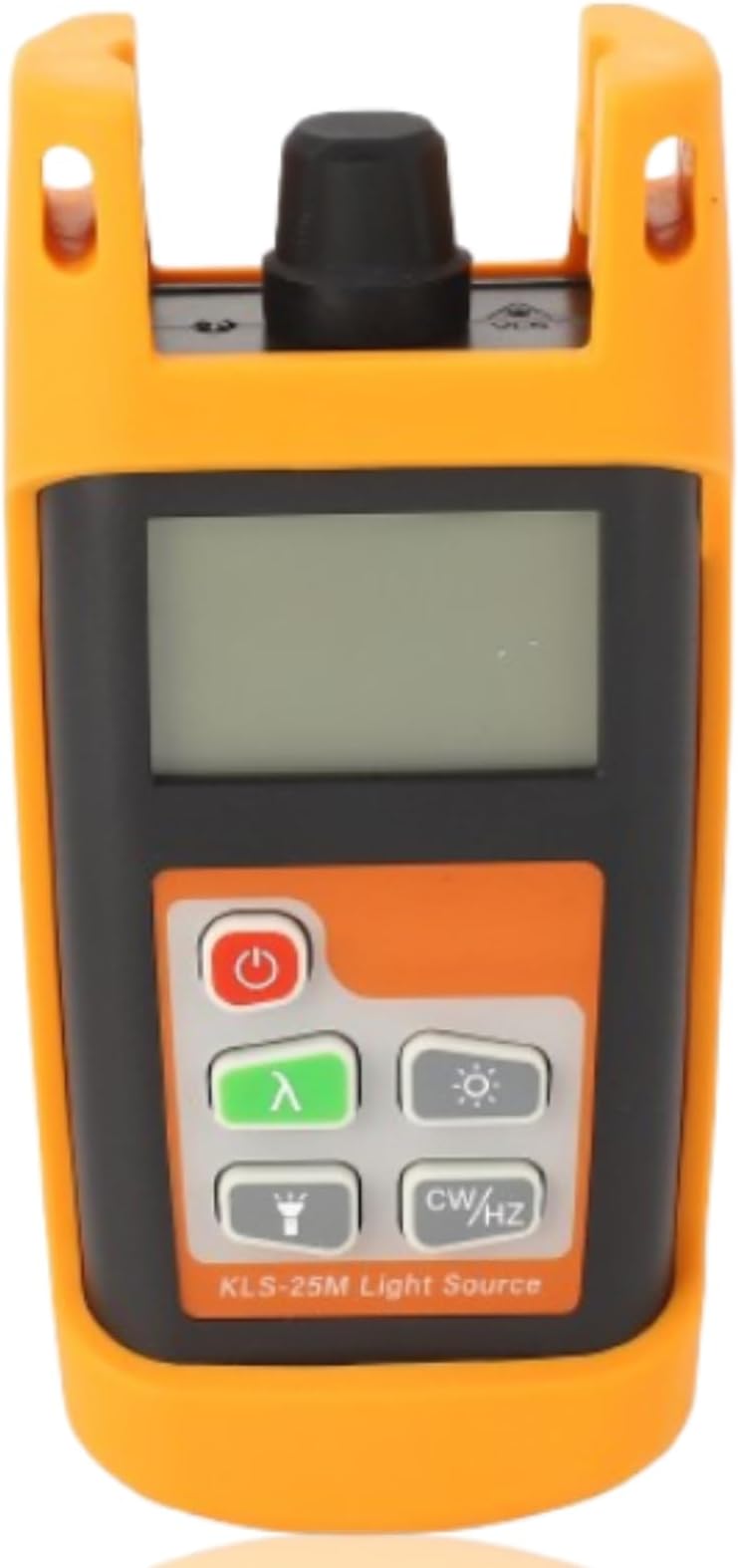

Agatige Fiber Optic Light Source

This Agatige Fiber Optic Light Source is designed for reliable and stable performance in telecommunications and cable TV maintenance. It features dual wavelength output and a universal optical connector for broad compatibility.

Key Features

• Built-in Optical Isolator: Ensures high stability of the dual wavelength output.
• Dual Wavelength Output: Operates at 1310nm and 1550nm with an output power of -5dB.
• Universal Optical Connector: Supports FC/SC 2.5mm interfaces.
• RJ45 Testing Support: Includes functionality for RJ45 cable testing.
• Simultaneous Display: Shows both linear mW and non-linear dBm index.
• Modulation Frequency: Offers CW, 270Hz, 1KHz, 2KHz.
• Long Working Time: Can operate continuously for up to 46 hours.
• Portable Design: Handheld and easy to carry for field use.
• High Detection Accuracy: Made with practical and durable high-quality materials for precise testing.

Specifications

• Brand: Agatige
• Wavelength: 1310nm + 1550nm
• Output Power: -5dBm
• Connector: FC/SC 2.5mm Universal
• Modulation Frequency: CW, 270Hz, 1KHz, 2KHz
• Battery Life: Up to 46 hours continuous operation

This fiber optic light source is ideal for various fiber optic measurements and maintenance tasks in telecommunications and cable TV networks.
