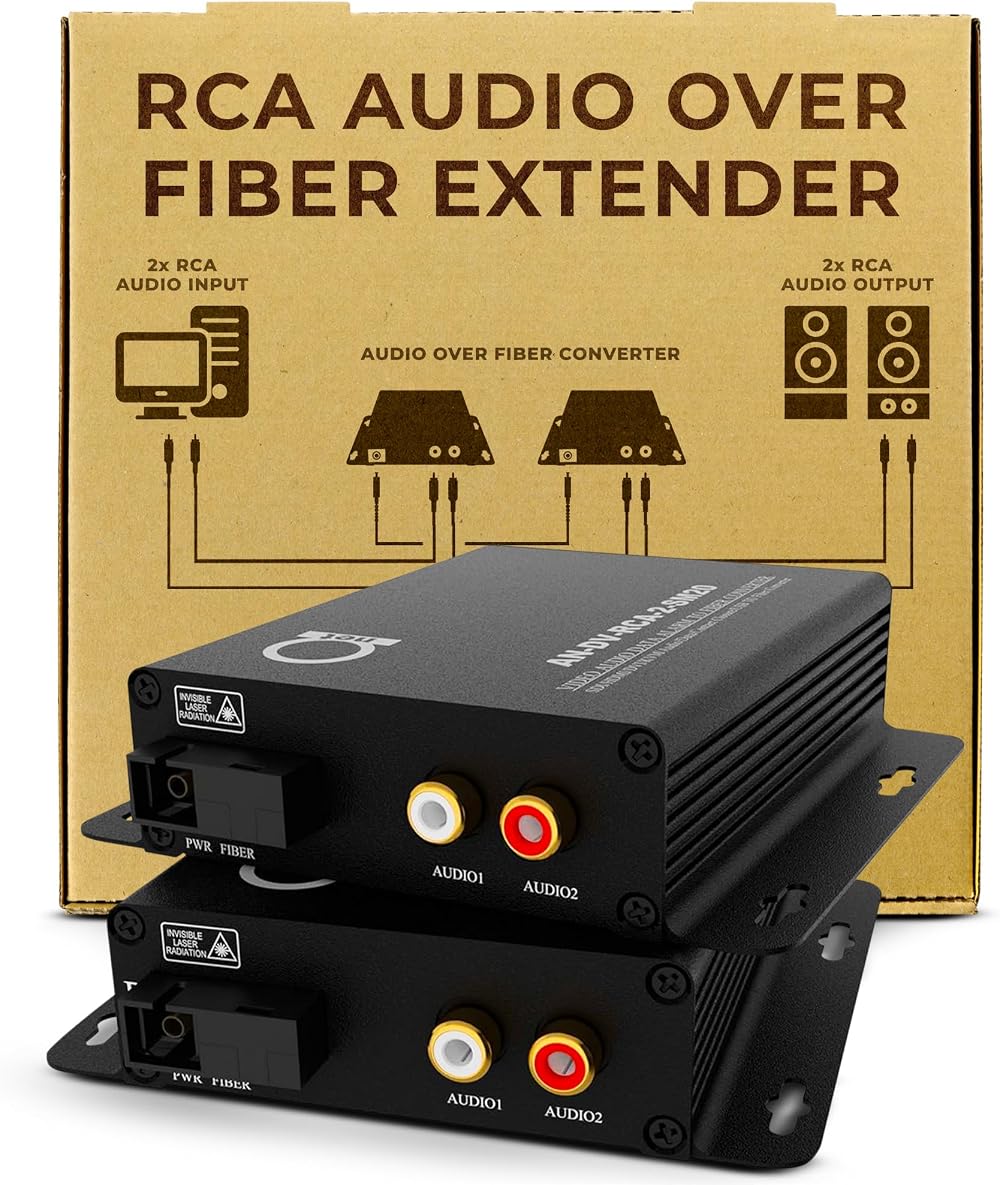

ADNET RCA Audio Fiber Converter Extender Kit 2 Ch L/R Stereo Single Mode SM 2km

ADNET RCA Audio Over Single Mode Fiber Converter Extender Kit

This ADNET audio extender kit supports 2 Channels (L+R) or 2 independent RCA audio channels of 24-bit digitally encoded broadcast quality audio over one Single Mode optical fiber. Ideal for staging, theaters, stadiums, parks, broadcast, CCTV audio, and professional AV applications. Available for stand-alone, desktop, or wall-mounted installations. Uses SC UPC/PC connectors with Single Mode (SM) fiber optic cables.

Plug and Play design ensures easy installation and operation with no configuration or driver installation required. Features 2 simple LED indicators for fiber and power status monitoring.

The AD-net RCA L/R stereo/mono audio converter transmits analog stereo audio signals up to 1.24 miles (2 km) using a Single Mode (SM) fiber cable strand over 1310 nm. Each set includes a transmitter and a receiver unit. Connect to an RCA left/right analog stereo audio source and RCA stereo audio speakers or receiver. Alternatively, 2 separate mono RCA channels can be sent over the fiber independently.

Key Features

• Supports 2-Channel Stereo (L+R) or 2 Independent Mono RCA Audio
• Broadcast Quality 24-bit Digitally Encoded Audio
• Single Mode (SM) Fiber Optic Transmission
• Up to 1.24 miles (2 km) Transmission Distance
• 1310 nm Wavelength
• SC/UPC Connector Type
• Plug and Play Installation
• LED Indicators for Power and Fiber Status

Specifications

Fiber Optical Port

• Fiber Optic Wavelength: 1310 nm
• Distance: up to 1.24 miles (2 km)
• Output Power: -14 ~ -8dBm
• Fiber Type: 9/125 Single-Mode
• Rx Sensitivity: -30dBm
• Optical Connector Type: SC/UPC (blue)

Audio

• Input/Output Impedance: 600ohm
• Max Input/Output Voltage: 3.0Vp-p
• Frequency Response: 10Hz ~ 29KHz @+/- 30 dB
• SNR: >70 dB
• Connector: RCA

Other

• Operating Temperature: -20°C - +75°C
• Dimensions: 104x104x28 mm (4.09x4.09x1.1 inches)
• MTBF: >100,000 hours
• Power Consumption: <5W
