DollaTek Ramps 1.6 Control Board 4-Layer Expansion Mainboard for 3D Printer

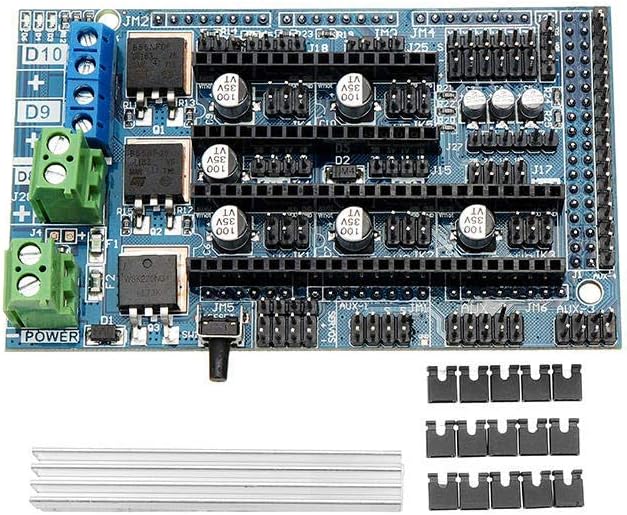

DollaTek Ramps 1.6 Control Board

The DollaTek Ramps 1.6 is an optimized 4-layer control panel mainboard, built upon the foundation of Ramps 1.5. It offers enhanced connectivity and improved heat dissipation for your 3D printer projects.

Key Features

• Optimized design based on Ramps 1.5 with new 2-pin connectors for simpler and more robust connections.
• Integrated heatsink above the MOS tube for superior heat dissipation.
• Higher power capacity compared to Ramps 1.5, supporting up to 270W.
• 4-layer board construction for enhanced stability and functionality.
• Expandable with LCD screens and other components.
• Features heater and fan MOSFET outputs.
• Includes 3 thermistor interfaces.
• Equipped with 5A additional security and component protection fuses.
• Heated bed controls feature additional 11A fuses.
• Supports the connection of 5 Pololu stepper drive boards simultaneously.
• Pololu plate pin sockets allow for easy replacement or future design upgrades.
• I2C and SPI pins are available for future expansion capabilities.
• Gold-plated servo connectors (rated 3A) for connecting limit stops, motors, and LEDs.
• LED indicator illuminates when the heater has output.
• Designed to connect 2 motors for the Z Prusa Mendel configuration.

Specifications

• Size: 101.5 x 60.5mm
• Supported Motor Drivers: A4988, DRV8825, and other motor drivers (supports five motor drivers simultaneously)
• Input Voltage: 12V
• Power: 200W
• Patch MOS Tube: B55NF06

Important Notes

• When using TMC2100 drivers, do not insert the short-circuit cap under the driver.
• TMC2130 drivers offer the quietest operation compared to other drivers when used with either Ramps 1.5 or Ramps 1.6 boards.

Package Included

• 1 x Ramps 1.6 Control Board
• 1 x Heatsink
